CIS Marine Horizontal Centrifugal Fire Pump

Description:

CIS type is kind of marine horizontal centrifugal fire pump applied  in industrial, urban, fire water supply and drainage, and can also be used for irrigation and drainage of farmland and orchards and so on. It adopts conveying water with temperature less than 100℃ and maximum working pressure not more than 1.6MPa or liquid with similar physical and chemical properties to clear liquid. In addition, CIS series fire pump has another model CISR which adpots hot water whose liquid temperature does not exceed 200℃, which has good performance parameters, convenient installation size and model, and is also suitable for marine boilers and hot water supply.

Features

1. Compact structure, this series of pumps is a horizontal structure, the pump is integrated, the appearance is beautiful, and the floor area is small. Compared with the ordinary horizontal pump, the floor area is reduced by 30%. If the IP54 outdoor motor is used, there is no need for a pump room, and it can be used outdoors.

2. Smooth operation, low noise and high concentricity of components. The motor and the pump are directly connected, which simplifies the intermediate structure and increases the stability of operation. The impeller has excellent dynamic and static balance, no vibration and low noise during operation, which prolongs the service life of the bearing and improves the operating environment.

3. The shaft seal adopts high-quality mechanical seal, and the dynamic and static rings are made of hard alloy, which is wear-resistant, leak-free and has a long service life.

4. Adopt advanced hydraulic model, which has the characteristics of high efficiency and good performance.

5. The structure is unique. There is a drain hole on the lower side of the pump body. The inlet and outlet methods are constructed by pressure holes, which can ensure the normal operation of the pump.

Pump data

Flows to

552(m³/h)

Heads to

191m

Efficiencies to

82%

Solids to

16 mm

Power to

200 kW

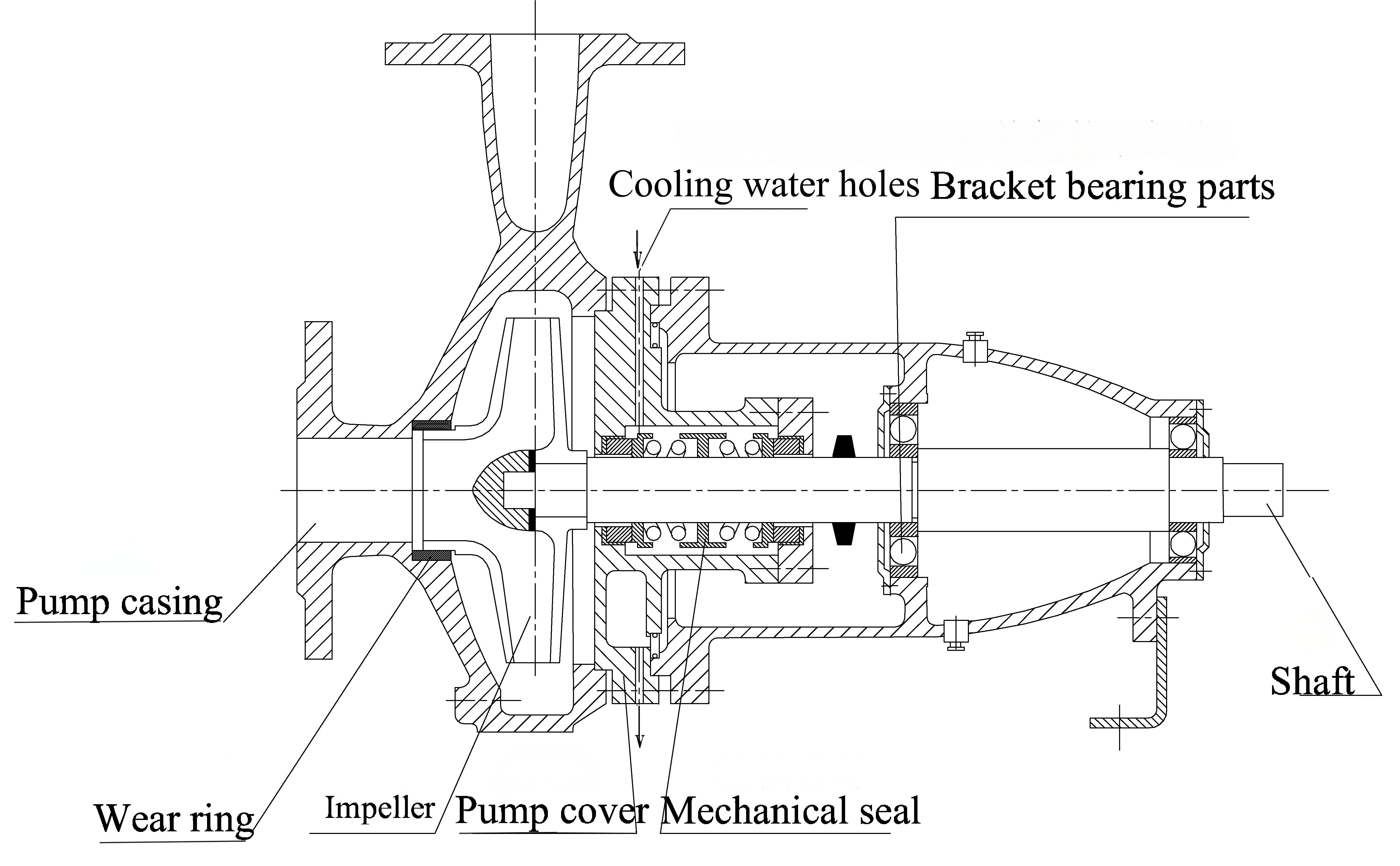

Picture of CIS Marine Horizontal Centrifugal Fire Pump:

The excellent design of our company's engineers, components made of high-quality materials can extend the life of the pump, reduce the frequency of maintenance, operation stability in complex environments, but it  also cause different prices. If you need more details about this, you can click on the news or send an email to ask us

Working conditions

1. The maximum working pressure of the pump system is 1.6MPa, that is, the suction port pressure of the pump + the pump head ≤ 1.6MPa (when the working pressure of the pump system is higher than 1.6MPa, it should be separately proposed when ordering, so that the overflow parts and The connecting parts are made of cast steel).

2. The conveying medium is clear water or other liquids with physical and chemical properties similar to clear water (if the conveying medium has fine particles, it should be separately proposed when ordering, so that the wear-resistant mechanical seal can be assembled).

3. The ambient temperature should not exceed 40℃, the altitude should not exceed 1000m, and the relative humidity should not exceed 95%.

Model description

Main technical parameter

Precautions for use

1. The maximum working pressure of the pump and the connected pipeline is ≤1.6MPa, and the pressure at the suction port of the pump + the pump head is ≤1.6Mpa. (If the working pressure of the pump system is greater than 1.6MPa, it should be put forward separately when ordering, so that we can use cast steel for the over-current parts and connecting parts of the pump during manufacture).

2. The ambient temperature does not exceed 50°C, the altitude does not exceed 1000 meters, and the relative humidity does not exceed 95%.

3. The conveying medium is clear water or other liquids with similar physical and chemical properties to clear water. (The conveying medium contains fine particles, which should be specified separately when ordering, so that we can assemble the wear-resistant mechanical seal.)

4. Before installing the pump, carefully check whether there are hard objects (such as stones, iron particles, etc.) in the pump flow channel that affect the operation of the pump, so as to avoid damage to the impeller and pump body when the pump is running.

5. The weight of the pipeline should not be added to the pump during installation, and there should be their own support bodies to avoid the deformation of the pump and affect the running performance and life.

6. The anchor bolts must be tightened during installation to avoid the impact of vibration on the pump performance during startup.

7. For the convenience of maintenance and safe use, a regulating valve is installed on the inlet and outlet pipelines of the pump and a pressure gauge is installed near the pump outlet to ensure the operation within the rated head and flow range, to ensure the normal operation of the pump and the growth of the pump. service life of the pump.

8. After installation, turn the pump shaft, the impeller should have no friction noise or stuck phenomenon, otherwise the pump should be disassembled to check the cause.

Model Explanation:

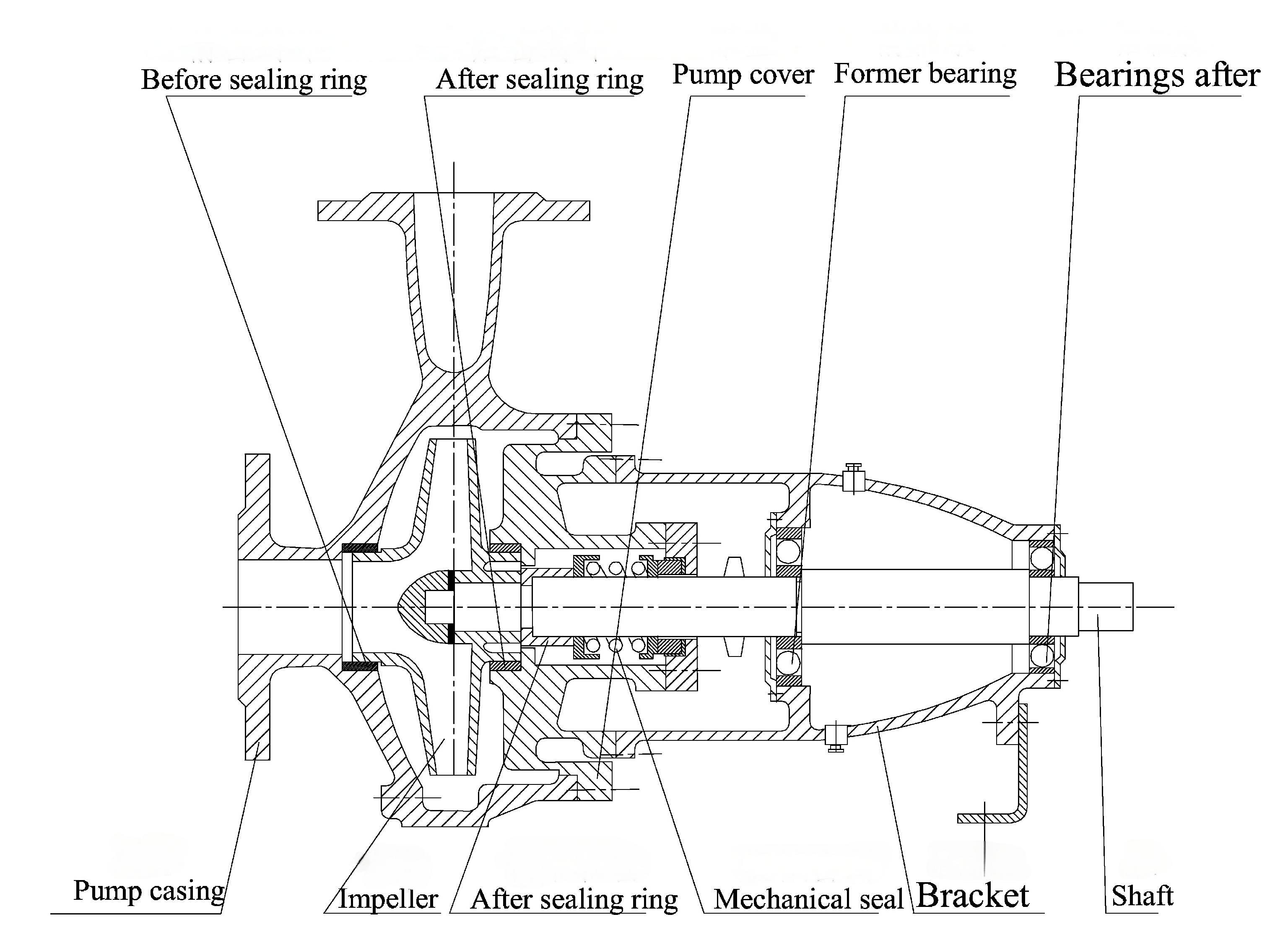

Picture of CIS type is kind of marine horizontal centrifugal fire pump	Detail-CIS (R),CIH80-65 -160A(B, C)
	CIS—Marine centrifugal pump
	R—Hot water
	80—Inlet diameter 80mm
	65—Outlet diameter 65mm
	160—Impeller diameter 160mm
	160—Impeller diameter 160mm

Parameter of CIS Marine Horizontal Centrifugal Fire Pump:

(In addition, please provide the parameter of the marine pump you need and we can customize the suitable type for you.)

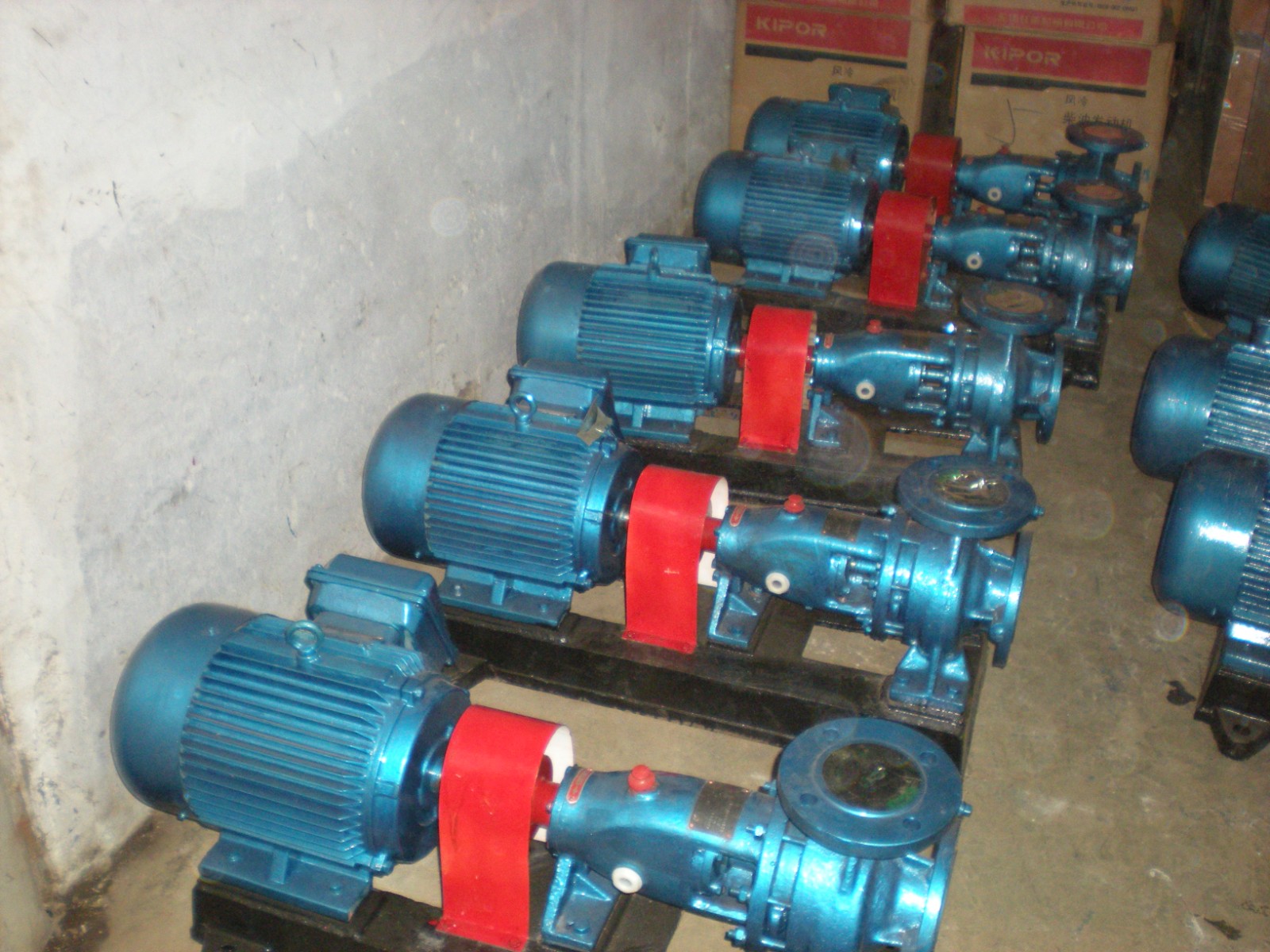

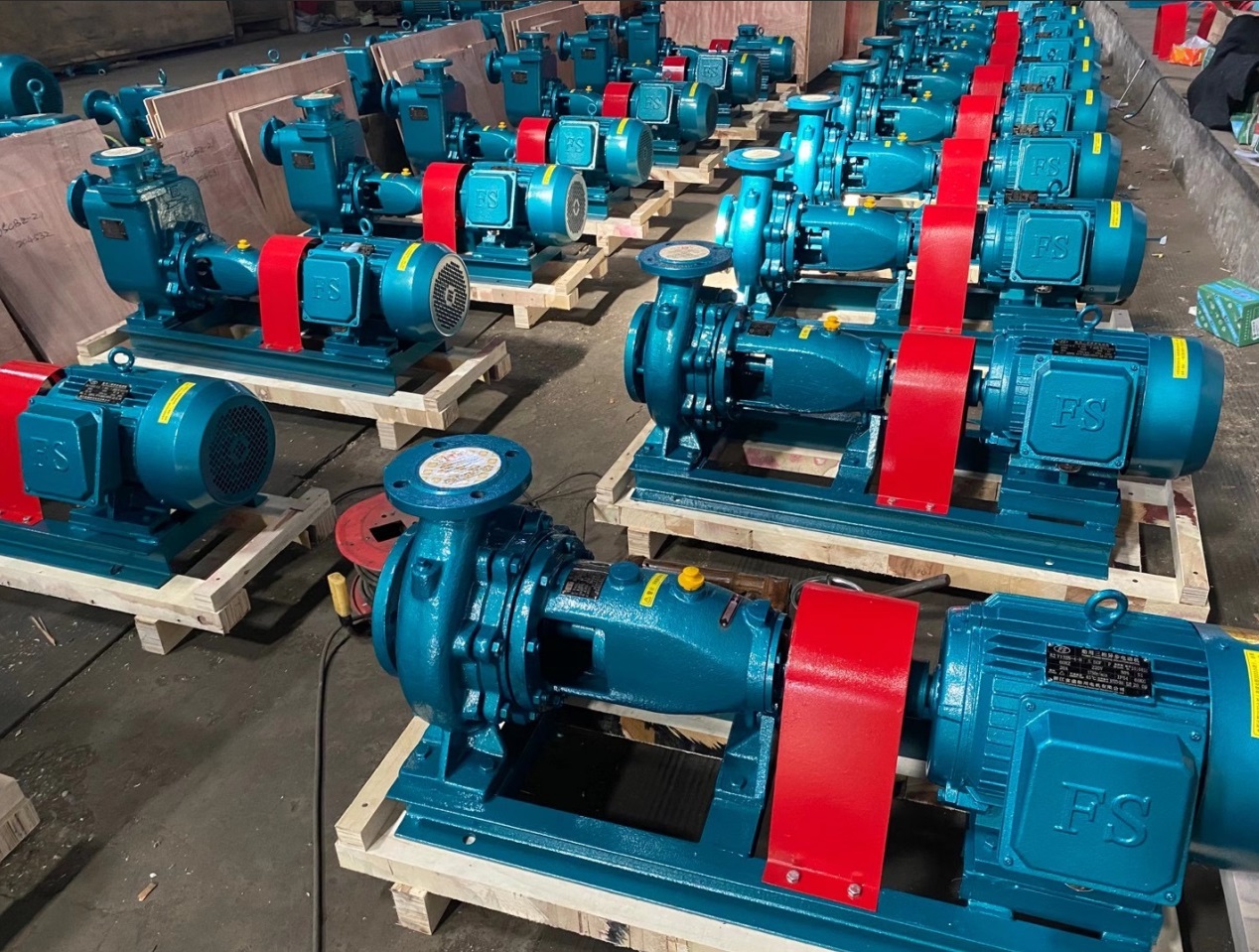

Photo of CIS Marine Horizontal Centrifugal Fire Pump:
