CLZ Marine Vertical Fire Pump

Overview

CLZ Series marine vertical self-priming centrifugal fire pump which is transmission medium temperature is not higher than 80℃ has the advantages of small volume, light weight, good self-priming performance, convenient installation and operation, etc. And it is widely appllied for bilge pump, ballast pump, fire pump, cooling pump and other equipment supporting the use of.

Certificate: CCS,etc.

Product use

It is  used for pressurized water supply in fire system pipelines. It can pressurize and supply water to fire system pipelines in various occasions, such as fire hydrant fire extinguishing system, automatic sprinkler fire extinguishing system and water spray fire extinguishing system.

The excellent design of our company's engineers, the components made of high-quality materials can make the pump have longer service time, lower maintenance frequency, and higher operating stability in complex environments, but it can also generate different prices.If you need more details about this, you can click on the news or send an email to ask us

Model Explanation:

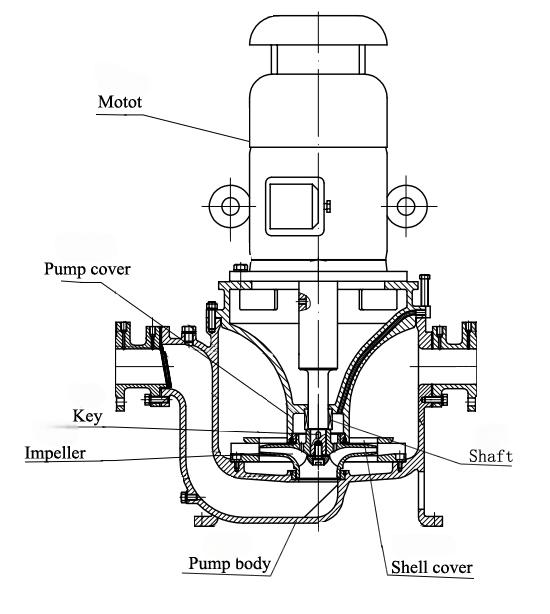

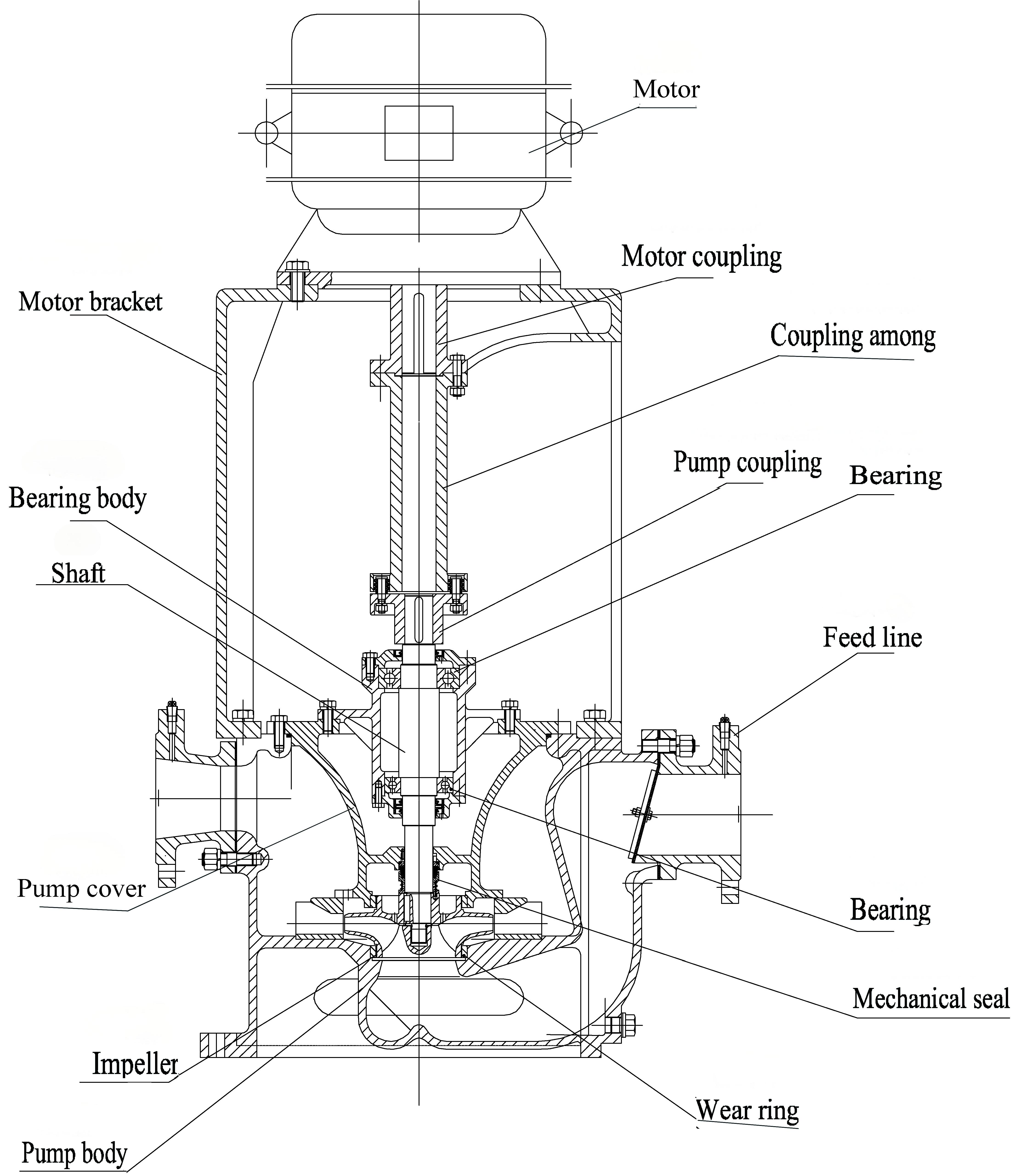

Picture of CLZ Series marine vertical self-priming centrifugal fire pump	Explanation detail-100CLZ-13A
	100—Inlet and outlet diameter 100 mm
	CLZ—Marine vertical self-priming centrifugal pump
	12—Specific speed divided by 10
	A(B)—Impeller processed with 1(2)time cutting

Parameter of CLZ marine vertical fire pump:(The following are only the partial parameters.In addition, please provide the parameter of the marine pump you need and we can customize the suitable type for you.)

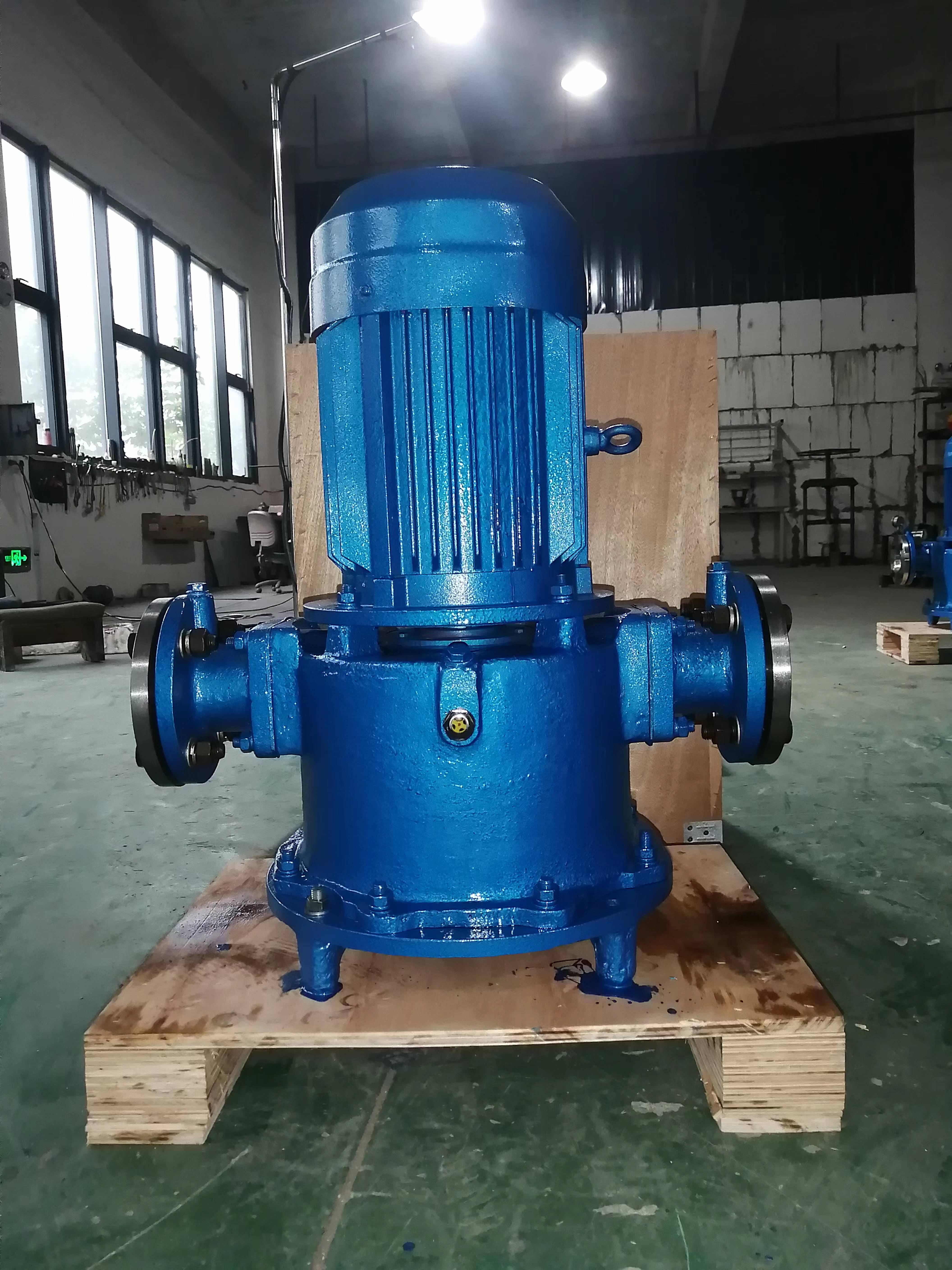

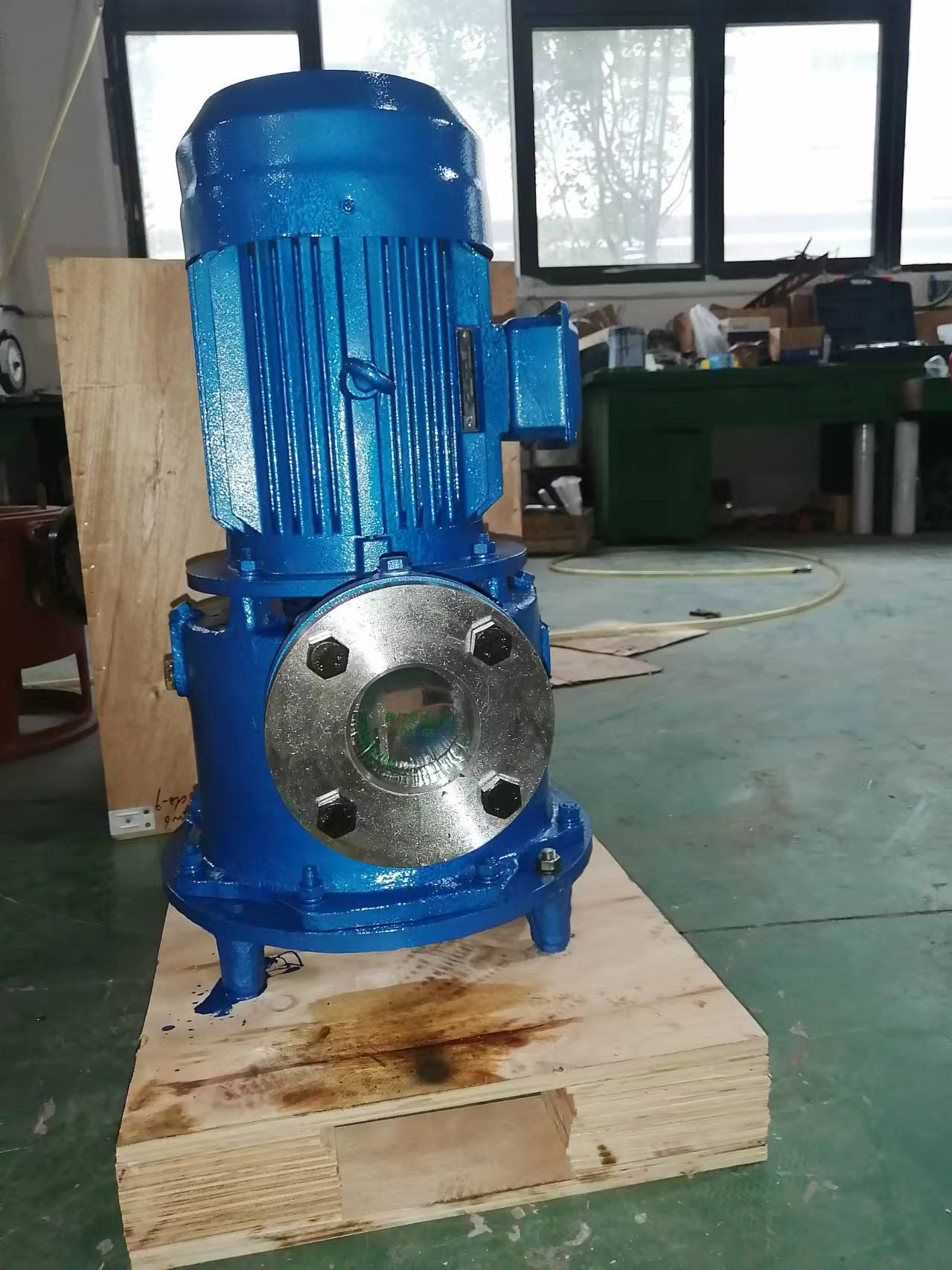

Photo of CLZ marine vertical fire pump:

Precautions for use

1. The maximum working pressure of the pump and the connected pipeline is ≤1.6MPa, and the pressure at the suction port of the pump + the pump head is ≤1.6Mpa. (If the working pressure of the pump system is greater than 1.6MPa, it should be put forward separately when ordering, so that we can use cast steel for the over-current parts and connecting parts of the pump during manufacture).

2. The ambient temperature does not exceed 50°C, the altitude does not exceed 1000 meters, and the relative humidity does not exceed 95%.

3. The conveying medium is clear water or other liquids with similar physical and chemical properties to clear water. (The conveying medium contains fine particles, which should be specified separately when ordering, so that we can assemble the wear-resistant mechanical seal.)

4. Before installing the pump, carefully check whether there are hard objects (such as stones, iron particles, etc.) in the pump flow channel that affect the operation of the pump, so as to avoid damage to the impeller and pump body when the pump is running.

5. The weight of the pipeline should not be added to the pump during installation, and there should be their own support bodies to avoid the deformation of the pump and affect the running performance and life.

6. The anchor bolts must be tightened during installation to avoid the impact of vibration on the pump performance during startup.

7. For the convenience of maintenance and safe use, a regulating valve is installed on the inlet and outlet pipelines of the pump and a pressure gauge is installed near the pump outlet to ensure the operation within the rated head and flow range, to ensure the normal operation of the pump and the growth of the pump. service life of the pump.

8. After installation, turn the pump shaft, the impeller should have no friction noise or stuck phenomenon, otherwise the pump should be disassembled to check the cause.
