Civil Silent Portable Centrifugal Pump
Date：2022-05-30Views：
Civil Silent Portable Centrifugal Pump
Application:
FCm series centrifugal pump is a compact water supply system, suitable for domestic water supply, equipment matching, pipeline increase and decrease, vegetable greenhouse watering, garden watering, aquaculture, industrial and mining, enterprise and high-rise building water supply, drainage, central air conditioning and central heating ring system and other occasions.

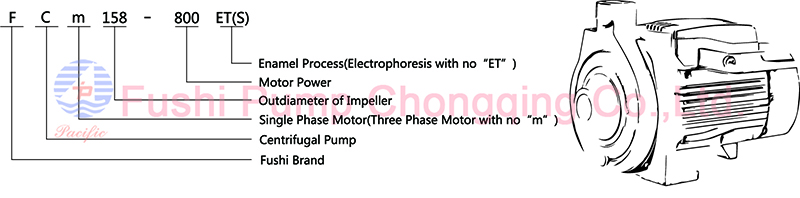

Model Description of Civil Silent Portable Centrifugal Pump:
Model selection of Civil Silent Portable Centrifugal Pump:
Model | Voltage | Max Capacity (m³/h) | Max Head (m) | Rated Capacity (m³/h) | Rated Head (m³/h) | Pipe Dia. (mm) | Protection Class |
FCm114-200ET(S) | 220V/50Hz | 6.0 | 15 | 3.0 | 10 | 25 | IP44 |
FCm128-600ET(S) | 220V/50Hz | 6.0 | 20 | 3.0 | 14 | 25 | IP44 |
FCm158-800ET(S) | 220V/50Hz | 8.0 | 35 | 4.0 | 25 | 25 | IP44 |
FCm152-1100ET(S) | 220V/50Hz | 14.0 | 30 | 7.0 | 25 | 40 | IP44 |

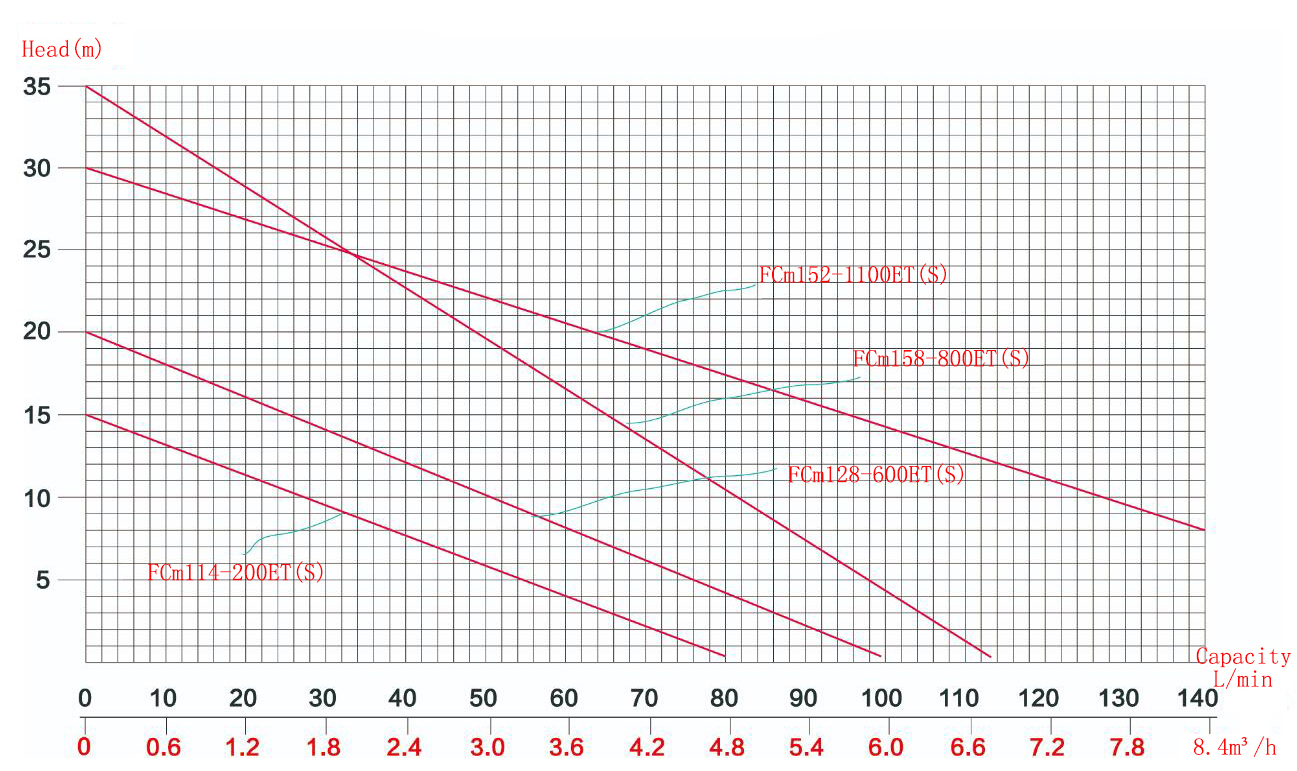

Performance Curve of Civil Silent Portable Centrifugal Pump:
Model | Power (W) | Capacity (L/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
FCm114-200ET(S) | 200 | Head(m) | 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7.5 | 6.5 | 9 |
FCm128-600ET(S) | 600 | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | 10 | |
FCm158-800ET(S) | 800 | 35 | 33.5 | 32 | 30.5 | 29 | 27.5 | 26 | 24.5 | 23 | 21.5 | 20 | |
FCm152-1100ET(S) | 1100 | 30 | 29.4 | 28.7 | 28 | 27.4 | 26.7 | 26 | 25.4 | 24.8 | 24.2 | 23.5 |

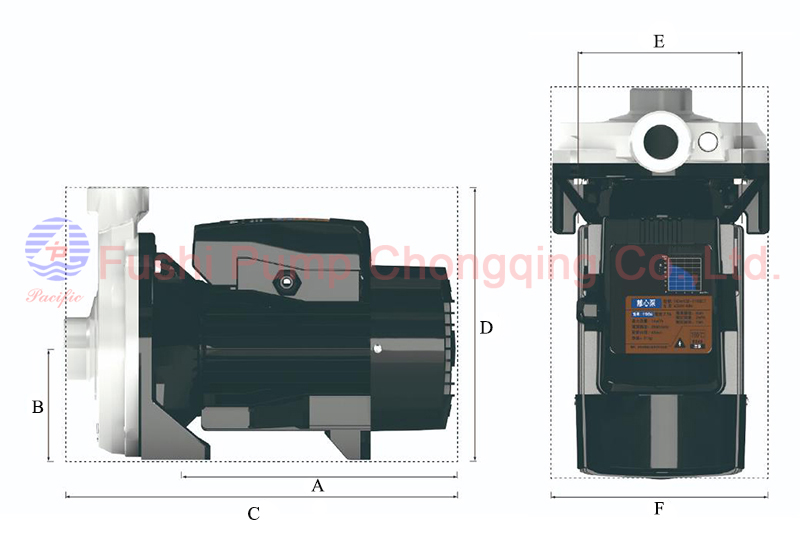

Installation Size of Civil Silent Portable Centrifugal Pump:
Model | A(cm) | B(cm) | C(cm) | D(cm) | E(cm) | F(cm) |
FCm114-200ET(S) | 19 | 9 | 28 | 22 | 12 | 17 |
FCm128-600ET(S) | 19 | 9 | 28 | 22 | 12 | 17 |
FCm158-800ET(S) | 22 | 10 | 33 | 24 | 14 | 19 |
FCm152-1100ET(S) | 25 | 12 | 34 | 29 | 15 | 21 |
Conditions of Use:
The pump should be able to work continuously and normally under the following conditions of use:
1. Medium temperature 0~100℃;
2. The PH of medium between 6.5~8.5;
3. The volume ratio of solid impurities is not more than 0.1%, and the particle size is not more than 0.2mm;
4. The power frequency is 50Hz, the voltage is single-phase AC 220V, three-phase AC 380V, and the voltage fluctuation range is 0.9-1.1 times the rated value;
5. Protection class IP44;
6. When the temperature is lower than 0 ℃, the anti-freezing work should be done well. When not in use, the waterproof screw at the bottom of the pump body should be opened to drain the accumulated water in the pump body to avoid freezing and cracking of the pump body.
Note: Before using, it must be ensured that the pipeline does not leak.
