Automatic Hot & Cold Water Jet Pump

Description:

This series of electric pumps are treated by our company with a unique high-tech anti-rust treatment for the working space of the pump to ensure that the water space will never rust, and to solve the problems of rust, rusty water, unclean and unsanitary food in the pump, and at the same time It can be used in hot water, widely used in river water, well water, boiler, textile industry and household water supply, such as garden, canteen, bathhouse, hair salon and high-rise residential water (transporting liquid is clear water).

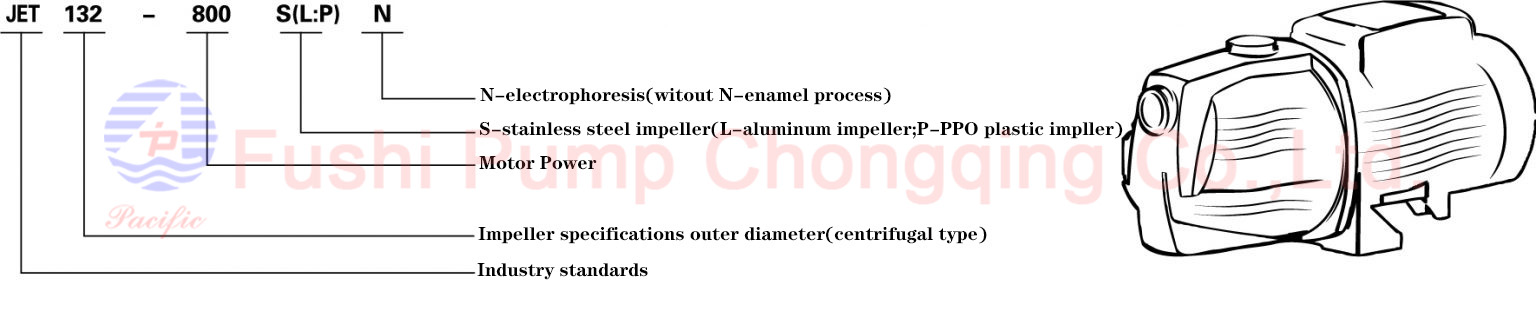

Model detail:

Quick Details：

Customized support: OEM, ODM

Model Number: JET Series

Application: Family Homes, Irrigation and Agriculture

Horsepower: 0.5-2hp

Power Source: Electric

Pressure: high pressure

Structure: Single-stage Pump

Outlet Size: 40mm

Voltage: 220/ 380V, 50Hz

Certification: CE

Product name: water jet pump

Usage: Water

Feature: Quiet, Clean, Powerful

Supply Ability: 60000 Piece/Pieces per Month

Packaging & Delivery: Packed by carton. 1pc per carton.

Port: NINGBO

Lead Time: Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 30 To be negotiated

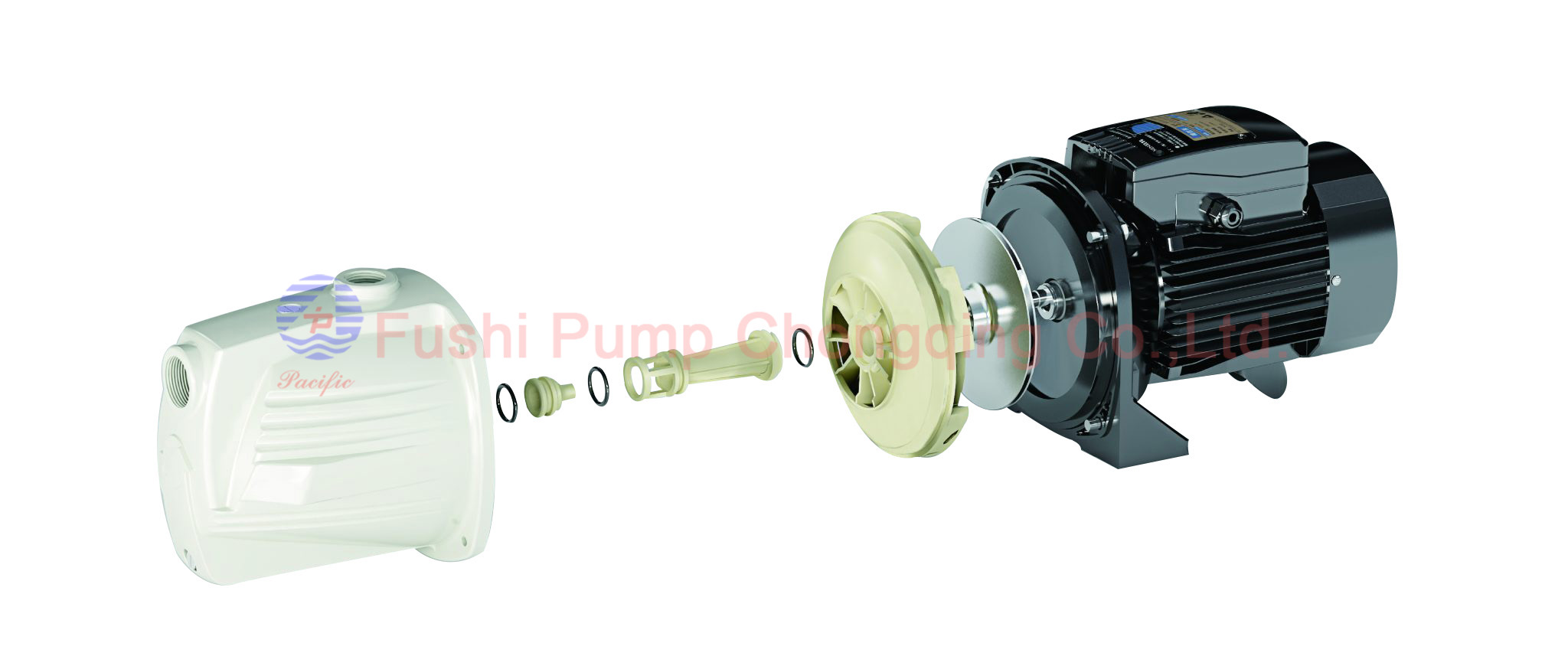

Innovative technology:

1. Ultra-high suction lift: The maximum suction lift height is 9.8 meters, which is suitable for users with low water level.

2. Super high quality: The guide parts are made of PPO alloy, which can meet the high water temperature of 70ºC.

3. Electrostatic spraying: The surface of the shell is colored with electrostatic spraying technology, which has stronger anti-oxidation and anti-corrosion ability.

4. Low noise and high efficiency: optimize the fluid structure, reduce noise, and do not interfere with the daily life of users

Specification:

1. The temperature of JET type conveying medium does not exceed 0-70℃

2. The PH value of the medium is between 6.5 and 8.5

3. The volume ratio of solid impurities is not more than 0.1%, and the particle size is not more than 0.2mm

4. The power frequency is 50Hz, the voltage is single-phase AC 220V, three-phase AC 380V, and the voltage fluctuation range is 0.9-1.1 times the rated value

5. Protection grade IP44

6. When the temperature is lower than 0℃, the antifreeze work should be done well. When not in use, the waterproof screw at the bottom of the pump body should be opened to drain the accumulated water in the pump body to avoid freezing and cracking of the pump body.

Note: Before using the automatic type, it must be ensured that the pipeline does not leak

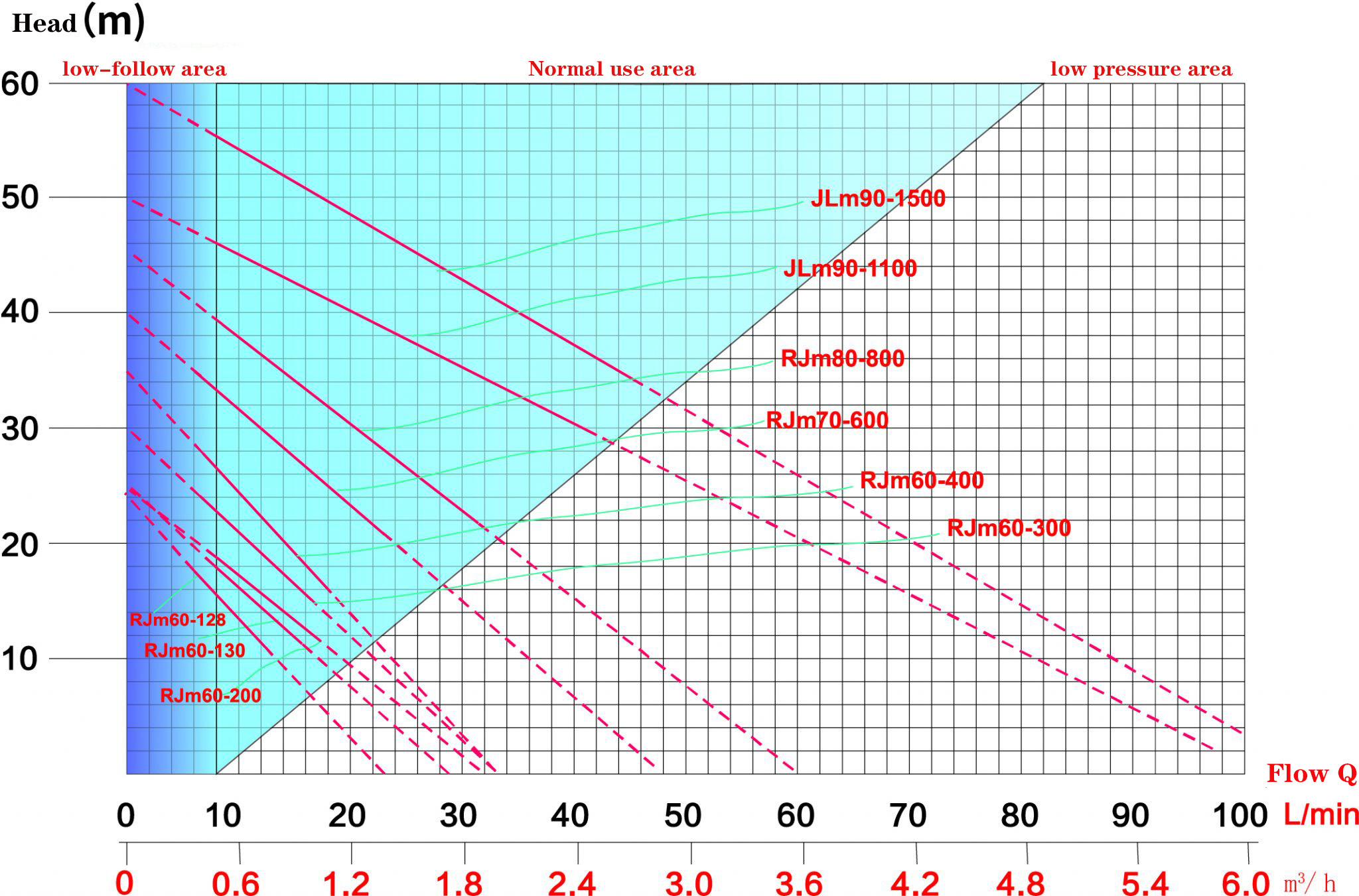

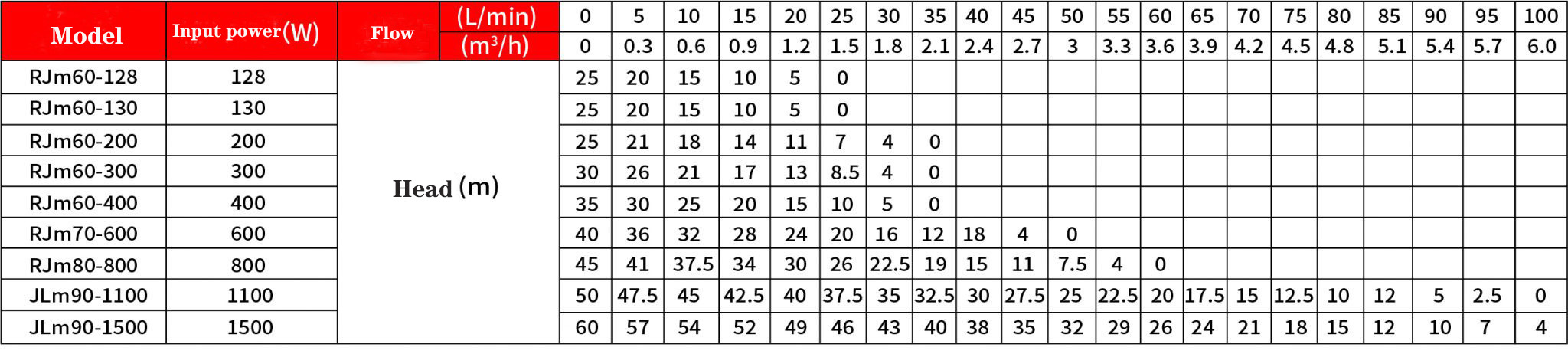

The head parameter:

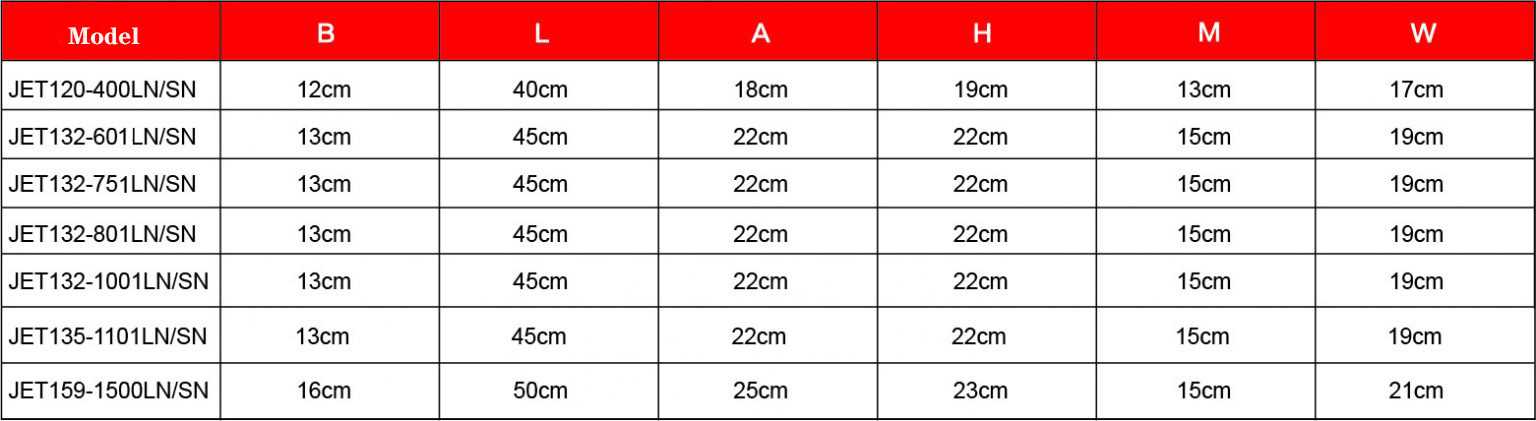

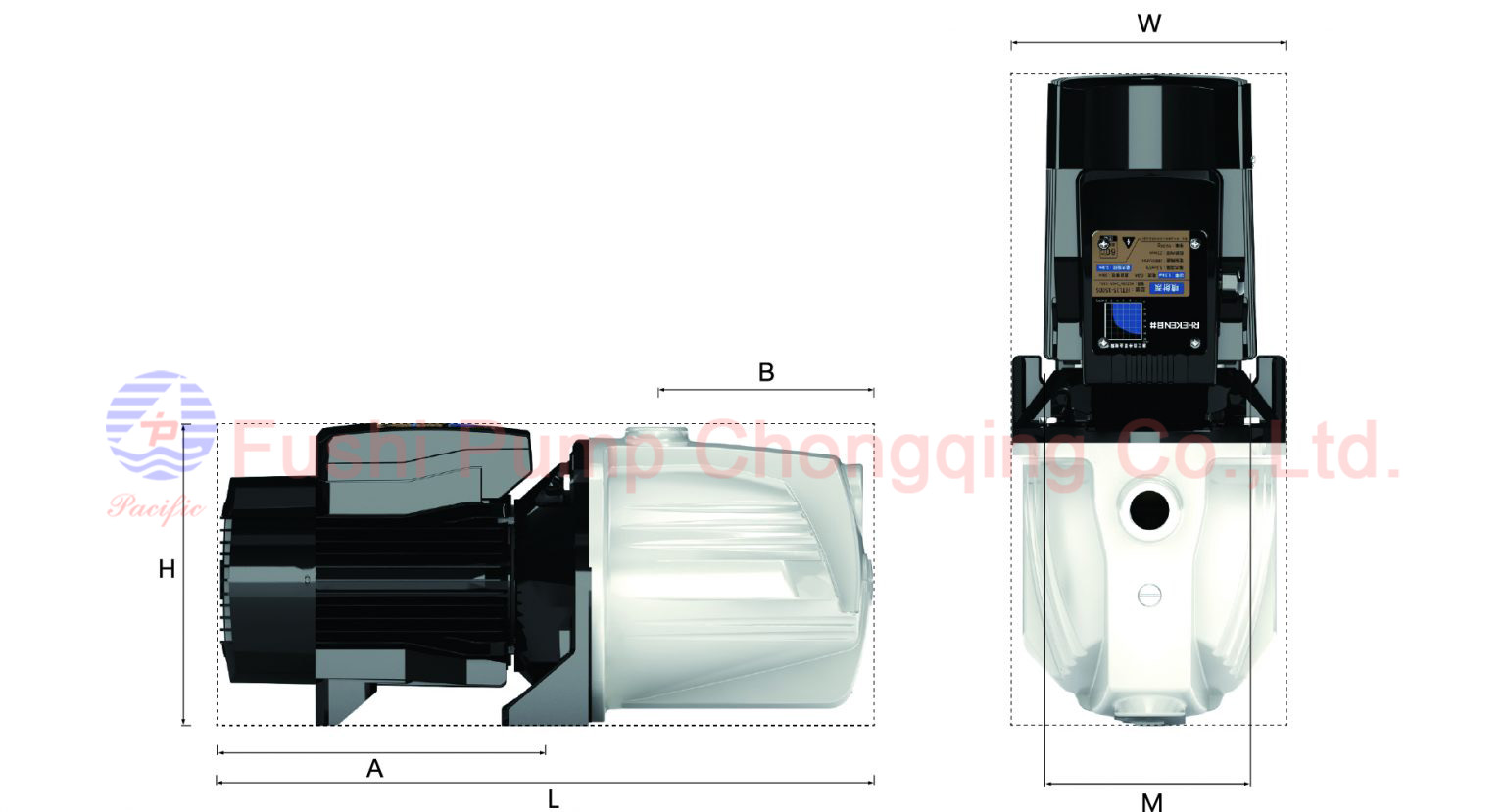

Model size:

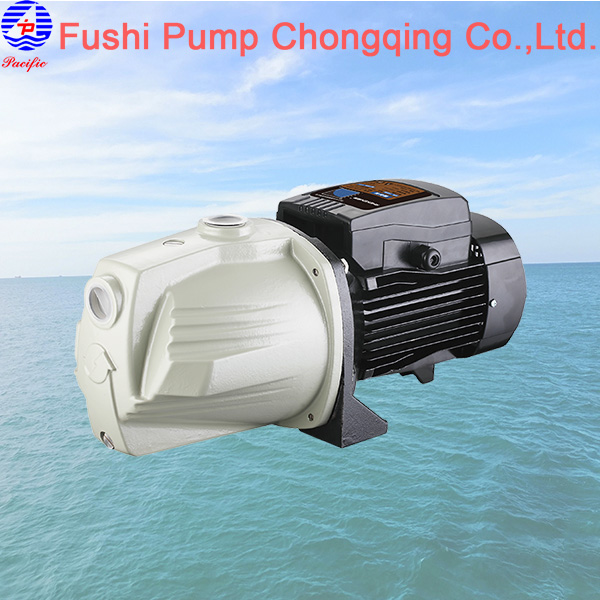

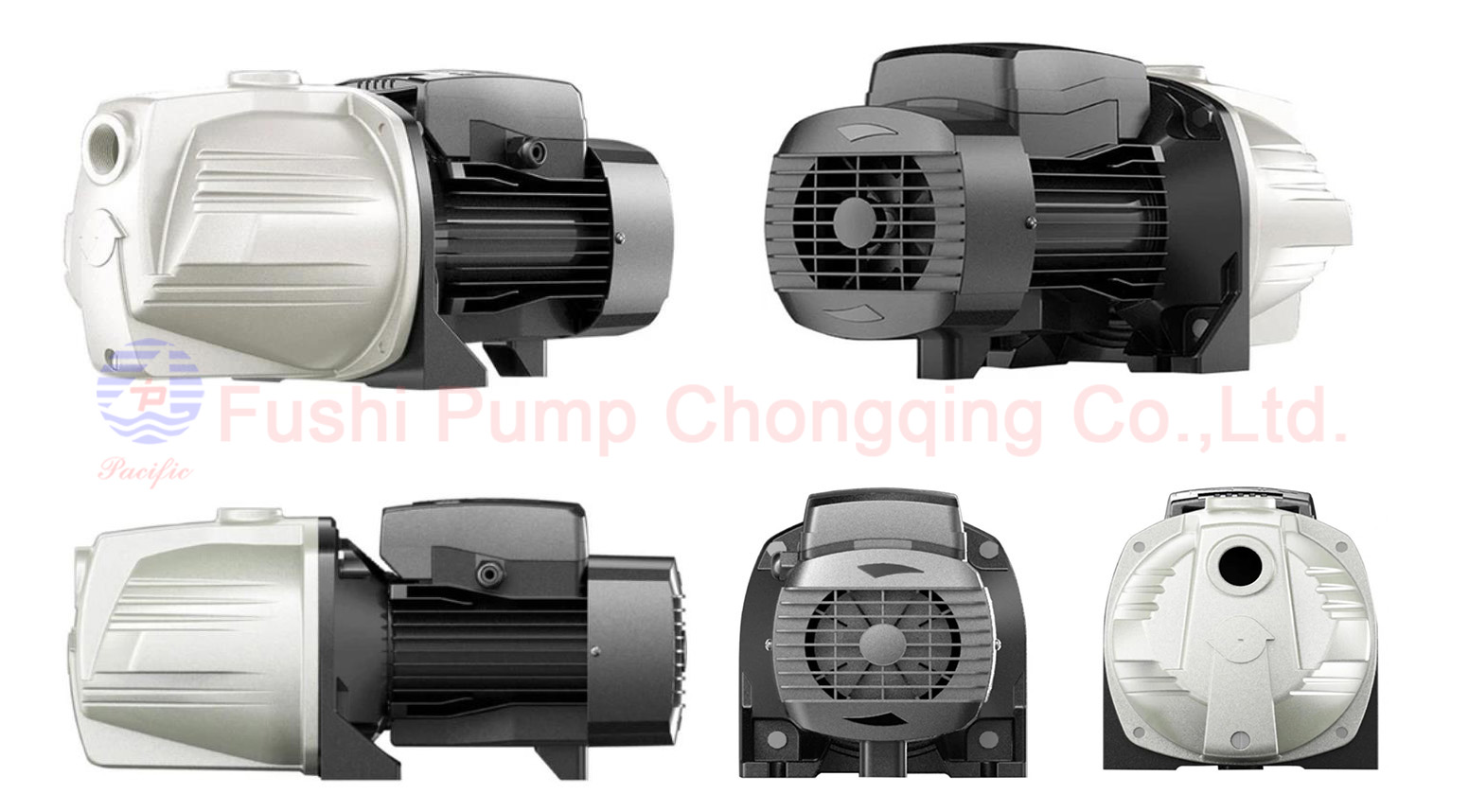

The picture of automatic hot & cold water jet pump:
