DZ Series Marine Electric Piston Pump
Date：2025-03-10Views：
DZ Series Marine Electric Piston Pump
Overview
DZ Series marine electric piston pump without the transmission medium can be hard particles or fibers; the temperature is not higher than 85℃ water, fresh water, oil, drainage.

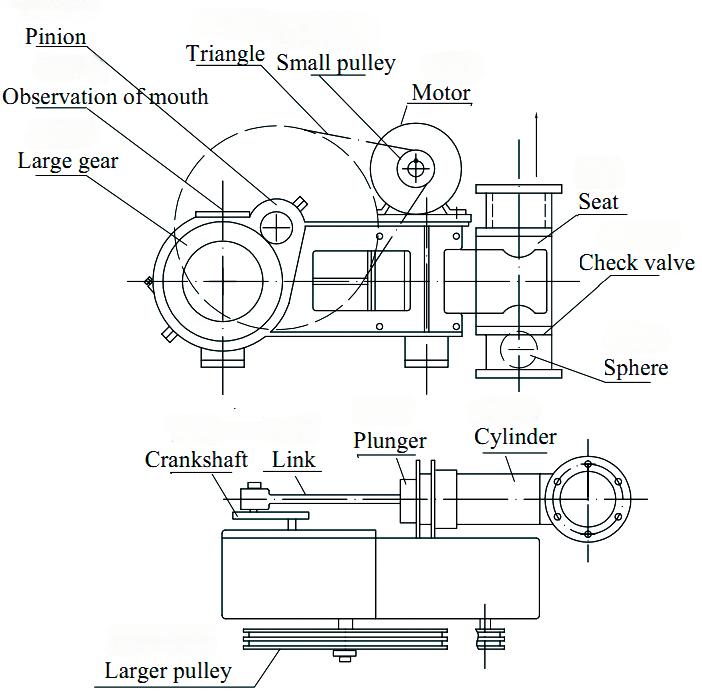

Structural Specifications
Performance Parameter （50HZ/380V）
Project | Type Unit | DZ-100 | DZ-250 | DZ-500 | DZ-1000 | DZ-2000 | DZ-3000 | DZ-4000 | DZ-5000 | DZ-104 |
Dishead | MPa | 0.19 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Discharge | m3/h | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | 10 |
Suction Head | m | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 6 |
Reciprocating number | -1/min | 66 | 56 | 50 | 50 | 68 | 70 | 68 | 68 | 68 |
Travel | mm | 28 | 42 | 64 | 64 | 80 | 90 | 120 | 120 | 120 |
Jar Dia. | mm | 38 | 50 | 60 | 85 | 90 | 105 | 115 | 115 | 118 |
Sucia. | mm | 15 | 23 | 23 | 50 | 50 | 50 | 60 | 60 | 80 |
Power | kW | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
Speed | rpm | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1420 | 1420 |
Weight | kg | 15 | 27 | 27 | 37 | 47 | 120 | 140 | 140 | 230 |

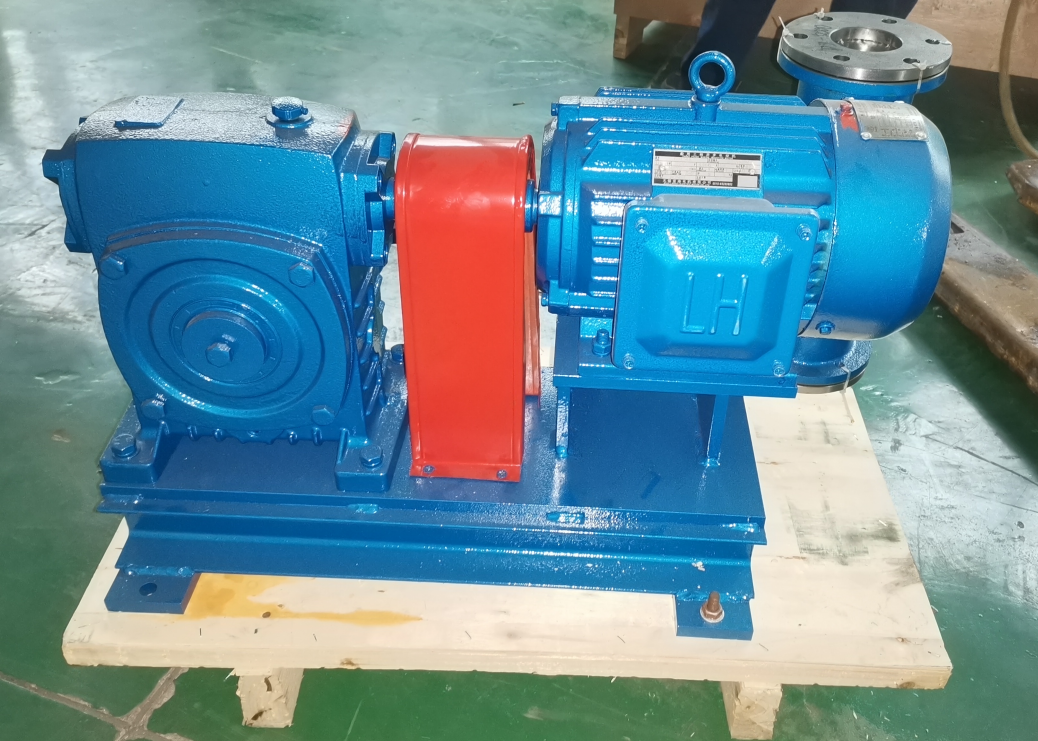

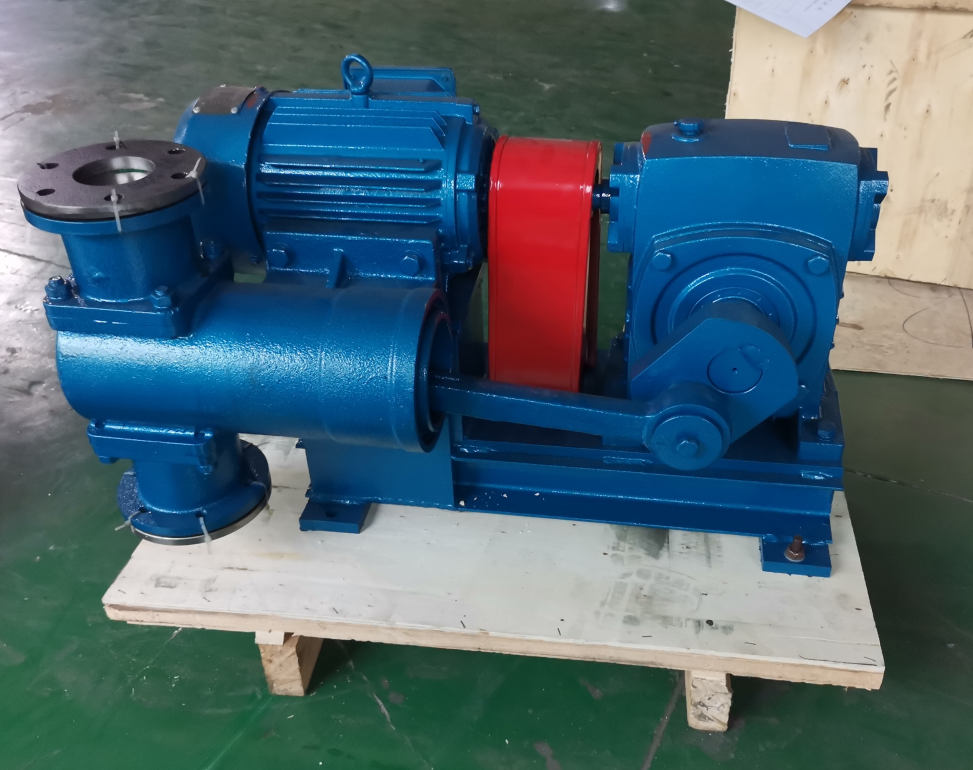

The picture of pump
