GN type Marine Single Screw Pump
Date：2025-03-10Views：
GN type Marine Single Screw Pump
Overview
There are mainly two types of marine single screw pump, including G Series Marine Single Screw Pump and GN Marine Single Screw Pump.
The GN Marine Single Screw Pump is a volumetric slurry pump, which it supports equipment of grape stalk crusher, used for conveying grape pulp. And it can also be used alone. The GN Series Marine Single Screw Pump adopts directly reducer drive, compact structure, with moving wheels, easy to move, beautiful shape, and fruit pulp contact part for stainless steel manufacturing.
Model Explanation GN60-1
GN—Marine single screw pump
60—Screw diameter 60 mm

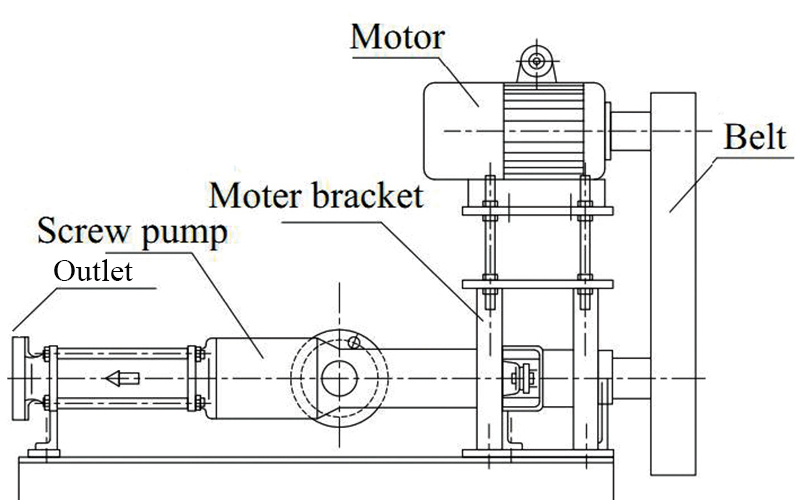

Structural Specification
Parameters of GN Marine Single Screw Pump
Type | Capacity (t/h)
| Pressure (Mpa) | Screw Diameter (mm)
| Outlet Diameter (mm)
| Motor Power (kw)
| Overall Dimension (mm) |
GN50-1 | 5-7 | 0.6 | 50 | φ90 | 4 | 1900×680×480 |
GN60-1 | 8-15 | 60 | φ100 | 5.5 | 2150×750×520 | |
GN70-1 | 20-25 | 70 | φ100 | 7.5 | 2350×860×550 | |
GN80-1 | 30-35 | 80 | φ125 | 15 | 2550×950×630 | |
GN105-1 | 40-50 | 105 | φ125 | 15 | 2650×950×650 |

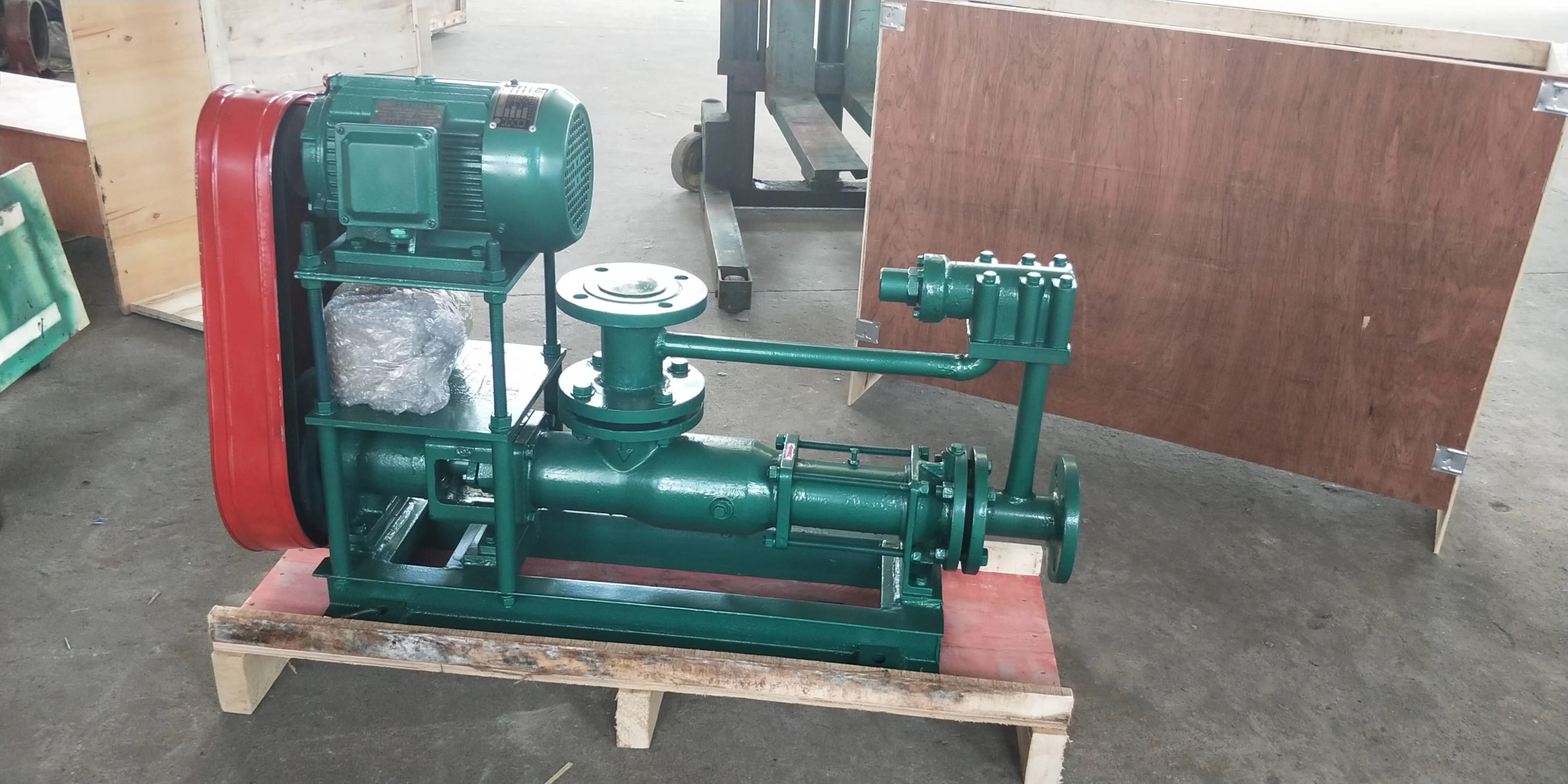

The picture of pump
.JPG "IMG_3219(20181228-101202).JPG")
