Overview

Compared with the reciprocating pump under the same power, the centrifugal pump has the following advantages: uniform displacement and stable pressure head; light weight and small size; it can be directly connected to the high-speed prime mover without a reduction gear; simple structure, reliable operation, Easy to repair; can transport dirty liquids. The main disadvantage of centrifugal pumps is that they have low suction capacity and no dry suction capacity, so they are suitable for placement below the surface level of the liquid being pumped. If it is installed above the suction surface, it is necessary to pre-fill the pump with liquid before starting, or use a centrifugal pump with a self-priming device. Centrifugal pump is currently the largest and most widely used pump. It can be used as circulating water pump, drinking water pump, sanitary pump, ballast pump, bilge pump, fire pump and cargo oil pump on ships.

Features of centrifugal pump

(1) The flow range is large (5~20000m³/h), the flow is continuous and uniform, the work is stable, and the flow is easy to adjust.

(2) The structure is simple and compact, the volume is small, and the cost is low.

(3) High speed, can be directly connected with electric motor or steam turbine.

(4) Insensitive to impurities, less wearing parts, more convenient management and maintenance.

(5) The flow varies with the working head, and it is not suitable for occasions with high flow stability requirements.

(6) The lift that the pump can generate is limited, so there is no need to set up a safety valve, which is more suitable for large flow and low lift.

(7) The liquid viscosity has a great influence on the working performance of the pump. Generally, when the liquid viscosity is greater than 50mm²/s, the pump flow and efficiency will decrease significantly and the power will increase.

(8) It has no self-priming ability. But a self-priming device can be installed to solve the problem.

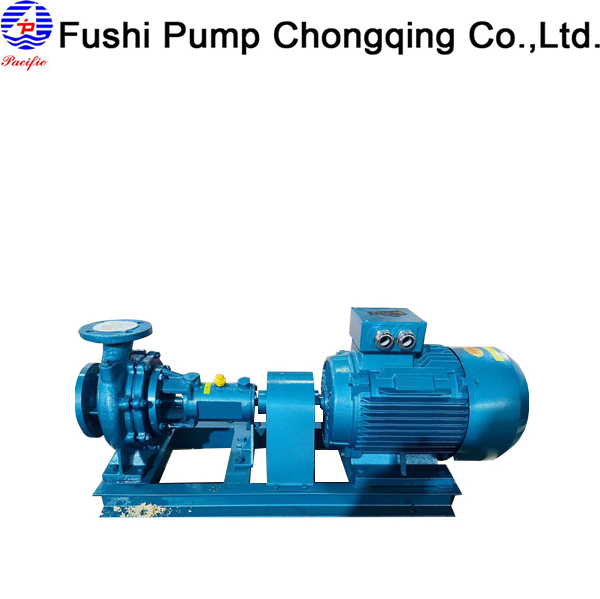

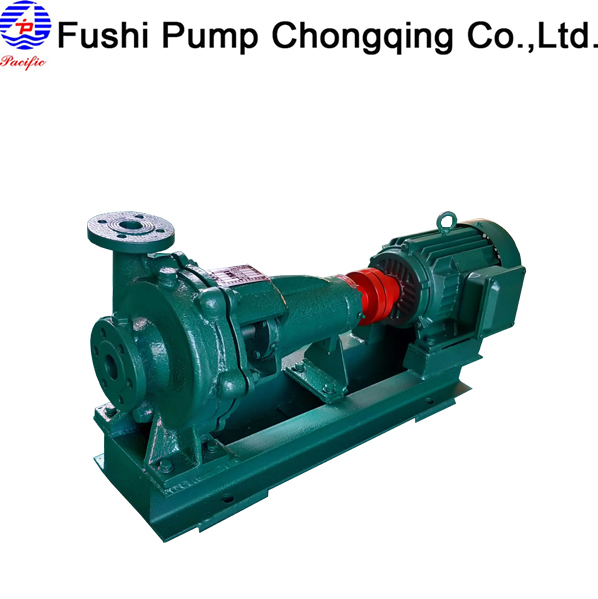

IS type pump is a single-stage single suction centrifugal pump ( axial suction ), for the transport of liquid temperature less than 100℃, the Maximum working pressure of not more than1.6MPa in the water or the physical and chemical properties similar to clear liquid with. Apply to industry, city water supply and drainage, and can also be used for the farmland, orchard irrigation and drainage.

The CIS type single-stage marine centrifugal pump performance parameter, temperature range, installation size and type IS single-stage single suction centrifugal pump, water supply and drainage for ship.

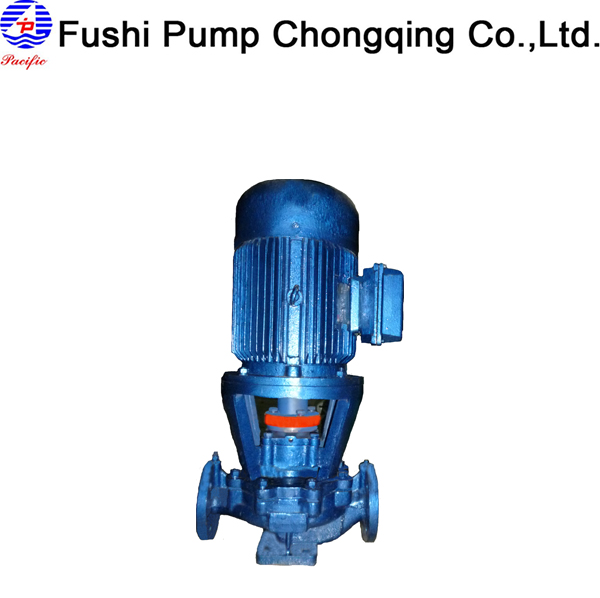

CLH Series marine pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 80 degrees. Fresh water and other non-eroding liquid.

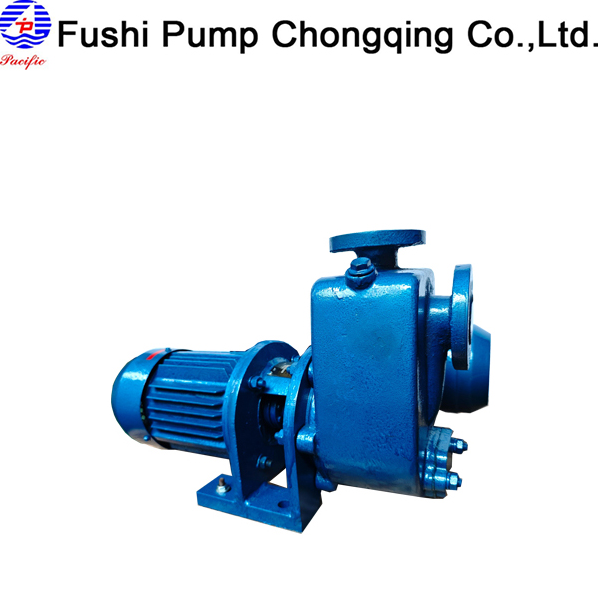

CZW Series marine self-priming non-blocking drainage pump, can be widely applied to the bilge drain, the ship drainage treatment, municipal drainage project, farming, light industry, paper making, River textile, food, chemical, electrical, fiber, pulp and mixed suspension and other chemical medium in the most ideal impurity pump. Has the advantages of simple structure, good self-priming performance, drainage capability, high efficiency and energy saving, convenient repair and maintenance characteristics, the drainage pump Series products is a national initiative.

CWZ Series marine pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 80℃. Fresh water and other nonerroding liquid.
