CBZ Marine Horizontal Ballast Water Pump

Date：2025-03-06Views：

CBZ Series Self-priming Horizontal Centrifugal pump

Overview

CBZ Series Marine Horizontal Self-priming Centrifugal Pump are used at cabin bottom to cool water and fight fire, it is able to carry sea water under 70℃,fresh water and other Corrosion of liquid.

Model Explanation 80 - CBZ - 30

80—Inlet/Outlet diameter 80mm

CBZ—Marine horizontal self-priming centrifugal pumps

30—Head 30 m

Performance Parameter

Perfoamance parameter in case of power supply frequency of 50Hz.3 P.380V

Type	Capacity M3/h	Head m	Suction Head m	Suction Time min	Speed r/min	Motor Power Kw	Caliber/ mm
Type	Capacity M3/h	Head m	Suction Head m	Suction Time min	Speed r/min	Motor Power Kw	Inlet	Outlet
32CBZ-20	8	20	5	2.5	2900	1.5	32	32
32CBZ-30	8	30	5	2.5	2900	2.2	32	32
32CBZ-40	8	42	5	2.5	2900	4	32	32
40CBZ-20	12	20	5	4	2900	2.2	40	40
40CBZ-32	6.3	32	5	2.5	2900	2.2	40	40
40CBZ-35	6.3	35	6	3.5	2900	3	40	40
40CBZ-40	4.5	40	7	3.5	2900	3	40	40
50CBZ-22	21	22	6	4	2900	3	50	50
50CBZ-35	14	35	7	2.5	2900	4	50	50
65CBZ-21	36	21	5	3	2900	4	65	65
65CBZ-25	36	25	6	4	2900	5.5	65	65
65CBZ-30	36	30	6	3	2900	5.5	65	65
65CBZ-42	30	42	6	3	2900	7.5	65	65
65CBZ-42	36	42	6	2.5	2900	11	65	65
65CBZ-50	24	50	6	3	2900	7.5	65	65
80CBZ-21	56.3	21	6	3	2900	5.5	80	80
80CBZ-30	50	30	6	3	2900	7.5	80	80
80CBZ-30	60	30	6	3	2900	11	80	80
80CBZ-42	60	42	6	3	2900	15	100	80
80CBZ-50	31	50	6.5	3.5	2900	11	100	80
80CBZ-50B	50	50	6	3.5	2900	15	100	80
80CBZ-55	60	55	5.5	3	2900	18.5	100	80
80CBZ-60	50	60	6	3.5	2900	18.5	100	80
80CBZ-60	60	60	6	3	2900	22	100	80
80CBZ-70	60	70	6	3	2900	22	100	80
80CBZ-80	60	80	6	3	2900	30	100	80
100CBZ-18	60	80	6	3	2900	30	100	80
100CBZ-20	90	20	6	3.5	2900	11	100	100
100CBZ-20	100	20	6	3.5	2900	11	100	100
100CBZ-30	100	30	6	3	2900	15	100	100
100CBZ-38	100	38	6	3	2900	15	100	100
100CBZ-40	90	40	5.5	3.5	2900	15	100	100
100CBZ-42	100	42	5	3	2900	18.5	100	100
100CBZ-45	100	45	5	3	2900	22	100	100
100CBZ-50	50	50	5.5	3	2900	15	100	100
100CBZ-50	60	50	5	3	2900	18.5	100	100
100CBZ-50	100	50	5	3	2900	30	100	100
100CBZ-55	100	55	5	3	2900	30	100	100
100CBZ-60	100	60	5.5	3.5	2900	37	100	100
100CBZ-70	100	70	5	3.5	2900	37	100	100
100CBZ-80	100	80	5	3	2900	45	100	100
125CBZ-32	150	32	6	3.5	2900	22	125	100
125CBZ-50	120	50	5	3	2900	30	125	100
125CBZ-60	100	60	5	3	2900	37	125	100
150CBZ-30	160	30	6	3.5	2900	22	150	150
150CBZ-40	150	40	5	3.5	2900	30	150	150

Perfoamance parameter in case of power supply frequency of 60Hz.3 P.440V

Type	Main technical parameter( 60Hz.3 p.440V)					Motor Power Kw
Type	Capacity M3/h	Head/m	Speed r/min	NPSH m	Suction head/m	Motor Power Kw
32CBZ1-20	9.6	30.2	3540	4	6	3
32CBZ1-32	9.6	43.2	3540	4	6	4
32CBZ1-40	9.6	60.5	3540	4	6	5.5
40CBZ1-20	14.4	30.2	3540	4	6	3
40CBZ1-35	14.4	43.2	3540	4	6	4
40CBZ1-40	14.4	60.5	3540	4	6	5.5
50CBZ1-22	25.2	30.2	3540	4	6	5.5
50CBZ1-35	25.2	43.2	3540	4	6	7.5
65CBZ1-21	43.2	30.2	3540	4	6	7.5
65CBZ1-30	43.2	43.2	3540	4	6	11
65CBZ1-42	43.2	60.5	3540	5	5	15
65CBZ1-42	43.2	86.4	3540	5	5	22
80CBZ1-21	72	30.2	3540	4	6	11
80CBZ1-30	72	43.2	3540	4	6	15
80CBZ1-42	72	60.5	3540	5	5	30
80CBZ1-60	72	86.4	3540	5	5	37
80CBZ1-80	72	108	3540	5	5	45
100CBZ1-20	120	30.2	3540	5	5	18.5
100CBZ1-30	120	43.2	3540	5	5	30
100CBZ1-42	120	60.5	3540	5	5	37
100CBZ1-60	120	86.4	3540	5	5	55
100CBZ1-80	120	122.4	3540	5	5	75

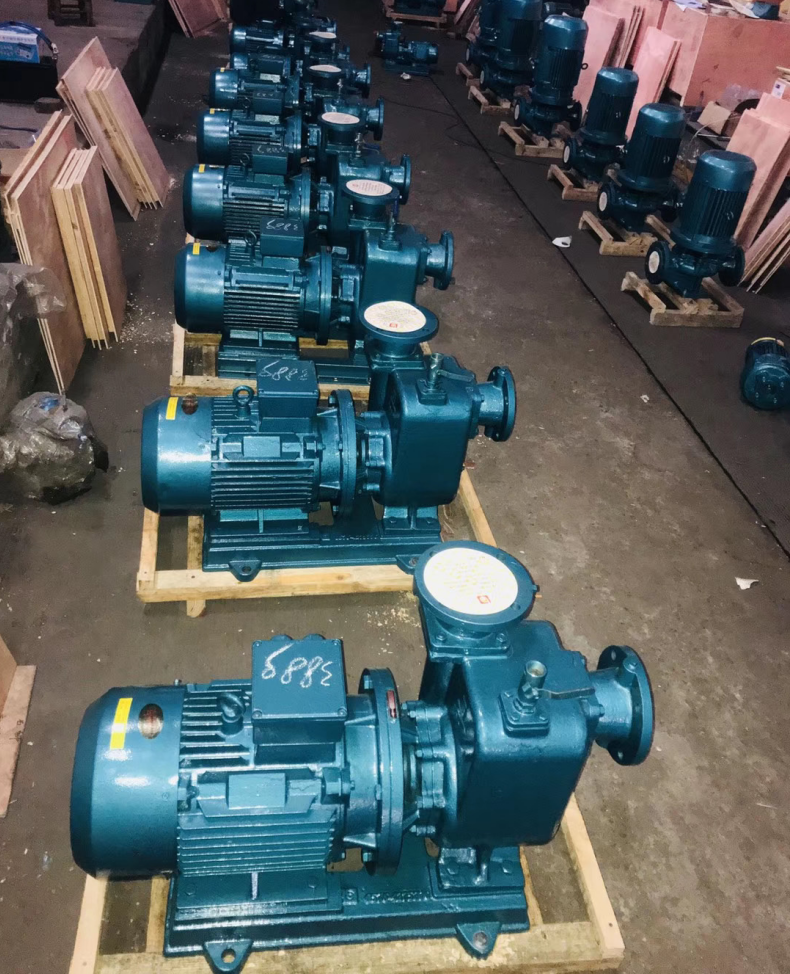

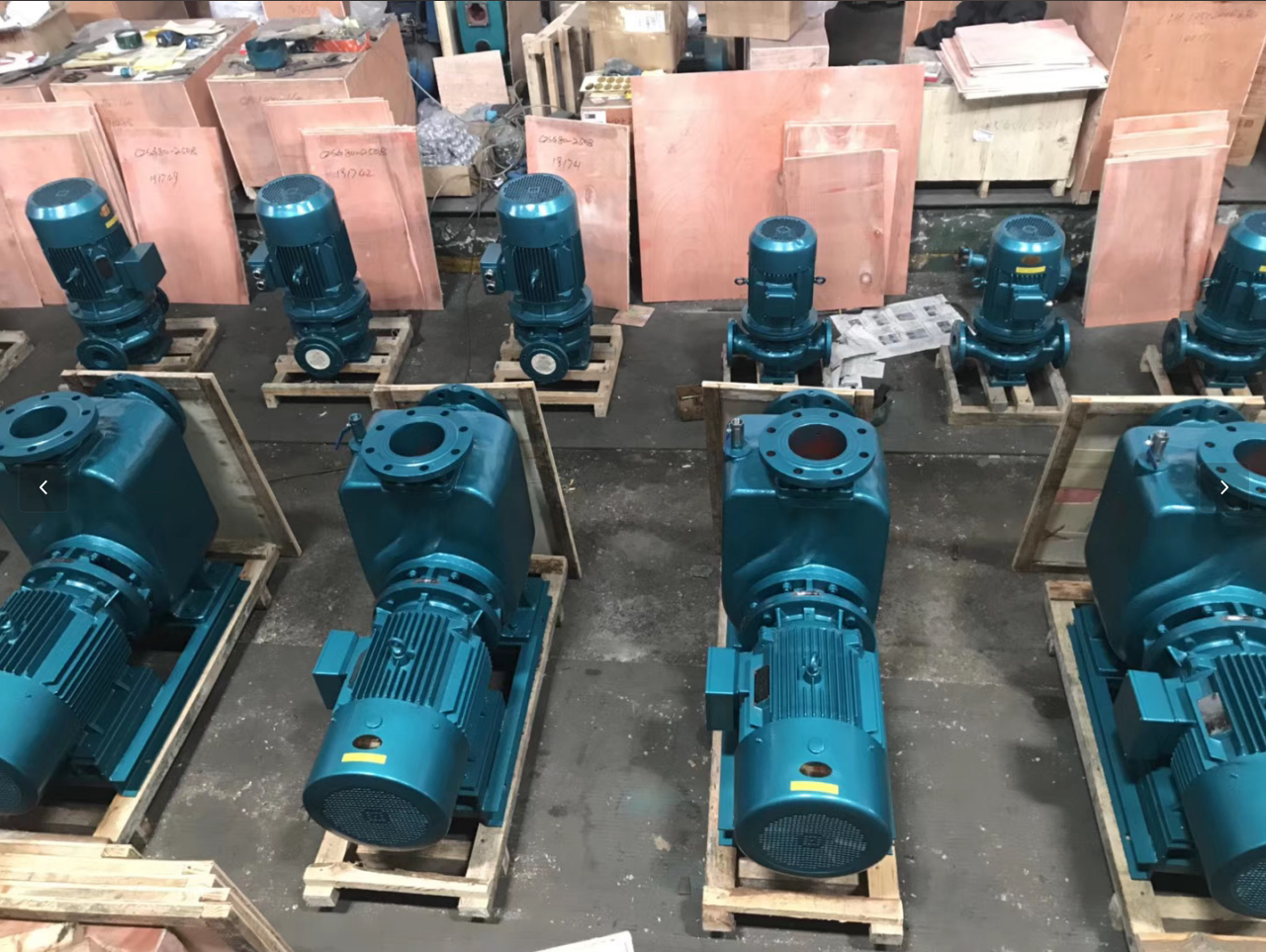

The picture of pump
