CQ Series Magnetic Drive Pumps

Overview

The CQ-type magnetic drive pump applies the principle of permanent magnet couplings to centrifugal pumps. With rational design and advanced technology, it features full sealing, zero leakage, and corrosion resistance, meeting the advanced standards of similar products.

Sealing Design: Replaces dynamic seals with static seals, ensuring fully sealed wetted components and eliminating leaks common in mechanical seals.

Materials: Constructed from corrosion-resistant, high-strength engineering plastics, alumina ceramics, stainless steel, etc., to protect conveyed media from contamination.

Features: Compact structure, low noise, reliable operation, and easy maintenance. Suitable for transporting acids, alkalis, oils, rare liquids, toxic fluids, and volatile substances in chemical, pharmaceutical, petroleum, and electroplating industries—ideal for leak-prone, flammable, or explosive media.

Model Explanation: 50CQ-25

50: Inlet Diameter (mm)

CQ: Magnetic Drive Pump

25: Head (m)

Structural Specifications

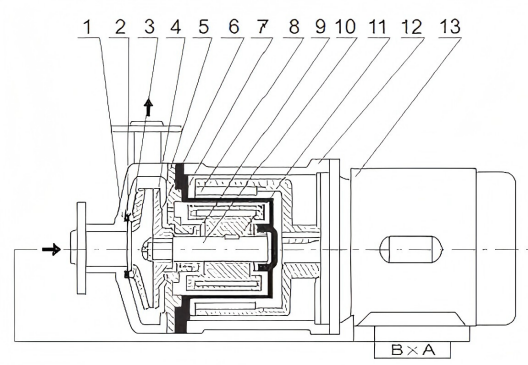

1.Pump Casing; 2. Stationary Ring; 3. Rotating Ring; 4. Impeller; 5. Sealing Ring; 6. Partition; 7. Isolation Sleeve; 8. External Magnetic Assembly; 9. Internal Magnetic Assembly; 10. Pump Shaft; 11. Shaft Sleeve; 12. Connecting Frame; 13. Motor

Performance Parameters
