2CY Marine Gear Fuel Pump
Date：2025-03-06Views：
2CY Marine Gear Fuel Pump
Overview
It applies to deliver non-corrosive lubricating-oil or equivalent liquid without solid particles and fibers at temperature below 300℃ and with the viscosity of 5×10-6～1.5×10-3m2s (5-1500cSt). Reducing the speed, the pumps can delivery the liquid that the viscosity can be up to 5×104cSt.
Model Explanation 2CY-18/0.36
2CY—Gear Pump(no safety backflow valve)
18—Flow 18m3/h
0.36—Exhaust Pressure 0.36MPa
Performance Parameter
2CY Type gear pump performance parameter
Type | Caliber | Capacity (m3/h) | Speed | Exhaust Pressure | (NPSH)r (m) | Efficiency | Motor (kW) | ||
(Hz) | Power | Type | |||||||
2CY-1.1/1.45 | G3/ 4″ | 1.1 1.3 | 1400 1730 | 1.45 | 5 | 59 | 50 60 | 1.5 2.2 | Y90L-4 Y100L1-4 |
2CY-2/1.45 | G3/4″ | 2 2.4 | 1420 1730 | 1.45 | 5 | 59 | 50 60 | 2.2 3 | Y100L1-4 Y100L2-4 |
2CY-3.3/0.33 | G1″ | 3.3 3.9 | 1400 1730 | 0.33 | 7 | 41 | 50 60 | 1.5 2.2 | Y90L-4 Y100L1-4 |
2CY-5/0.33 | G11/2″ | 5 6 | 1420 1730 | 0.33 | 7 | 43 | 50 60 | 2.2 3 | Y100L1-4 Y100L2-4 |
2CY-8/0.33 | φ50 | 8 9.6 | 940 1170 | 0.33 | 5 | 46 | 50 60 | 2.2 3 | Y112M-6 Y132S-6 |
2CY-12/0.33 | φ50 | 12 14.4 | 1440 1750 | 0.33 | 5 | 46 | 50 60 | 4 5.5 | Y112M-4 Y112M-4 |
2CY-18/0.36 | φ70 | 18 21.6 | 960 1170 | 0.36 | 5 | 42 | 50 60 | 5.5 7.5 | Y132M2-6 Y160M-6 |
2CY-29/0.36 | φ70 | 29 34.8 | 1440 1760 | 0.36 | 5.5 | 42 | 50 60 | 11 15 | Y160M-4 Y160L-4 |
2CY-38/0.28 | φ100 | 38 45.6 | 970 1180 | 0.28 | 6 | 43 | 50 60 | 11 15 | Y160L-6 Y180L-6 |
2CY-58/0.28 | φ100 | 58 69.6 | 1470 1780 | 0.28 | 6.5 | 43 | 50 60 | 22 37 | Y180L-4 Y225S-4 |
2CY-1.08/2.5 | G3/4″ | 1.08 1.9 | 1420 1730 | 2.5 | 9.5 | 58 | 50 60 | 2.2 3 | Y100L1-4 Y100L2-4 |
2CY-2.1/2.5 | G1″ | 2.1 2.5 | 1420 1750 | 2.5 | 9.5 | 58 | 50 60 | 3 4 | Y100L2-4 Y112M-4 |
2CY-3/2.5 | G1″ | 3 3.6 | 1440 1750 | 2.5 | 9.5 | 59 | 50 60 | 4 5.5 | Y112M-4 Y132S-4 |
2CY-4.2/2.5 | G11/4″ | 4.2 5 | 1440 1750 | 2.5 | 9.5 | 62 | 50 60 | 5.5 7.5 | Y132S-4 Y132M-4 |
2CY-7.5/2.5 | G11/2″ | 7.5 9 | 1440 1750 | 2.5 | 9.5 | 63 | 50 60 | 7.5 15 | Y132M-4 Y160L-4 |
2CY-12/2.5 | G2″ | 12 14.4 | 1460 1760 | 2.5 | 9.5 | 61 | 50 60 | 15 22 | Y160L-4 Y180L-4 |
(Note: No safety valve.）

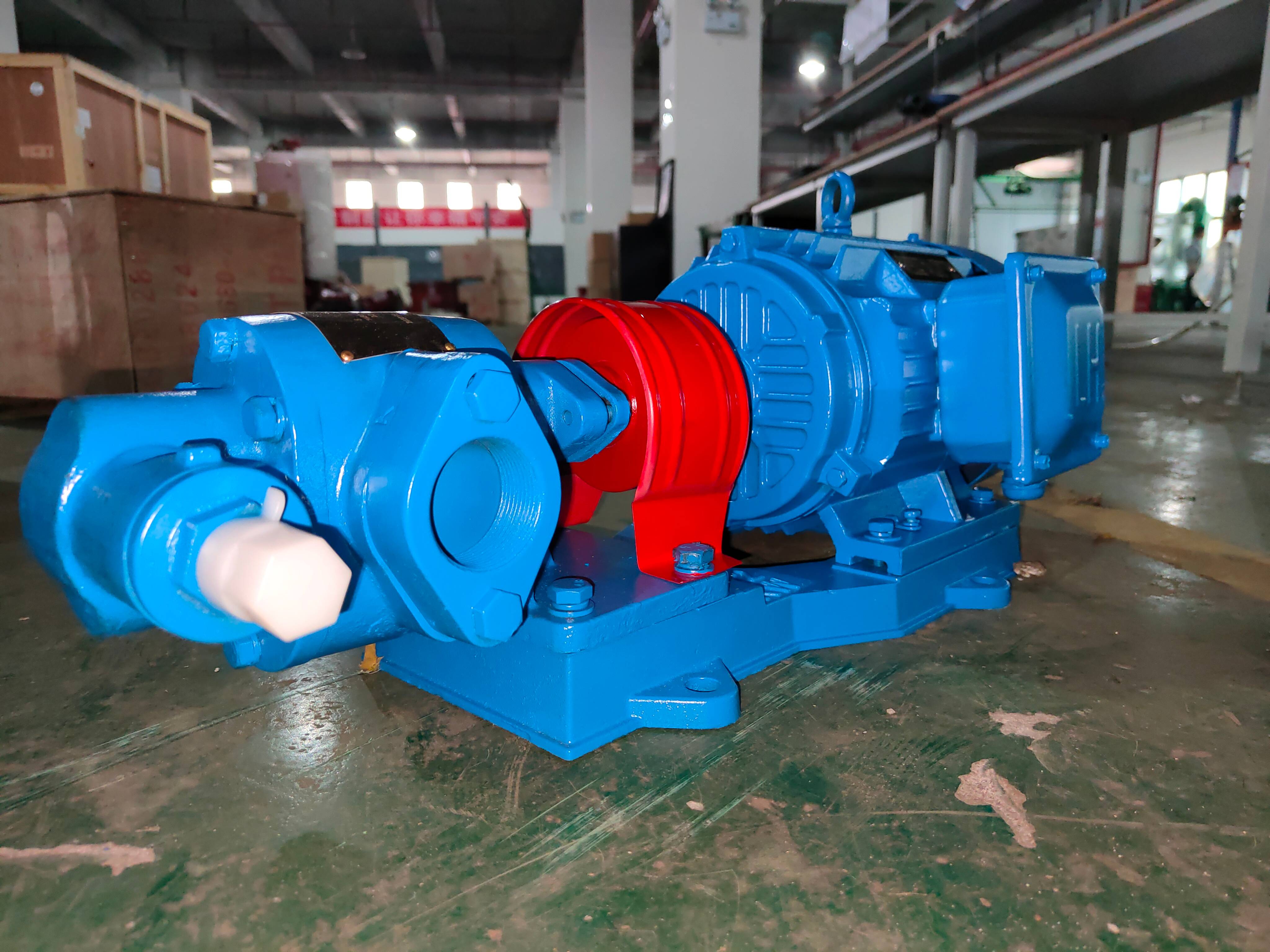

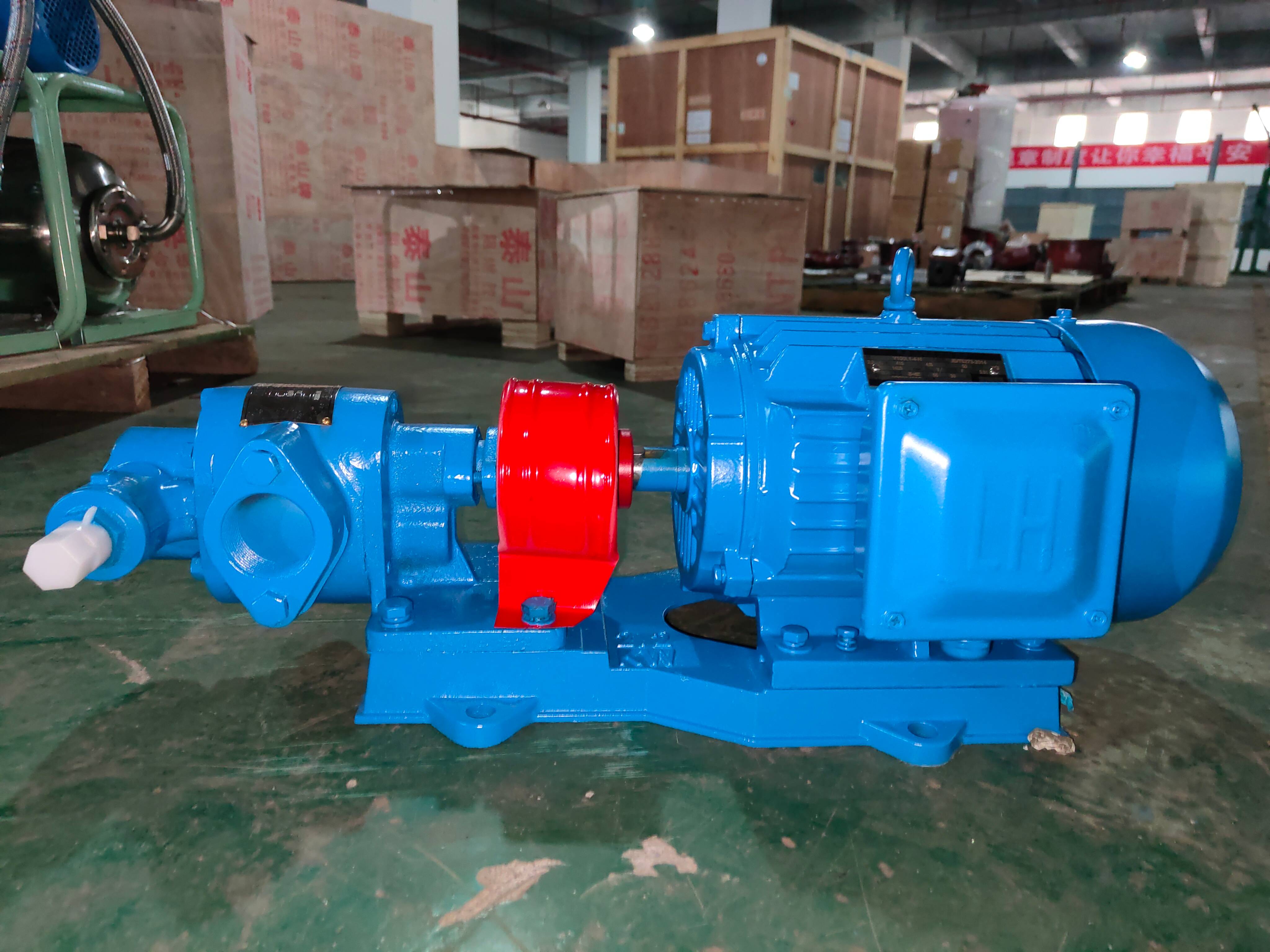

The picture of pump
.jpg "IMG20220609095455(1).jpg")
.jpg "IMG20220609095442(1).jpg")
