Marine General Pump

Date:2025-03-07Views:


Marine General Pump

Overview

General-purpose pumps are versatile fluid transfer solutions for diverse industrial applications, including centrifugal, gear, and screw pumps. Designed to handle clean liquids, oils, chemicals (pH 2-12), and slurries (≤5mm solids, ≤10% concentration), they comply with ISO 5199 and API 610 standards, serving as core equipment in chemical, oil & gas, water treatment, and marine industries.

Key Features

Multi-Media Compatibility:Materials: Cast iron, stainless steel (304/316), plastic-lined.

Modular Design:Quick-connect drive units (electric/diesel) and adjustable ports (top/side suction).

Applications

Industrial Water Systems: Cooling tower supply, boiler feed.

Chemical Transfer: Acids, alkalis, solvents (PTFE seals).

Marine Services: Ballast water, fuel transfer, bilge pumping.

Agricultural Irrigation: Sediment-laden river water (≥6m self-priming).

Performance Specifications


Parameter

Standard Range

Custom Options

Flow Rate

1-1,000 m³/h

Multi-pump up to 5,000 m³/h

Head

10-300 m

Multistage up to 800 m

Pressure

0.3-4.0 MPa

High-pressure to 10 MPa

Temperature

-20°C-180°C

High-temp. to 400°C (special seals)

Protection

IP55/IP65

ATEX Zone 2 certification

Classification Society Certifications

DNV/ABS/LR/CCS/BV.Etc.

Selection Guidelines

Media Priority: Plastic-lined pumps for corrosives; open impellers for solids.

Energy Efficiency: VFD drives save 30%+ annual energy costs.

Maintenance: Cartridge seals extend service intervals to 2 years.

Product showcase:(In addition, please provide the parameter of the marine pump you need and we can customize the suitable type for you.)

Marine Lubricating Oil Pump


CLZ Marine Vertical General Pump


CWL Marine Horizontal Centrifugal General Pump


CLH Marine Vertical General Pump


CWZ Marine Horizontal General Pump

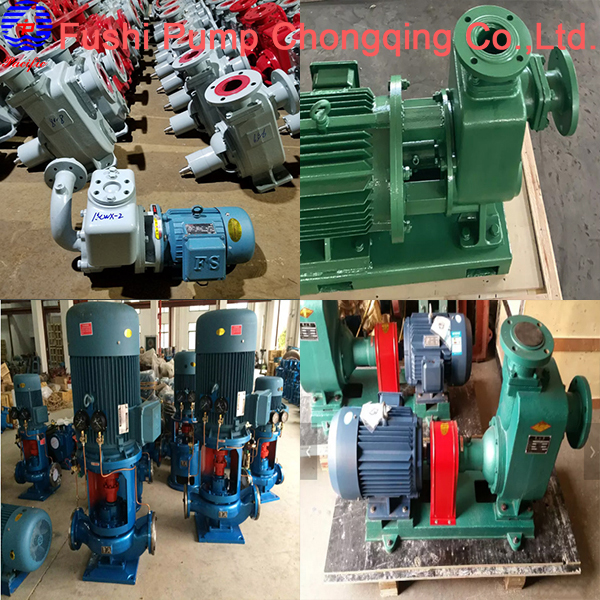

Marine General Pump in Factory

marine general pump in Factory.jpg
