CS Marine Hand Pump
Date：2025-03-10Views：
CS Marine Hand Pump
Overview
CS Series hand piston pump is suitable for various ships pumping not containing hard particles or fibers of the lubricating oil, fuel oil, lubricating oil, other freshwater and seawater, and can be used in civil engineering, fire, water, drainage, oil and water wells kitchen vehicle transport sector and other different places. Transmission medium temperature not exceeding 60℃.
Model Explanation CS-20Y/H
C—Marine
S—Hand pump
20—Inlet and outlet diameter 20mm
Y/H Iron cylinder or copper alloy
CS-20Y(S-20)—Applicable to pumping oil or water
CS-20H(SH-20)—Applicable to fresh water and sea water

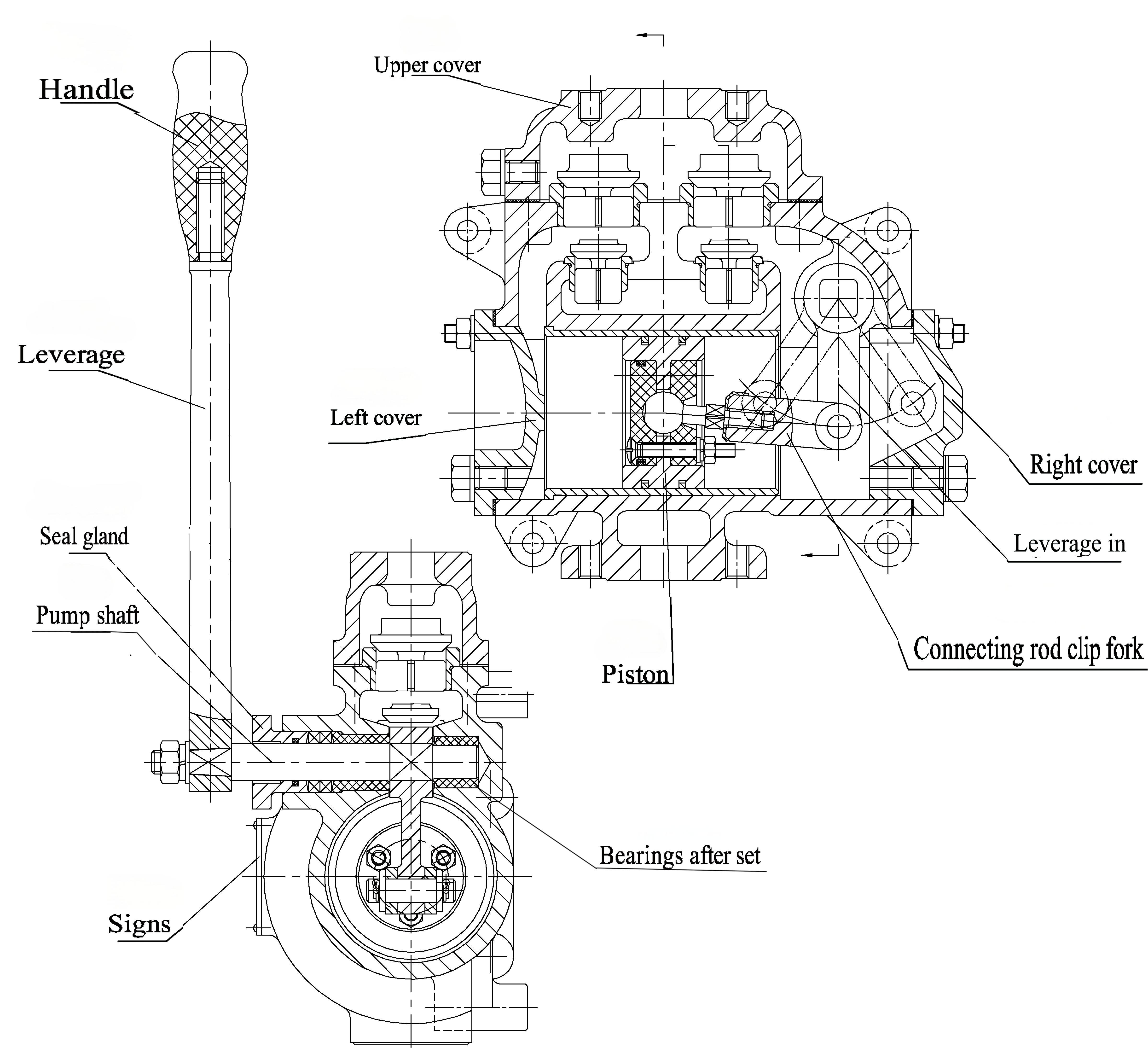

Structural Specifications
Performance Parameter
Name | Unit | Type | |||
CS-20Y/H S/SH-20 | CS-25Y/H S/SH-25 | CS-32Y/H S/SH-32 | CS-40Y/H S/SH-40 | ||
Capacity | L/min | 20 | 32 | 48 | 65 |
Dis Head | MPa | 0.25～0.3 | 0.25～0.3 | 0.25～0.3 | 0.25～0.3 |
Inlet vacuum height | MPa | 0.06 | 0.06 | 0.06 | 0.06 |
Cylinder diameter | mm | 65 | 75 | 88 | 95 |
Piston stroke | mm | 68 | 80 | 90 | 96 |
Reciprocating times | Times/min | 50 | 50 | 50 | 50 |
Weight | kg | 5.8 | 7.5 | 10.5 | 12 |

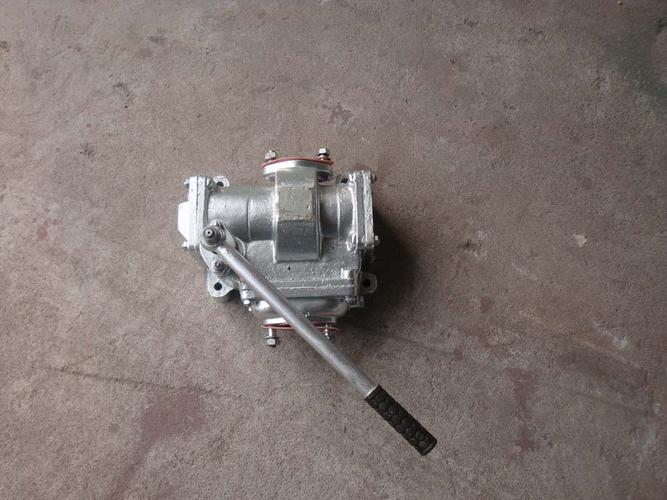

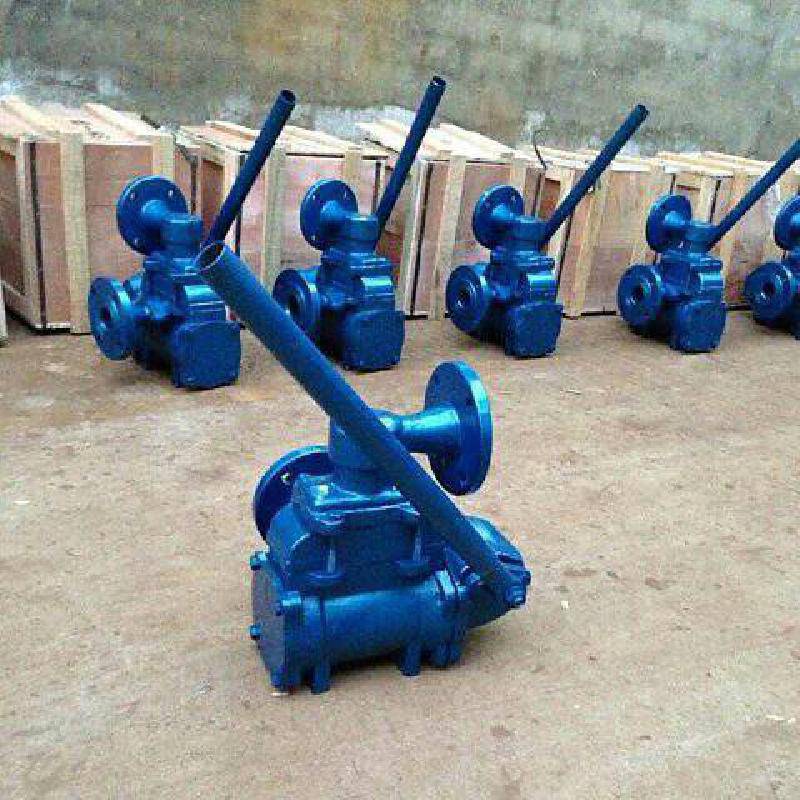

The picture of pump
