CWY Marine Diesel Emergency Fire Pump
Date：2025-03-06Views：
CWY Marine Diesel Emergency Fire Pump
Overview
CWY marine diesel emergency fire pump, its structure is divided into fixed and mobile two. Fixed type import and export for the flange connection or threaded connection, the base for the steel structure frame, or leg fixed trolley frame; mobile for the import and export of pipe thread connection, fixed on a trolley frame. The pump is mainly used in no power under the conditions of the emergency fire pump, but also applies to civil, industrial and mining enterprises, port and dock, storage yard. The pump has the advantages of light weight, small size, flexible movement, rapid starting, water fast time, fuel tank Flow, corrosion resistance, reliable use, convenient maintenance and so on. In allowing the use of the battery, the unit can be installed and used battery starting device.
Note: the diesel engine high pressure oil pipe can be installed protective sleeve and oil leakage prevention device, or a remote control system, in order to separate indication.
Model Explanation 65CWY-40
65—Inlet diameter 65 mm
CWY—Marine diesel emergency fire pump
40—Head 40m
Structural Specifications

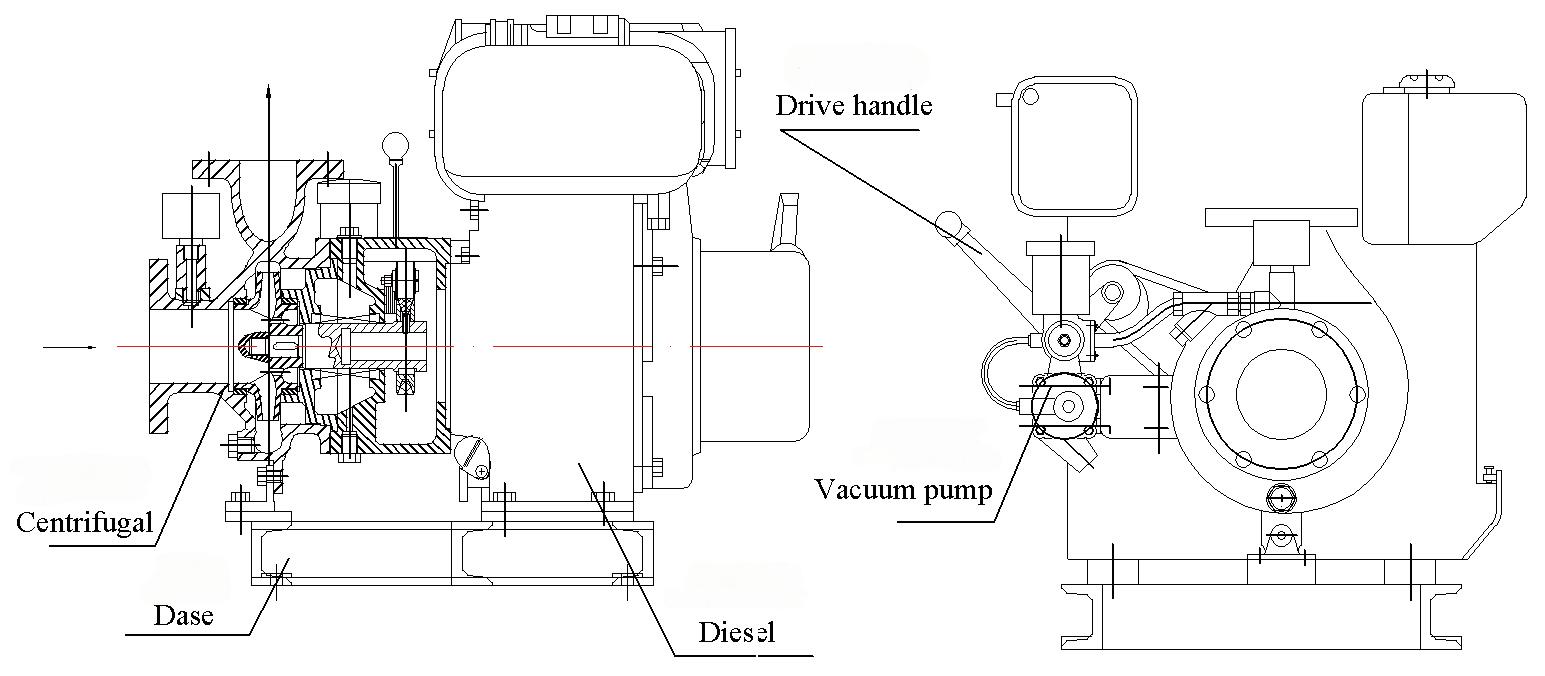

65CWY-30/40 Fixed type

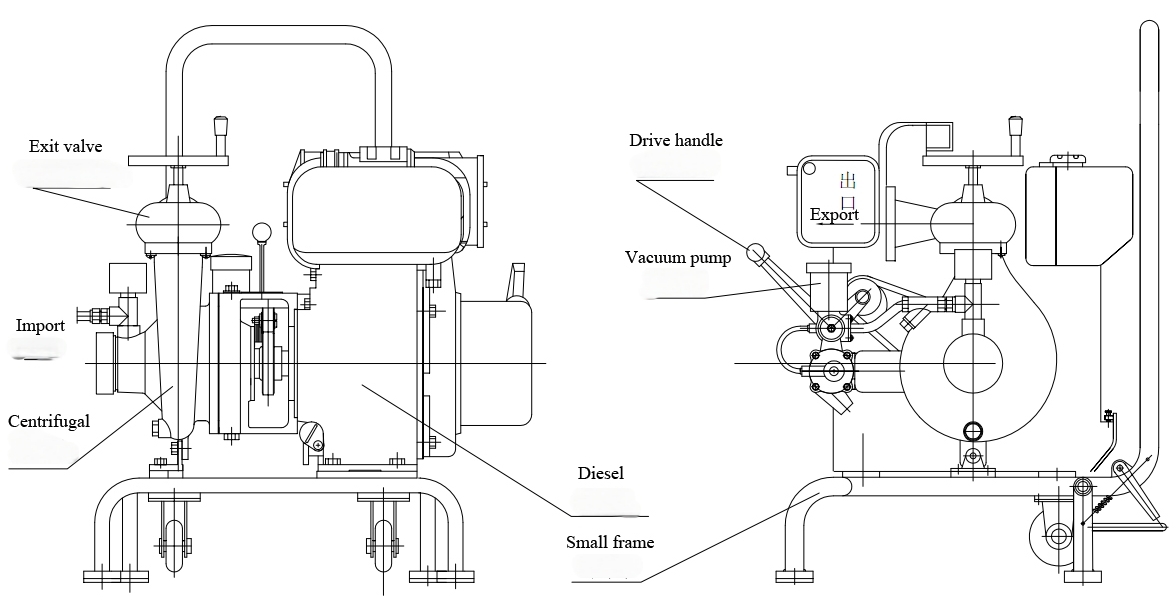

65CWY-30/40 Portable type

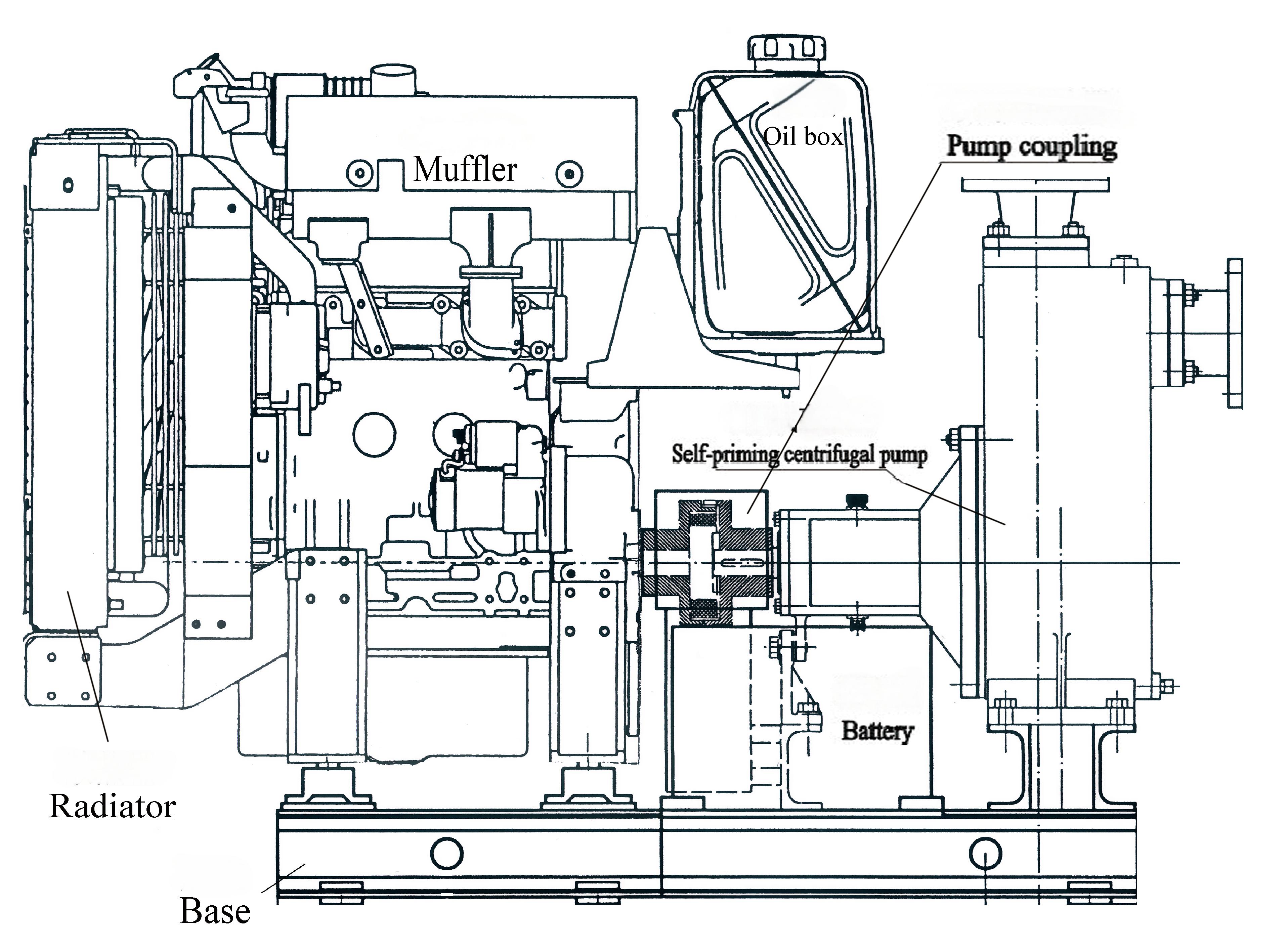

80CWY、100CWY、150CWY Large size
Performance Parameter
Type | Capacity (m3/h) | Head (m) | Speed (rpm) | Absorb height (m) | Max suction head m | Efficiency (%) | Water time (S) |
65CWY-30 | 25 | 30 | 3600 | 5～6 | 6～15 | 63 | ≤35 |
65CWY-40 | 30 | 40 | 3600 | 6～7 | 7～15 | 65 | ≤35 |
80CWY-55 | 60 | 55 | 3600 | 6～7 | 7～15 | 68 | ≤35 |
80CWY-60 | 50 | 60 | 3600 | 6～7 | 7～15 | 66 | ≤35 |
80CWY-70 | 60 | 70 | 3000 | 4～5 | 5～15 | 44 | ≤100 |
100CWY-45 | 100 | 45 | 3000 | 4～5 | 5～15 | 48 | ≤100 |
100CWY-70 | 90 | 70 | 3000 | 4～5 | 5～15 | 50 | ≤100 |
150CWY-55 | 160 | 55 | 3000 | 4～5 | 5～15 | 54 | ≤100 |
Type | Diesel engine | Inlet/Out dia. (mm) | Weight (kg) | |
Type | Power | |||
65CWY-30 | KM186FEM | 6kW | 65/50 | 87 |
65CWY-40 | KM186FEM | 6kW | 65/50 | 87 |
80CWY-55 | KM376AM | 15.3kW | 80 | 240 |
80CWY-60 | KM376AM | 15.3kW | 80 | 240 |
80CWY-70 | KD388M | 21.2kW | 80 | 440 |
100CWY-45 | KD388M | 21.2kW | 100 | 480 |
100CWY-70 | KD488M | 28.2kW | 100 | 500 |
150CWY-55 | KM493ZG | 45.5kW | 150 | 540 |
Note: can be customized individually large size and special purpose diesel fire pump.
The Performance of Diesel Engine
Type | Style | Piston displacement (L) | Start method | Power (kW) | Weight (kg) |
KM186FEM | simplex,4-stroke, aircool, direct injection | 0.406 | Starting with reaction hand or electric | 5.7 | 52 |
KM376AM | 1.048 | Electrical starting | 15.3 | 110 | |
KD388M | In-line, 4-stroke, in-line | 1.642 | 21.2 | 170 | |
KD488M | In-line, 4-stroke, in-line | 2.19 | 28.2 | 200 | |
KM493ZG | In-line, 4-stroke, in-line, turbocharging | 2.771 | 45.5 | 240 |

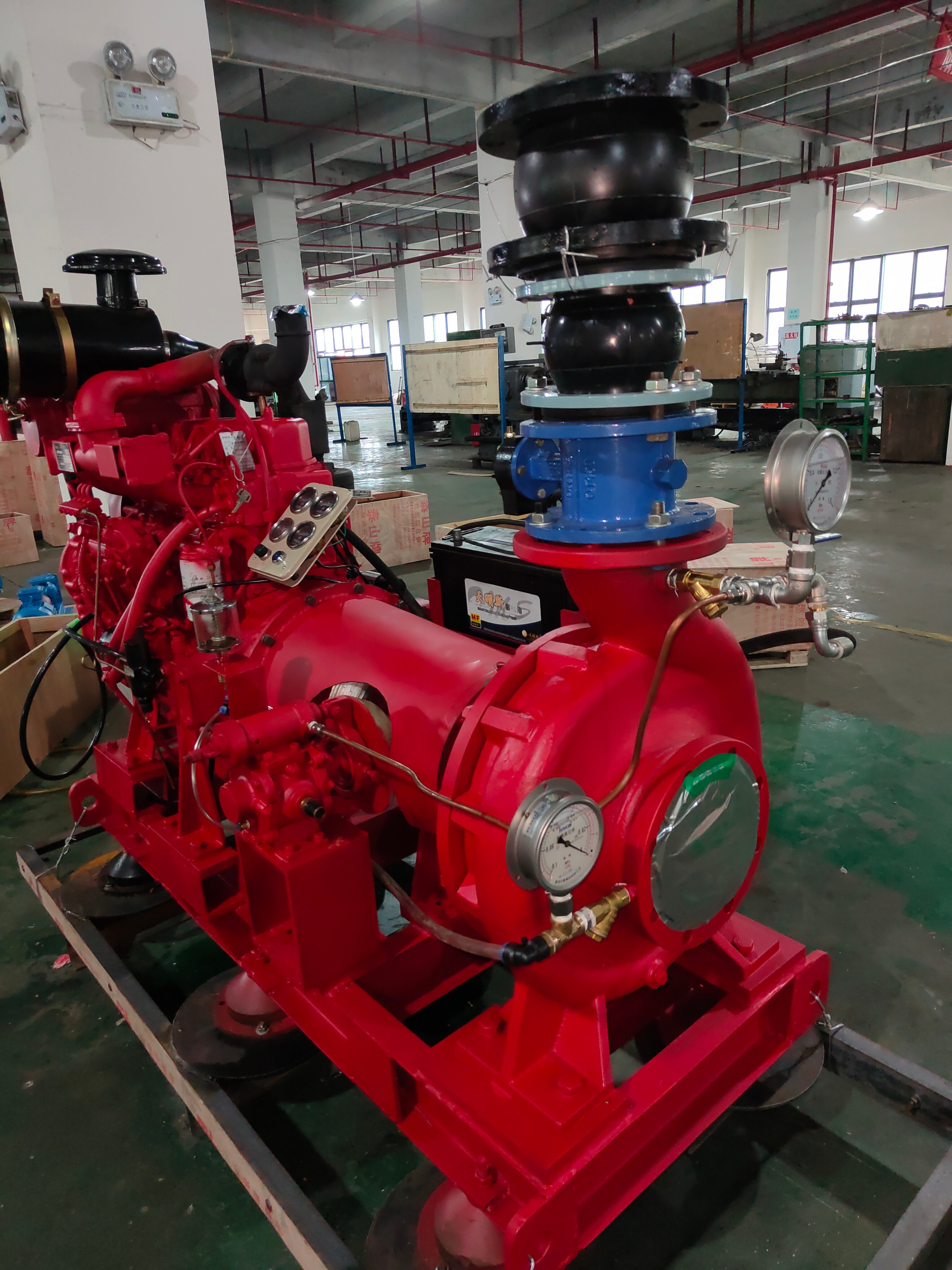

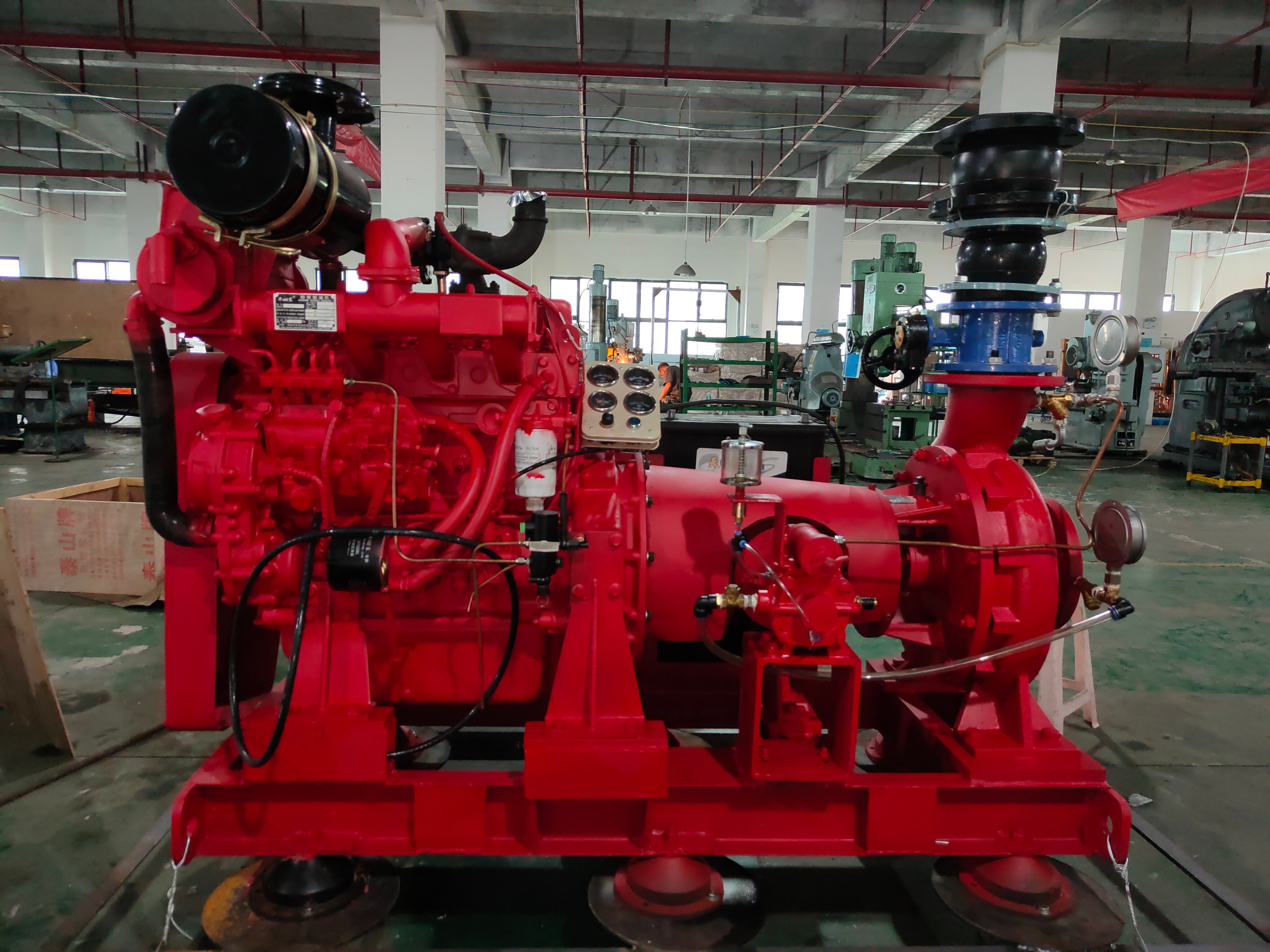

The picture of pump
.jpg "IMG20220609102909(1).jpg")
.jpg "IMG20220609095802(1).jpg")
