CWYG Max Suction Head Marine Emergency Fire Pump
Date：2025-03-05Views：
CWYG Max Suction Head Marine Emergency Fire Pump
Overview
CWYG high-suction marine diesel emergency fire pump, water for hose connection, straw bottom of relay pump through a flexible shaft coupling, transmission torque, and fire pump used in Series, to enhance the absorption process, the highest suction Head of up to 15-20m.
Note: the diesel engine high pressure oil pipe can be installed protective sleeve and oil leakage prevention device, or a remote control system, in order to separate indication.
Model Explanation 65CWYG-40
65—Inlet diameter 65 mm
CWYG—Marine diesel emergency fire pump Max suction head type
40—Head 40m

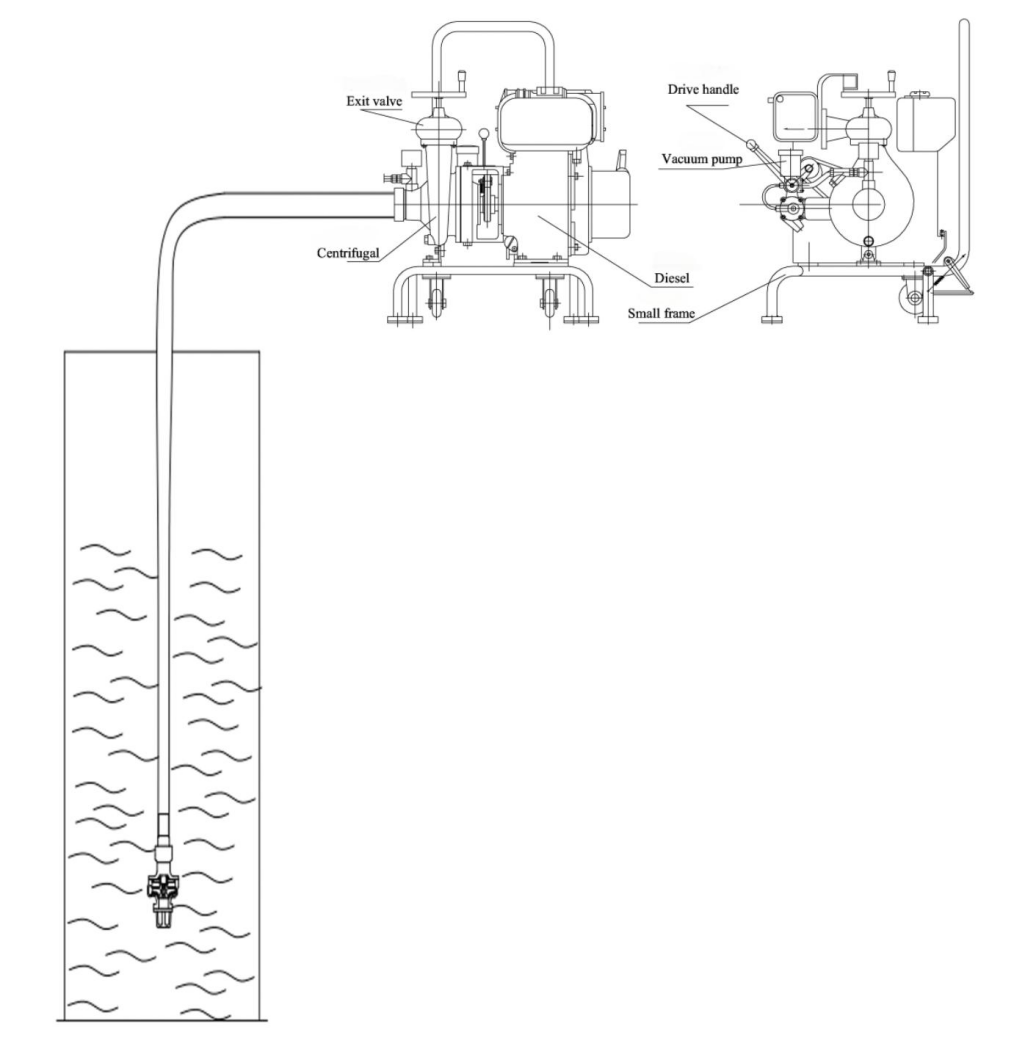

Structural Specifications
Performance Parameter
Type | Capacity m3/h | Head m | Speed rpm | Absorb height m | Max suction head m | Efficiency % | Water time S |
65CWYG-30 | 25 | 30 | 3600 | 5～6 | 6～15 | 63 | ≤35 |
65CWYG-40 | 30 | 40 | 3600 | 6～7 | 7～15 | 65 | ≤35 |
80CWYG-55 | 60 | 55 | 3600 | 6～7 | 7～15 | 68 | ≤35 |
80CWYG-60 | 50 | 60 | 3600 | 6～7 | 7～15 | 66 | ≤35 |
80CWYG-70 | 60 | 70 | 3000 | 4～5 | 5～15 | 44 | ≤100 |
100CWYG-45 | 100 | 45 | 3000 | 4～5 | 5～15 | 48 | ≤100 |
100CWYG-70 | 90 | 70 | 3000 | 4～5 | 5～15 | 50 | ≤100 |
150CWYG-55 | 160 | 55 | 3000 | 4～5 | 5～15 | 54 | ≤100 |
Type | Diesel engine | Inlet/Out dia. mm | Weight kg | |
Type | Power | |||
65CWYG-30 | KM186FEM | 6kW | 65/50 | 87 |
65CWYG-40 | KM186FEM | 6kW | 65/50 | 87 |
80CWYG-55 | KM376AM | 15.3kW | 80 | 240 |
80CWYG-60 | KM376AM | 15.3kW | 80 | 240 |
80CWYG-70 | KD388M | 21.2kW | 80 | 440 |
100CWYG-45 | KD388M | 21.2kW | 100 | 480 |
100CWYG-70 | KD488M | 28.2kW | 100 | 500 |
150CWYG-55 | KM493ZG | 45.5kW | 150 | 540 |
Note: can be customized individually large size and special purpose diesel fire pump.
The Performance of Diesel Engine
Type | Style | Piston displacement L | Start method | Power kW | Weight kg |
KM186FEM | simplex,4-stroke, aircool, direct injection | 0.406 | Starting with reaction hand or electric | 5.7 | 52 |
KM376AM | 1.048 | Electrical starting | 15.3 | 110 | |
KD388M | In-line, 4-stroke, in-line | 1.642 | 21.2 | 170 | |
KD488M | In-line, 4-stroke, in-line | 2.19 | 28.2 | 200 | |
KM493ZG | In-line, 4-stroke, in-line, turbocharging | 2.771 | 45.5 | 240 |

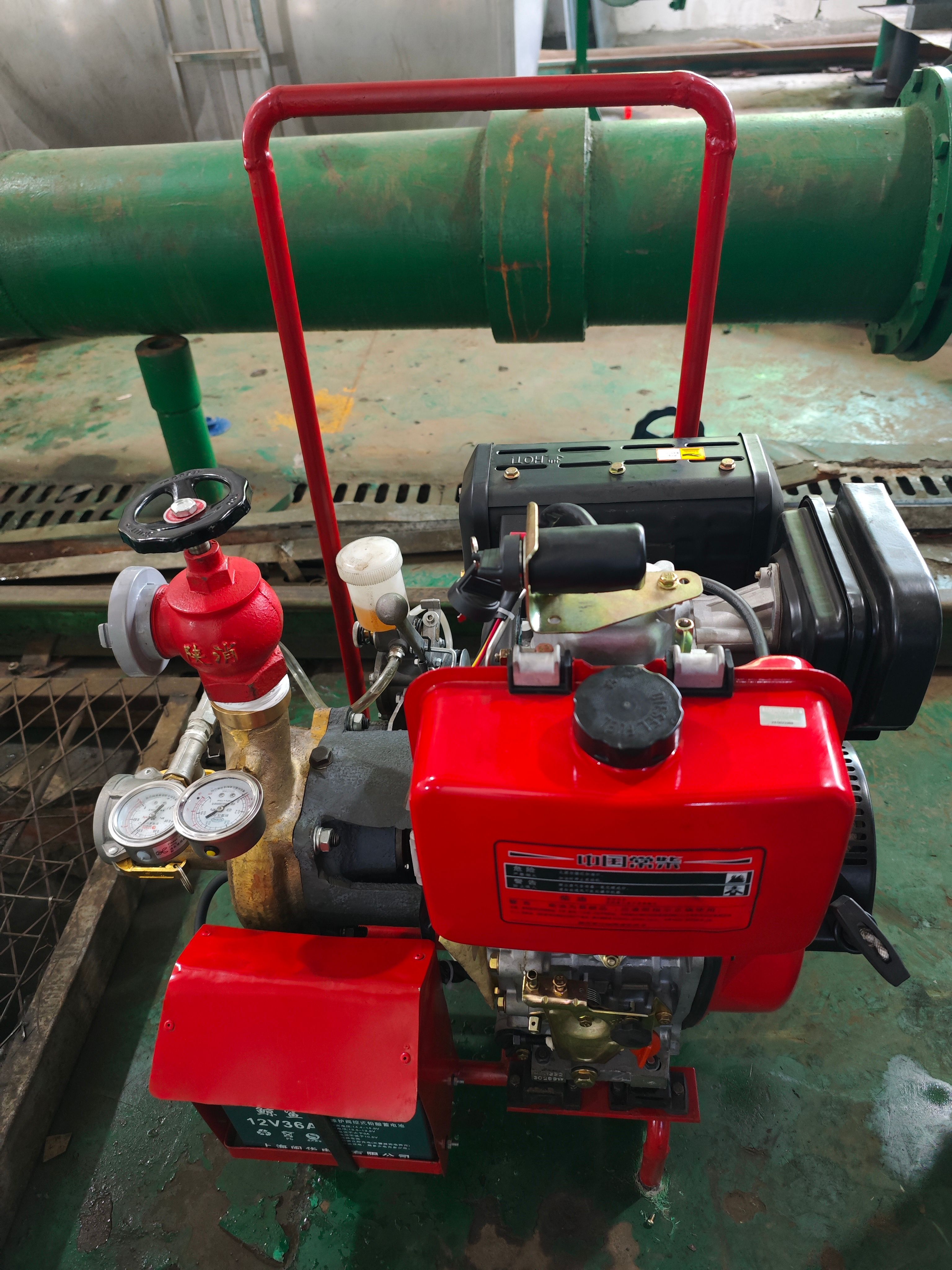

The picture of pump
.jpg "123123(1).jpg")
