BL Marine Vertical Direct-coupled Centrifugal Fire Pump
Date：2025-03-06Views：
BL Marine Vertical Direct-coupled Centrifugal Fire Pump
Overview
BL (L), CZ Series marine horizontal (vertical) direct-coupled centrifugal pump, for the transport of water and physical and chemical properties similar to liquid water. This type of pump is BA type pump based on the improvement of the structure, has the advantages of small, light weight, simple structure and convenient handling characteristics. The performance parameters of BA pump with the same. Liquid temperature not exceeding 100℃, with mechanical seal. I produced BL type marine centrifugal pump impeller with silicon brass, a pump shaft is made of stainless steel, suitable for ships pumping bilge water, main and auxiliary cooling water, fire and other.
Model Explanation
2BL (L) -6A
2—Inlet diameter 2 inch
BL—Marine horizontal direct-coupled centrifugal pump
L— Vertical
6—Specific speed divided by10
A(B)—Impeller processed with 1（2）time cutting
CZ100-160A
CZ—Marine vertical direct-coupled centrifugal pump
100—Export diameter100 mm
160—Impeller 160mm
A—Impeller processed with one cutting
Structural Specifications

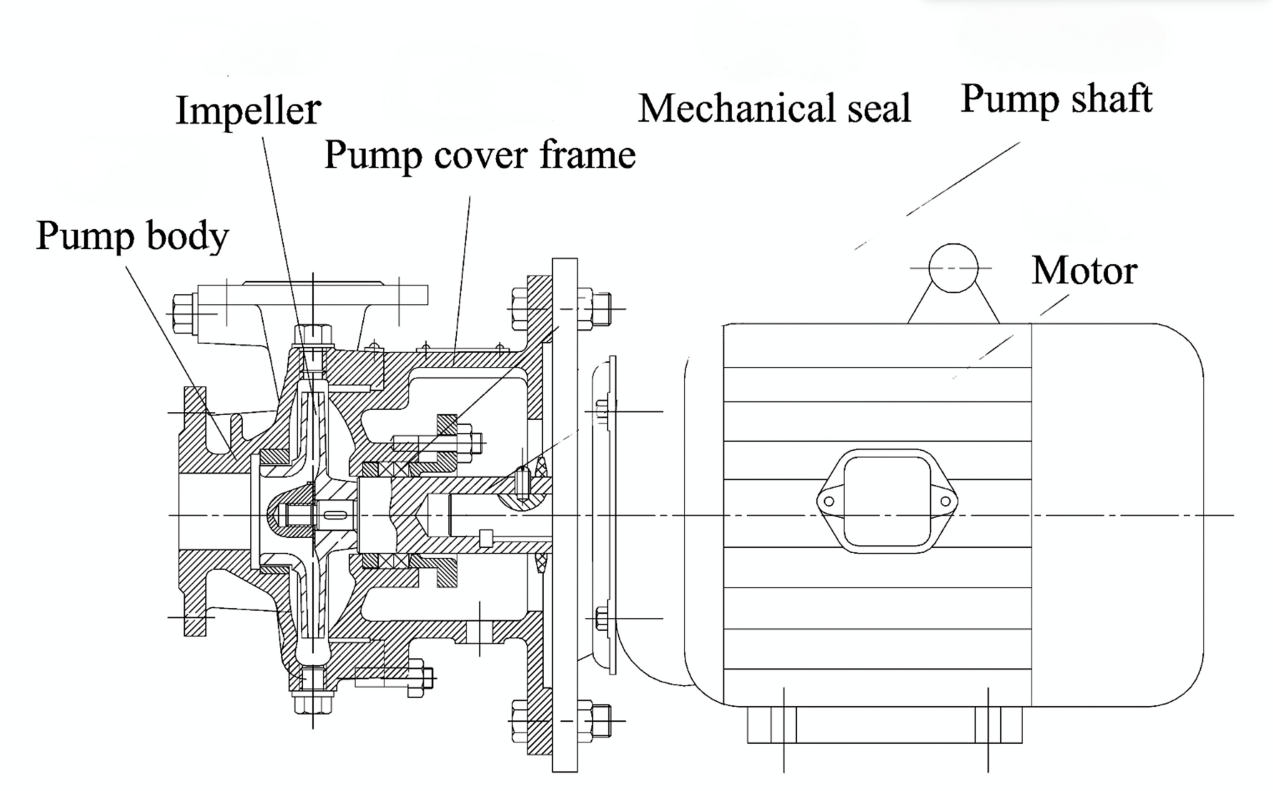

BL
BLL(CZ)
Performance Parameter
BL(L) | 50HZ/2900RPM | 60HZ/3500RPM | 50HZ/60HZ | |||||||
Type | Capacity (m3/h) | Head (m) | Motor power (kW) | Capacity (m3/h) | Head (m) | Motor power (kW) | Efficiency (%) | (NPSH)r (m) | Impeller dia. (mm) | Inlet/out dia. (mm) |
11/2BL-6 | 6 | 20.3 | 1.5 | 7.2 | 29.2 | 2.2 | 44 | 6.6 | 128 | 40/32 |
11 | 17.4 | 13.2 | 25 | 55.5 | 6.7 | |||||
14 | 14 | 16.8 | 20 | 53 | 6 | |||||
11/2BL-6A | 5 | 16 | 1.5 | 6 | 23 | 2.2 | 38 | 6.5 | 115 | 40/32 |
9.5 | 14.2 | 11.4 | 20.4 | 51.5 | 6.9 | |||||
13.5 | 11.2 | 16.2 | 16 | 50 | 6.1 | |||||
11/2BL-6B | 4.5 | 12.8 | 1.1 | 5.4 | 18.4 | 1.5 | 35 | 6.4 | 105 | 40/32 |
9 | 11.4 | 10.8 | 16.4 | 49 | 7 | |||||
13 | 8.8 | 15.6 | 12.6 | 45 | 6.3 | |||||
2BL-6 | 10 | 34.5 | 4 | 12 | 49.7 | 7.5 | 50.6 | 8.7 | 162 | 50/40 |
20 | 30.8 | 24 | 44.3 | 64 | 7.2 | |||||
30 | 24 | 36 | 34.5 | 63.5 | 5.7 | |||||
2BL-6A | 10 | 28.5 | 3 | 12 | 41 | 5.5 | 54.5 | 8.7 | 148 | 50/40 |
20 | 25.2 | 24 | 36.3 | 65.6 | 7.2 | |||||
30 | 20 | 36 | 28.8 | 64.1 | 5.7 | |||||
2BL-9 | 11 | 21 | 2.2 | 13.2 | 30.2 | 4 | 56 | 8 | 127 | 50/40 |
20 | 18.5 | 24 | 26.6 | 68 | 6.8 | |||||
25 | 16 | 30 | 23 | 66 | 6 | |||||
2BL-9A | 10 | 16.8 | 1.5 | 12 | 24 | 3 | 54 | 8.1 | 117 | 50/40 |
17 | 15 | 20.4 | 21.6 | 65 | 7.3 | |||||
22 | 13 | 26.4 | 18.7 | 63 | 6.5 | |||||
3BL-6 | 30 | 62 | 15 | 36 | 89.3 | 22 | 54.4 | 7.7 | 218 | 80/50 |
45 | 57 | 54 | 82.1 | 63.5 | 6.7 | |||||
60 | 50 | 72 | 72 | 66.3 | 5.6 | |||||
70 | 44.5 | 84 | 64 | 64 | 4.7 | |||||
3BL-6A | 30 | 45 | 11 | 36 | 64.8 | 18.5 | 55 | 7.5 | 192 | 80/50 |
40 | 41.5 | 48 | 59.8 | 62 | 7.1 | |||||
50 | 37.5 | 60 | 54 | 64 | 6.4 | |||||
60 | 30 | 72 | 43.2 | 59 | 6 | |||||
3BL-9 | 30 | 35.5 | 7.5 | 36 | 51 | 15 | 62.5 | 7 | 168 | 80/50 |
45 | 32.6 | 54 | 47 | 71.5 | 5 | |||||
55 | 28.8 | 66 | 41.4 | 68.2 | 3 | |||||
3BL-9A | 25 | 26.2 | 5.5 | 30 | 37.7 | 7.5 | 63.7 | 7 | 145 | 80/50 |
35 | 25 | 42 | 36 | 70.8 | 6.4 | |||||
45 | 22.5 | 54 | 32.4 | 71.2 | 5 | |||||
3BL-13 | 32.4 | 21.5 | 4 | 38.8 | 31 | 7.5 | 76 | 6.5 | 132 | 80/50 |
45 | 18.8 | 54 | 27 | 80 | 5.5 | |||||
52.2 | 15.6 | 62.6 | 22.7 | 75 | 5 | |||||
3BL-13A | 29.5 | 17.4 | 3 | 35.4 | 25 | 5.5 | 75 | 6 | 120 | 80/50 |
39.6 | 15 | 47.5 | 21.6 | 80 | 5 | |||||
48.6 | 12 | 58 | 17.3 | 74 | 4.5 | |||||
3BL-13B | 28 | 13.5 | 2.2 | 33.6 | 19.4 | 4 | 63 | 5.5 | 110 | 80/50 |
34.2 | 12 | 41 | 17.3 | 65 | 5 | |||||
41.5 | 9.5 | 49.8 | 13.7 | 62 | 4 | |||||
4BL-12 | 65 | 37.7 | 15 | 78 | 54.3 | 22 | 72 | 6.7 | 178 | 100/80 |
90 | 34.6 | 108 | 50 | 78 | 5.8 | |||||
120 | 28 | 144 | 40.3 | 74.5 | 3.3 | |||||
4BL-12A | 60 | 31.6 | 11 | 72 | 45.5 | 18.5 | 70 | 6.9 | 163 | 100/80 |
85 | 28.6 | 102 | 41.2 | 76 | 6 | |||||
110 | 23.3 | 132 | 33.5 | 73.5 | 4.5 | |||||
4BL-18 | 65 | 22.6 | 11 | 78 | 32.5 | 18.5 | 75 | 5 | 143 | 100/80 |
90 | 20 | 108 | 28.8 | 78 | ||||||
110 | 17.1 | 132 | 24.6 | 74 | ||||||
4BL-18A | 60 | 17.2 | 5.5 | 72 | 24.8 | 11 | 74 | 5 | 130 | 100/80 |
80 | 15.2 | 96 | 21.9 | 76 | ||||||
95 | 13.2 | 114 | 19 | 71.1 | ||||||
4BL-25 | 54 | 17.6 | 5.5 | 64.8 | 25.3 | 7.5 | 70 | 5 | 126 | 100/80 |
79 | 14.8 | 94.8 | 21.3 | 78 | ||||||
99 | 10 | 118.8 | 14.4 | 67 | ||||||
4BL-25A | 50 | 14 | 4 | 60 | 20.2 | 5.5 | 68.5 | 5 | 114 | 100/80 |
72 | 11 | 86.4 | 15.8 | 75 | ||||||
86 | 8.5 | 103.2 | 12.2 | 72 | ||||||
CZ | 50HZ/1450RPM | 60HZ/1800RPM | 50HZ/60HZ | |||||||
Type | Capacity (m3/h) |
Head (m) |
Motor power (kW) | Capacity (m3/h) |
Head (m) |
Motor power (kW) |
Efficiency (%) |
(NPSH)r (m) |
Impeller dia. (mm) |
Inlet/out dia. (mm) |
CZ100-160 | 136 | 10.7 | 7.5 | 163.2 | 15.4 | 15 | 78 | 4.5 | 175 | 125/100 |
CZ100-160A | 145 | 8.2 | 5.5 | 174 | 11.8 | 11 | 78 | 4.14 | 160 | 125/100 |
The picture of pump
