CPJ Marine Ejector Bilge Pump

Date:2025-03-06Views:

CPJ Marine Ejector Bilge Pump

Overview

The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for "spray, suction, mixed, expansion of" four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).

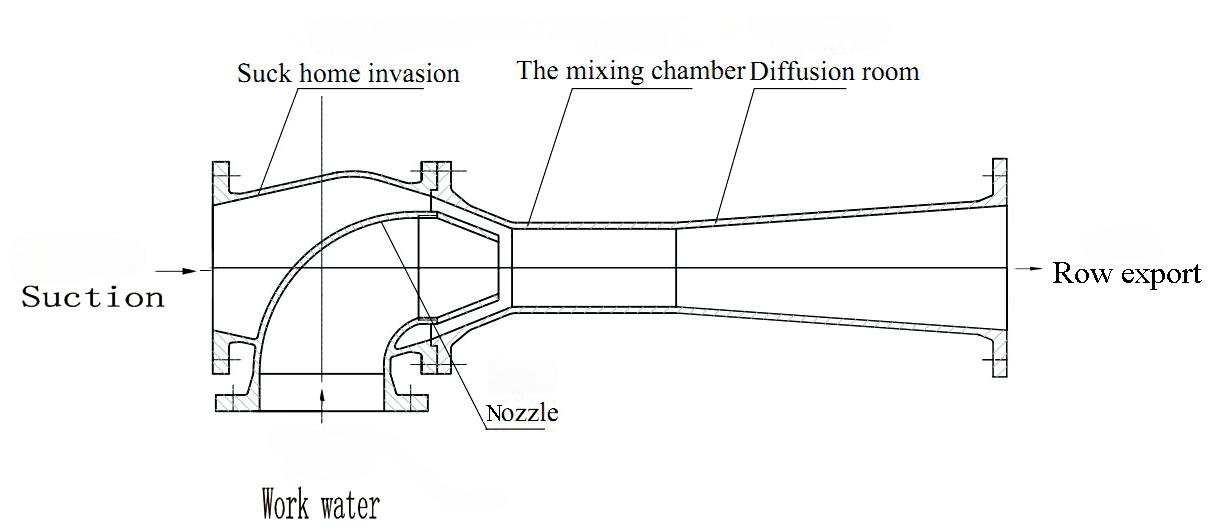

Structural  Specifications


                                                  CPJ

Model Explanation  CPJ40-50-65

   CP—Marine ejector pump

    J—Inlet form J

   40—Working water inlet diameter 40 mm

   50—Suction diameter 50 mm

   65—Discharge diameter 65 mm

Performance Parameter

Type

Capacity

(m3/h)

Discharge pressure

(m)

Inlet Head

(m)

Work water Pressure

(MPa)

Working Capacity

(m3/h)

Weight

(kg)

CPJ40-50-65

015

530

39

0.41.4

515

16

CPJ50-80-80

040

530

39

0.41.4

2045

26

CPJ80-100-100

070

530

39

0.41.4

4080

40

CPJ80-125-125

070

530

39

0.41.4

4080

60

CPJl00-125-125

0100

530

39

0.41.4

60120

60

CPJl00-150-150

0125

530

39

0.41.4

90150

75

CPJl25-150-200

0180

530

39

0.41.4

100220

130

CPJ150-200-200

0320

530

39

0.41.4

200370

165

CPJ150-200-250

0420

530

39

0.41.4

250500

180

CPJ200-200-250

0250

530

17

0.10.6

300700

190

CPJ250-250-300

0400

530

17

0.10.6

5001400

285

CPJ300-300-350

0600

530

17

0.10.6

9002000

370

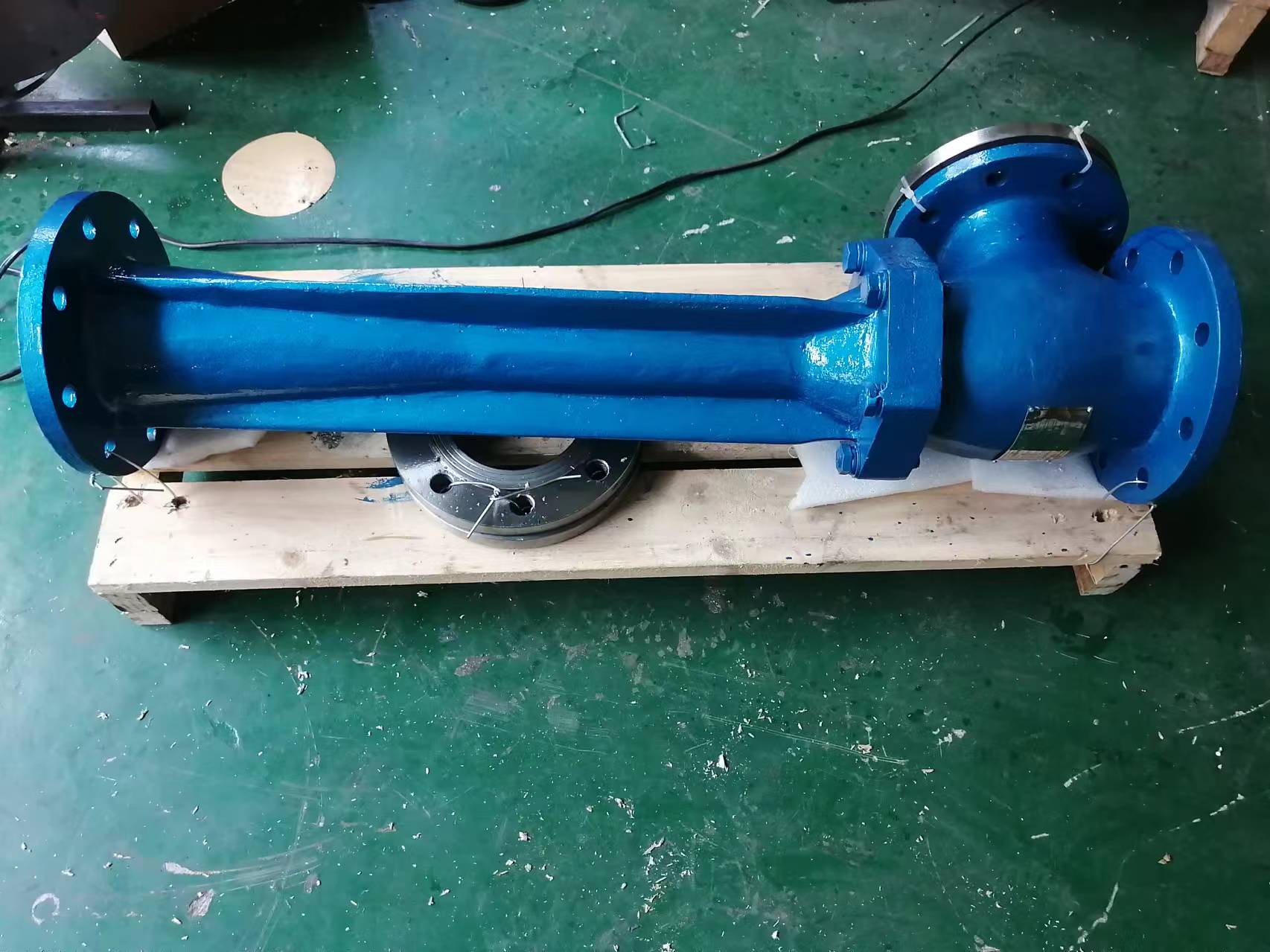

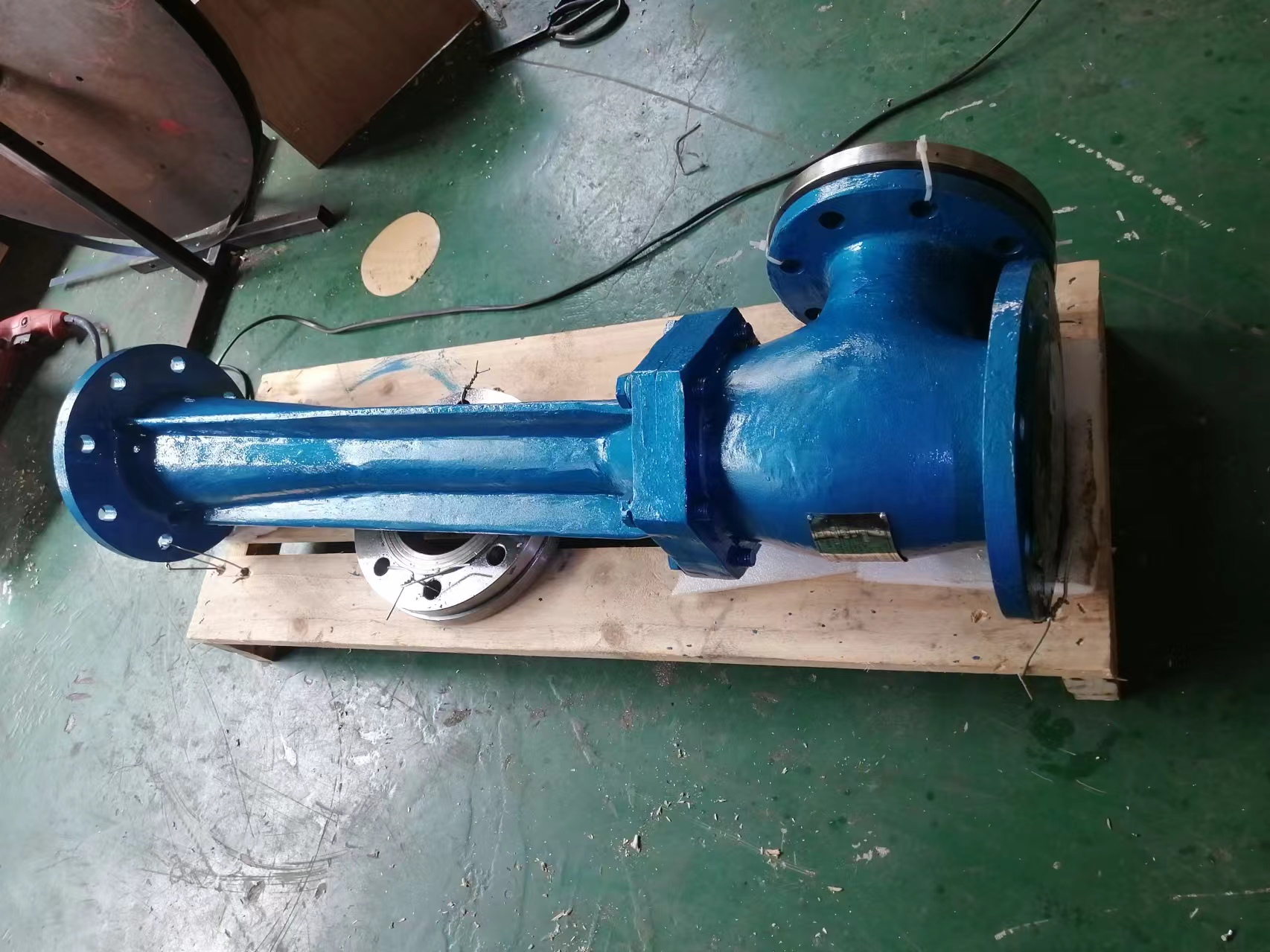

 The picture of pump
