CZWF Marine Self-priming Non-blocking Crushing Sewage Pump

Overview

CZWF Series marine self-priming pump without clogging impeller installed in front of crushing crushing knife, is suitable for drainage dirt in the crushing and pumping, such as paper, food residue, sludge, sludge manure, fish etc. It is a self-priming and non-blocking drainage in one, with outer recirculation and, and through the pump body, impeller 's unique design, can be like a common self-priming pumps that do not need to install the valve and irrigation water, and the suction containing large particles of solid and long fiber impurity in liquid, and can be widely applied to the bilge drain, the ship drainage treatment, municipal drainage project, farming, light industry, paper making, River textile, food, chemical, electrical, fiber, pulp and mixed suspension and other chemical medium in the most ideal impurity pump. Has the advantages of simple structure, good self-priming performance, drainage capability, high efficiency and energy saving, convenient repair and maintenance characteristics, the drainage pump Series products is a national initiative.

Model Explanation  CZW（F）50-15-30

CZW—Series marine self priming drainage pump

F—Crushing model

50—Inlet diameter 50mm

15—Flow 15m³/h

30—Head 30m

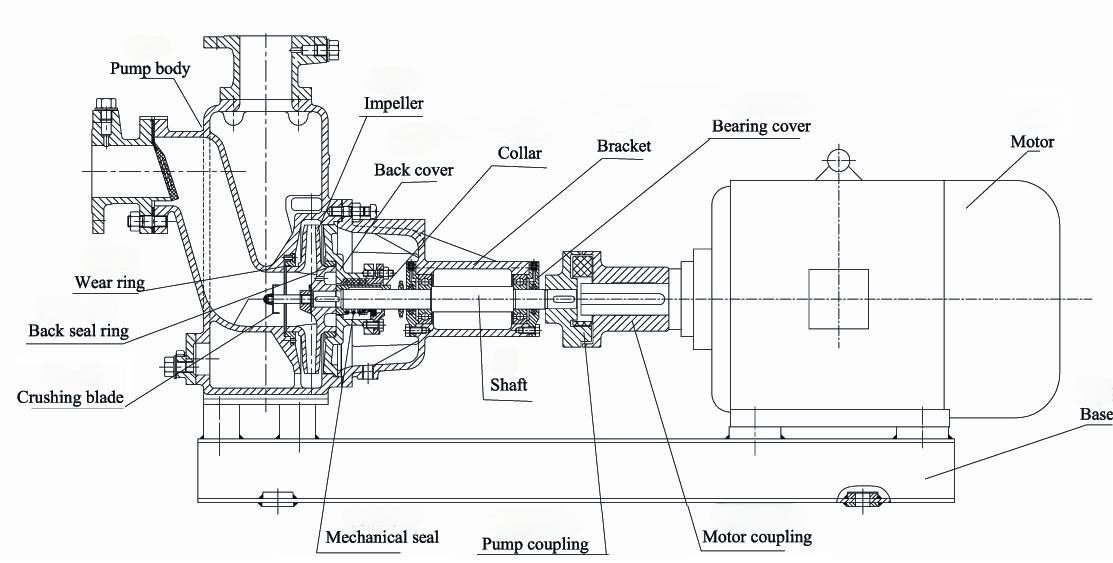

Structural Specifications:

The excellent design of our company's engineers and the components made of high-quality materials can make the pump have longer service time, lower maintenance frequency, and higher operating stability in complex environments, but it can also generate different prices.If you need more details about this, you can click on the news or send an email to ask us

Performance Parameter

(In addition, please provide the parameter of the marine pump you need and we can customize the suitable type for you.)

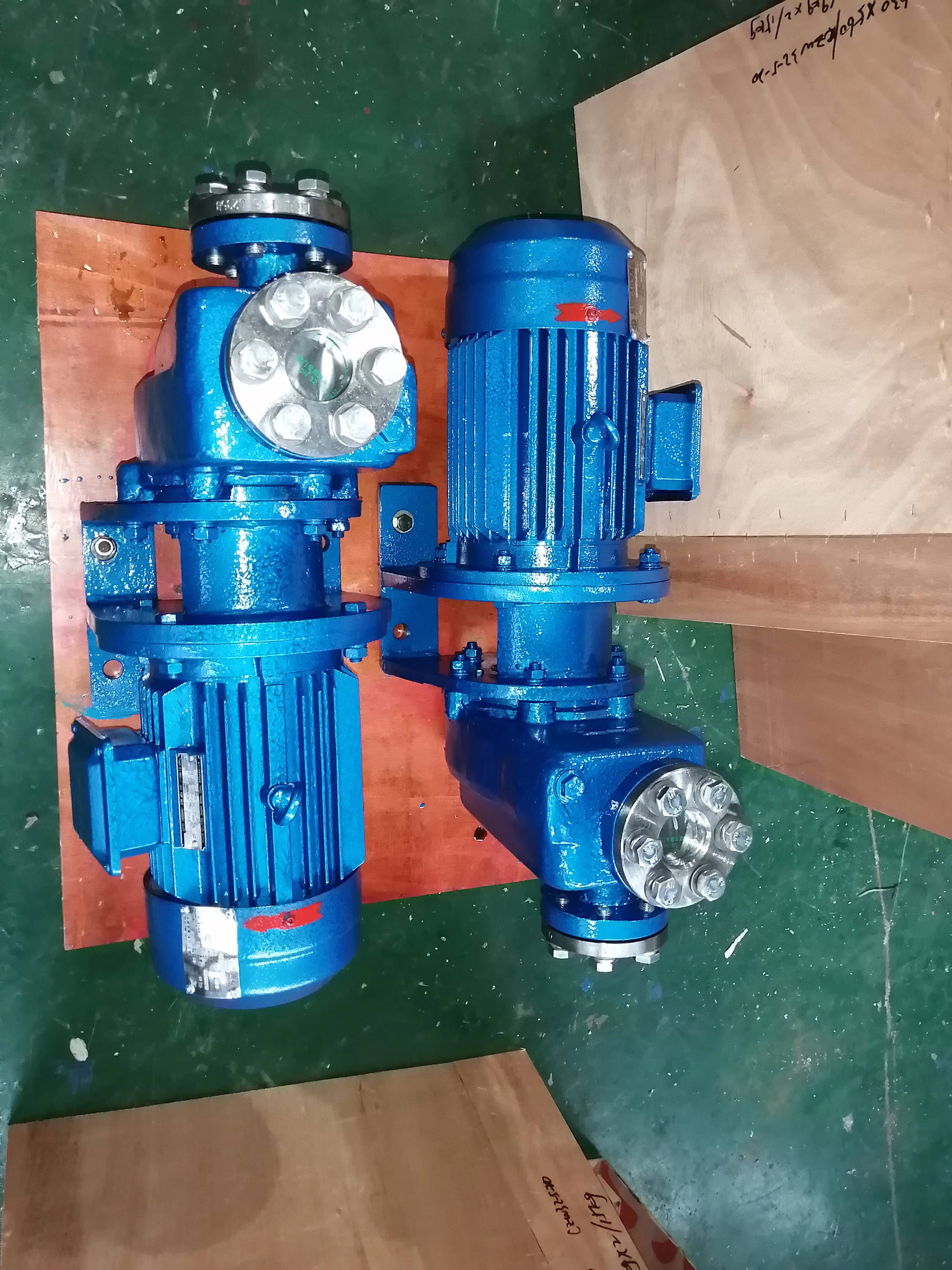

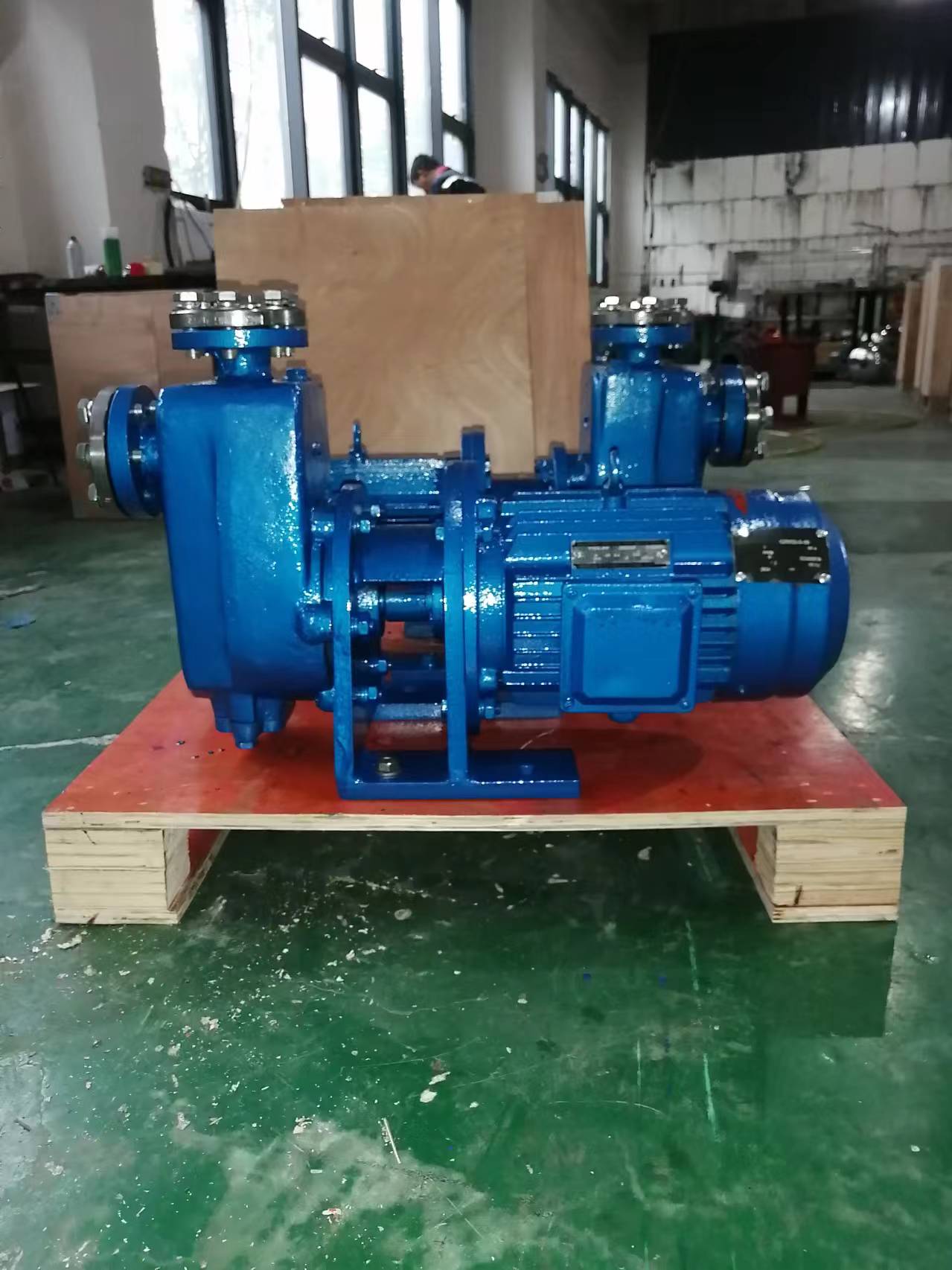

Pump Picture
