CPJ, CP(T) Series Marine Ejector Pump
Date：2022-05-30Views：
CPJ, CP(T) Series Marine Ejector Pump
Overview
The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for "spray, suction, mixed, expansion of" four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).

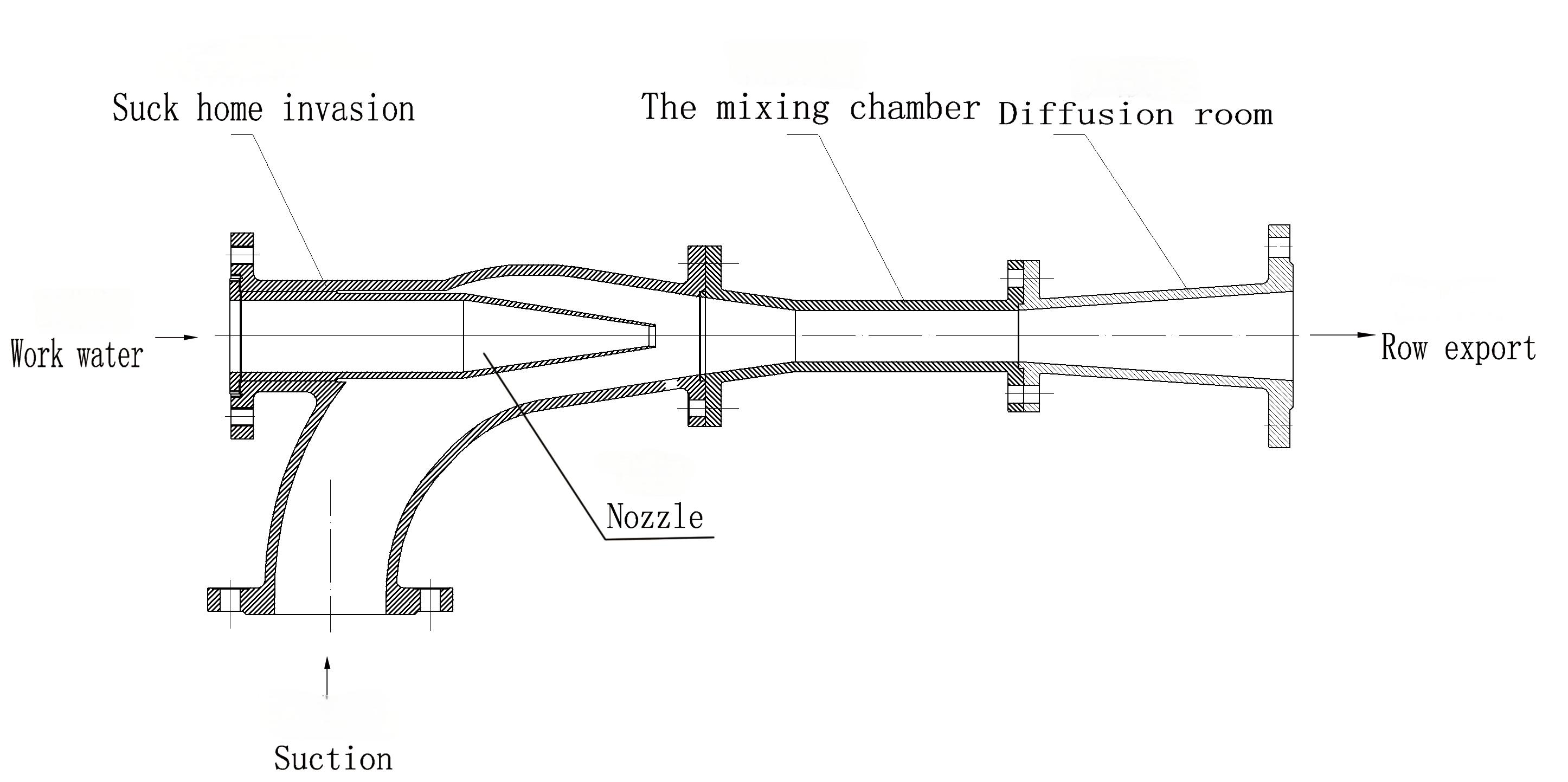

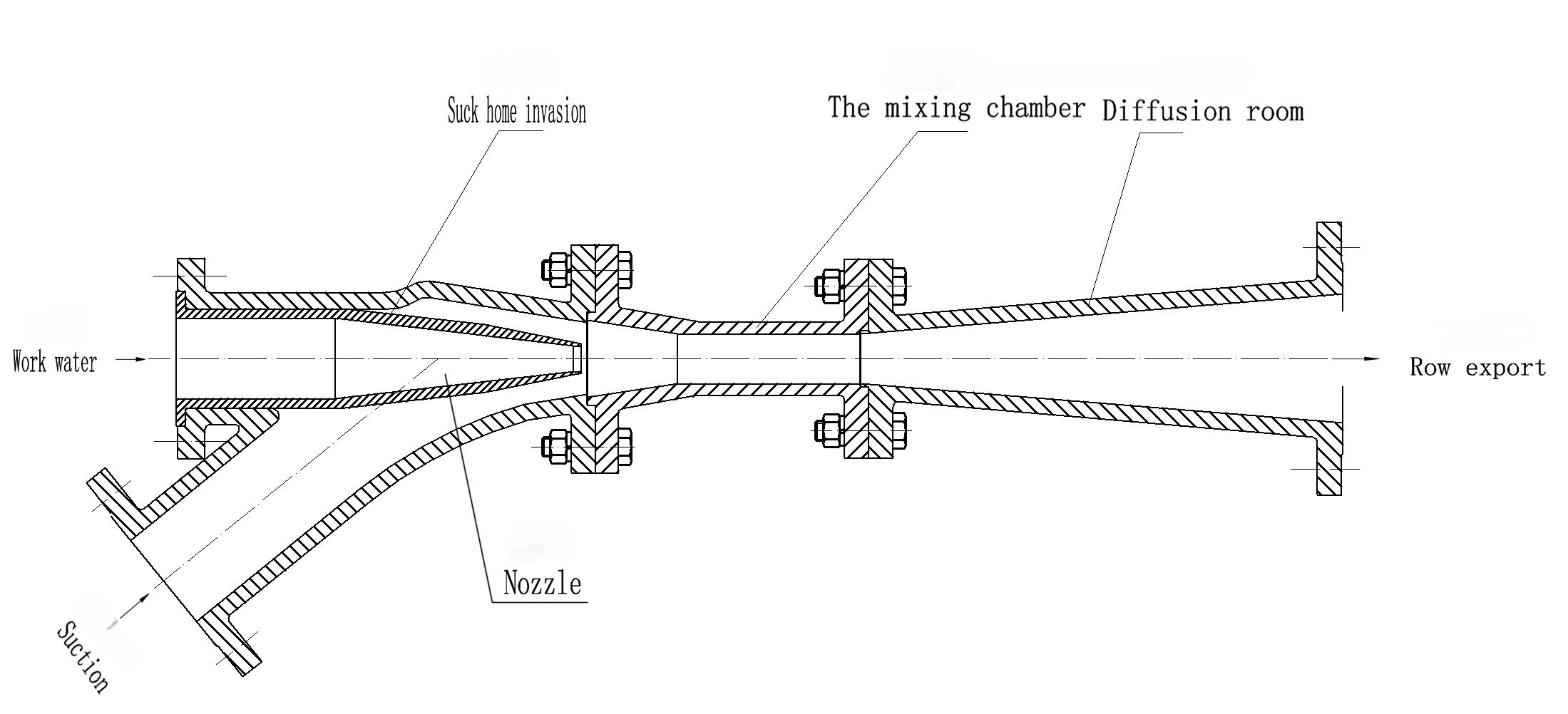

Structural Specifications
CPJ
CP
CPT
Model Explanation
CPJ Series Marine Ejector Pump CPJ40-50-65
CP— Marine ejector pump
J— Inlet form J
40— Working water inlet diameter 40 mm
50— Suction diameter 50 mm
65— Discharge diameter 65 mm
Type | Capacity (m3/h) | Discharge pressure (m) | Inlet Head (m) | Work water Pressure (MPa) | Working Capacity (m3/h) | Weight (kg) |
CPJ40-50-65 | 0～15 | 5～30 | 3～9 | 0.4～1.4 | 5～15 | 16 |
CPJ50-80-80 | 0～40 | 5～30 | 3～9 | 0.4～1.4 | 20～45 | 26 |
CPJ80-100-100 | 0～70 | 5～30 | 3～9 | 0.4～1.4 | 40～80 | 40 |
CPJ80-125-125 | 0～70 | 5～30 | 3～9 | 0.4～1.4 | 40～80 | 60 |
CPJl00-125-125 | 0～100 | 5～30 | 3～9 | 0.4～1.4 | 60～120 | 60 |
CPJl00-150-150 | 0～125 | 5～30 | 3～9 | 0.4～1.4 | 90～150 | 75 |
CPJl25-150-200 | 0～180 | 5～30 | 3～9 | 0.4～1.4 | 100～220 | 130 |
CPJ150-200-200 | 0～320 | 5～30 | 3～9 | 0.4～1.4 | 200～370 | 165 |
CPJ150-200-250 | 0～420 | 5～30 | 3～9 | 0.4～1.4 | 250～500 | 180 |
CPJ200-200-250 | 0～250 | 5～30 | 1～7 | 0.1～0.6 | 300～700 | 190 |
CPJ250-250-300 | 0～400 | 5～30 | 1～7 | 0.1～0.6 | 500～1400 | 285 |
CPJ300-300-350 | 0～600 | 5～30 | 1～7 | 0.1～0.6 | 900～2000 | 370 |
CP(T) Series Marine Ejector Pump CP(T)10-0.7
CP — Marine ejector pump
10— Flow 10m3/h
0.7— Working water pressure 0.7Mpa
T— Perpendicular type
Type | Work water/ Intel/ Outlet flange (mm) | Capacity (m3/h) | Pressure (Mpa) | Wastage (m3/h) | Hs(m) | Delivery (m) | Weight(kg) | |
Copper | Iron | |||||||
CP5-0.7 | 25/50/32 | 5 | 0.7 | 3.6 | 4 | 8 | 11 | 10 |
CP5-0.3 | 32/50/50 | 5 | 0.3 | 6 | 4 | 5 | 17 | 15 |
CP10-0.7 | 32/50/50 | 10 | 0.7 | 7 | 4 | 8 | 14 | 13 |
CP10-0.3 | 40/65/65 | 10 | 0.3 | 12 | 4 | 5 | 23 | 21 |
CP15-0.5 | 50/6580 | 15 | 0.5 | 24 | 7 | 11 | 27 | 23 |
CP15-0.3 | 50/65/80 | 15 | 0.3 | 19 | 4 | 5 | 27 | 23 |
CP20-0.7 | 50/65/80 | 20 | 0.7 | 14 | 4 | 8 | 27 | 23 |
CP20-0.3 | 50/65/80 | 20 | 0.3 | 24 | 4 | 5 | 30 | 28 |
CP30-0.7 | 50/80/65 | 30 | 0.7 | 21 | 4 | 8 | 30 | 28 |
CP30-0.3 | 65/100/100 | 30 | 0.3 | 36 | 4 | 5 | 43 | 41 |
CP50-0.7 | 65/100/80 | 50 | 0.7 | 35 | 4 | 8 | 45 | 43 |
CP50-0.3 | 80/125/125 | 50 | 0.3 | 55 | 3 | 6 | 50 | 47 |
CP100-0.7 | 80/150/125 | 100 | 0.7 | 60 | 2 | 9 | 90 | 82 |
CP100-0.3 | 125/175/150 | 100 | 0.3 | 110 | 3 | 6 | 88 | 80 |
CP200-0.7 | 125/200/200 | 200 | 0.7 | 120 | 2 | 9 | 112 | 103 |
Type | Work water/ Intel/ Outlet flange (mm) | Capacity (m3/h) | Pressure (Mpa) | Wastage (m3/h) | Hs(m) | Delivery (m) | Weight (kg) | |
CP5-0.3T | 32/50/50 | 5 | 0.3 | 6 | 4 | 5 | 19.5 | |
CP10-0.3T | 40/65/65 | 10 | 0.3 | 12 | 4 | 5 | 23.5 | |
CP15-0.3 T | 50/65/80 | 15 | 0.3 | 19 | 4 | 5 | 28 | |

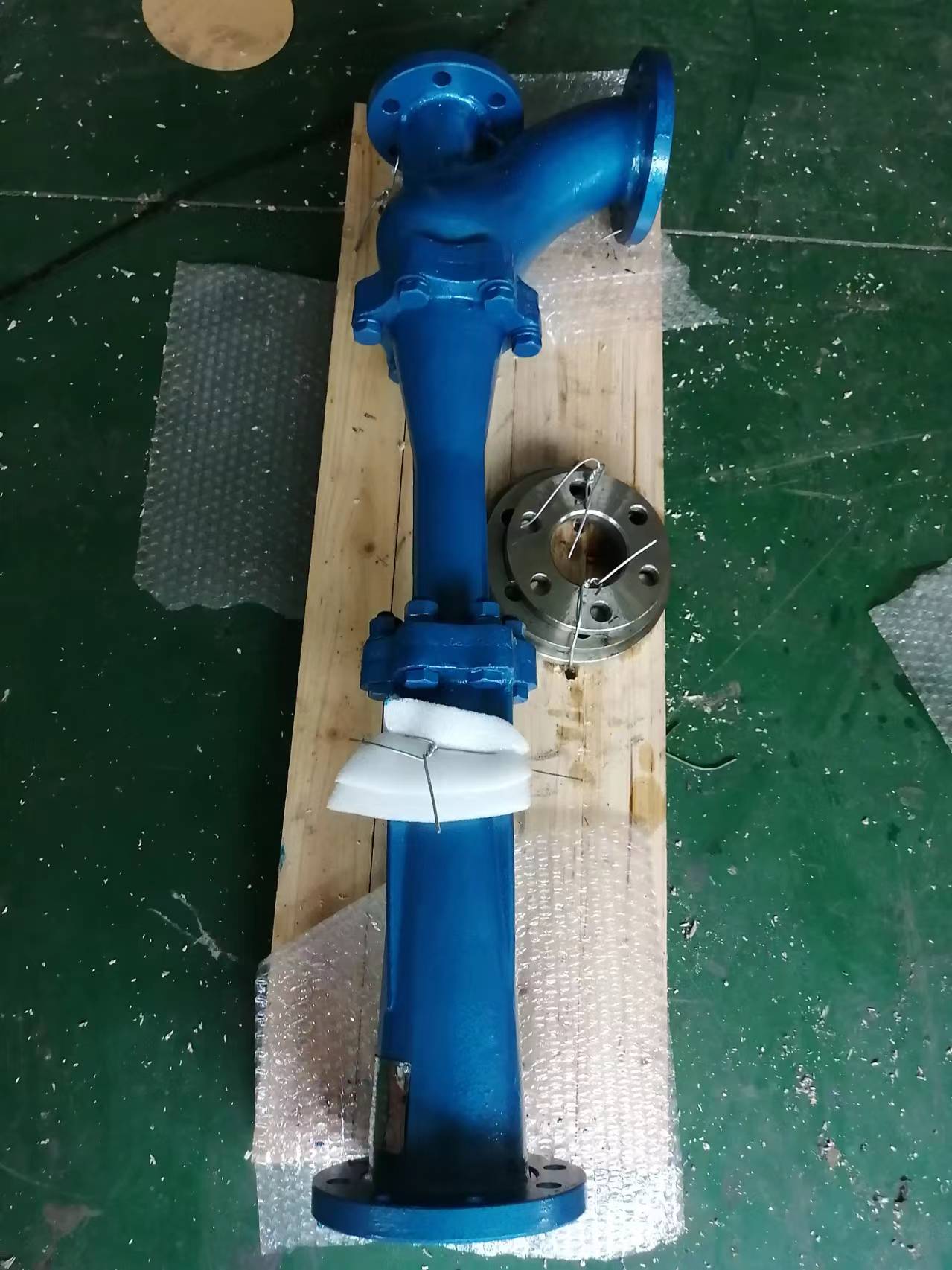

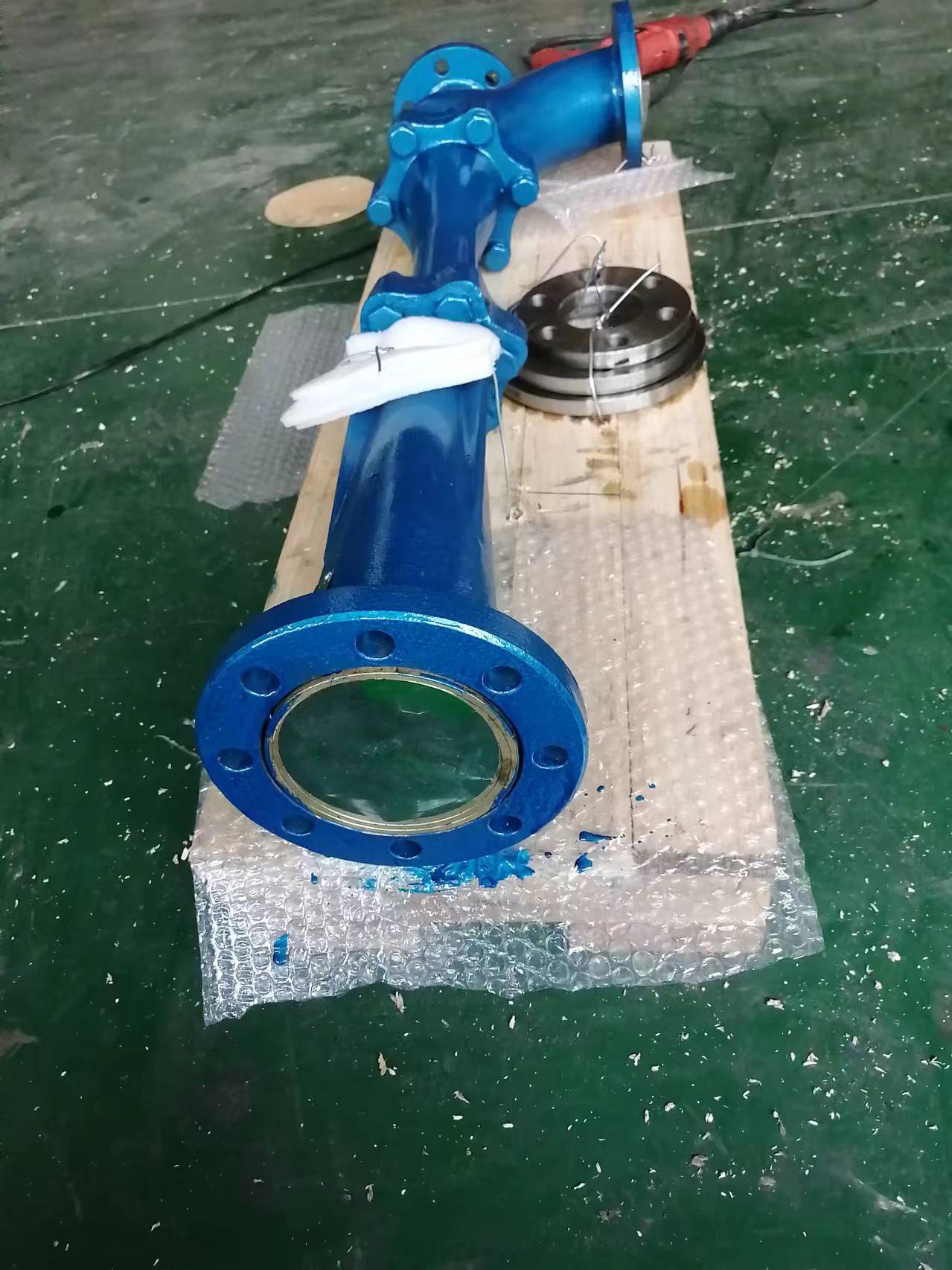

CP15-0.5T | 50/65/80 | 15 | 0.5 | 24 | 7 | 11 | 28 | |
CP20-0.3T | 50/65/80 | 20 | 0.3 | 24 | 4 | 5 | 31 | |
CP30-0.3T | 65/100/100 | 30 | 0.3 | 36 | 4 | 5 | 50 | |
CP40-0.3T | 65/100/100 | 40 | 0.3 | 47 | 4 | 6 | 49.5 | |
CP50-0.3T | 80/125/125 | 50 | 0.3 | 55 | 3 | 6 | 75 | |
CP100-0.3T | 125/175/150 | 100 | 0.3 | 110 | 3 | 8 | 94.5 | |
CP5-0.7T | 25/50/32 | 5 | 0.7 | 3.6 | 4 | 8 | 14 | |
CP10-0.7T | 32/50/50 | 10 | 0.7 | 7 | 4 | 8 | 20 | |
CP20-0.7T | 50/65/80 | 20 | 0.7 | 14 | 4 | 8 | 28.5 | |
CP30-0.7T | 50/80/65 | 30 | 0.7 | 21 | 4 | 8 | 32 | |
CP50-0.7T | 65/100/80 | 50 | 0.7 | 35 | 4 | 8 | 48 | |
CP60-0.7T | 80/125/125 | 60 | 0.7 | 50 | 6 | 6 | 55.5 | |
CP80-0.7T | 80/125/125 | 80 | 0.7 | 90 | 5 | 10 | 75 | |
CP100-0.7T | 80/150/125 | 100 | 0.7 | 60 | 2 | 9 | 71.5 | |
CP150-0.7T | 80/150/150 | 150 | 0.7 | 100 | 2 | 9 | 77 | |
CP200-0.7T | 125/200/200 | 200 | 0.7 | 120 | 2 | 9 | 106 | |
CP10-1.0T | 50/50/65 | 10 | 1.0 | 16.7 | 5 | 2 | 16 | |
CP50-1.0T | 80/125/125 | 50 | 1.0 | 64 | 5 | 2 | 52 | |
CP100-0.2T | 200/200/250 | 100 | 0.2 | 305 | 3 | 7 | 120 | |
