TPY Marine Vertical Stainless Steel Multistage Fire Pump
Date：2025-03-06Views：
TPY Marine Vertical Stainless Steel Multistage Fire Pump
Overview
TPY Series vertical multistage centrifugal pump, all material is stainless steel. For conveying the temperature between -40℃ to +120℃ of water, soft water, swimming pool water or slightly alkaline, and other stainless steel (304 or 316L) had no significant corrosion of the liquid, widely used in liquid transport, hot and cold clean water and softened water, mineral water and distilled off circulation and pressurization. Low noise, corrosion resistance, beautiful appearance, small size, smooth operation, easy installation, long service life.
Model Explanation TPY2-69
TPY—Stainless-steel vertical multi-stage centrifugal pump
2—Capacity 2 m3/h
67—Head 67 m

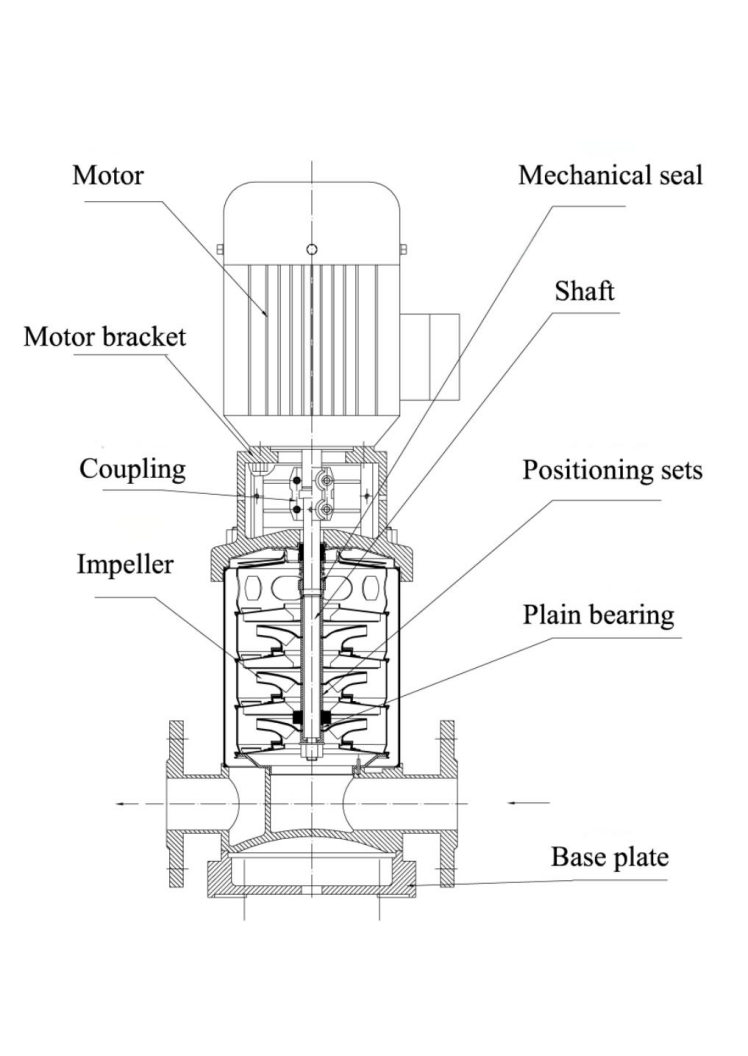

Structural Specifications
Product range (50HZ/380V)
Range | TPY1 | TPY2 | TPY3 | TPY4 | TPY5 | TPY8 | TPY12 | TPY16 | TPY20 |
Capacity (m3/h) | 1 | 2 | 3 | 4 | 5 | 8 | 12 | 16 | 20 |
Flow limitation(m3/h) | 0.6～2.0 | 1～3.5 | 1.2～4.0 | 2～8 | 2～8 | 5～12 | 7～16 | 8～22 | 10～28 |
Max pressure(bar) | 22 | 22 | 22 | 22 | 22 | 21 | 21 | 21 | 23 |
Motor power(kW) | 0.37～1.5 | 0.37～3 | 0.37～3 | 0.55～4 | 0.37～4 | 1.1～7.5 | 1.5～11 | 2.2～15 | 1.1～18.5 |
Maximum efficiency(%) | 48 | 48 | 57 | 60 | 62 | 63 | 63 | 68 | 69 |
Connections | |||||||||
Flange | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN50 | DN50 |
Pipe thread | ZG11/4 | ZG11/4 | ZG11/4 | ZG11/4 | ZG11/4 | ZG11/2 | ZG11/2 | ZG2 | ZG2 |
Sleeve meet face | DN32 | DN32 | DN32 | DN32 | DN32 | DN50 | DN50 | DN50 | DN50 |
Range | TPY32 | TPY45 | TPY64 | TYP90 | TPY120 | TPY150 | TPY200 |
Capacity(m3/h) | 32 | 45 | 64 | 90 | 120 | 150 | 200 |
Flow limitation(m3/h) | 16～40 | 25～55 | 30～80 | 50～120 | 60～150 | 80～180 | 100～240 |
Max pressure(bar) | 26 | 26 | 20 | 20 | 16 | 16 | 16 |
Motor power(kW) | 2.2～30 | 2.2～30 | 4～45 | 5.5～45 | 11-75 | 11-75 | 18.5-110 |
Maximum efficiency(%) | 76 | 78 | 76 | 75 | 74 | 73 | 79 |
Connections | |||||||
Flange | DN65 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 |

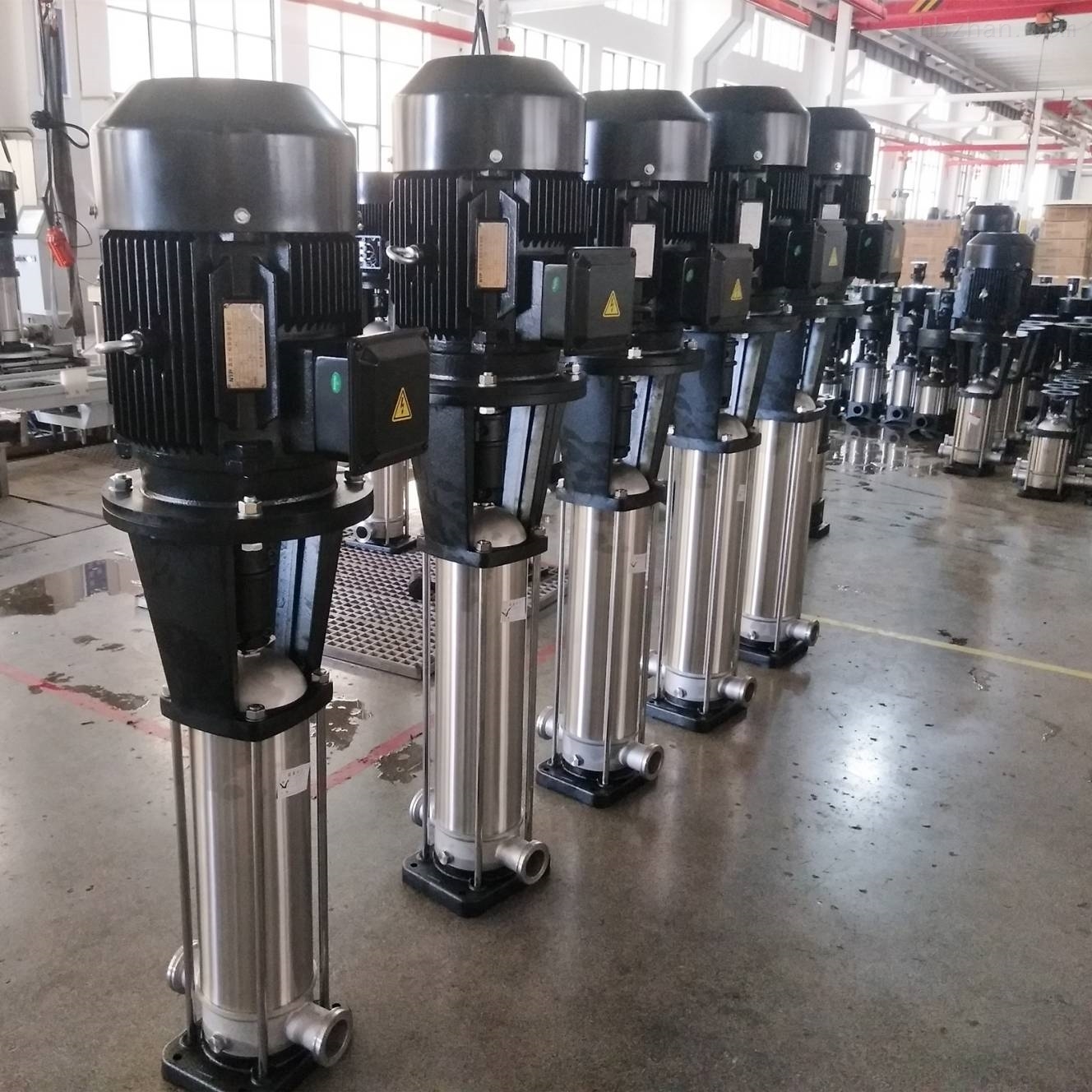

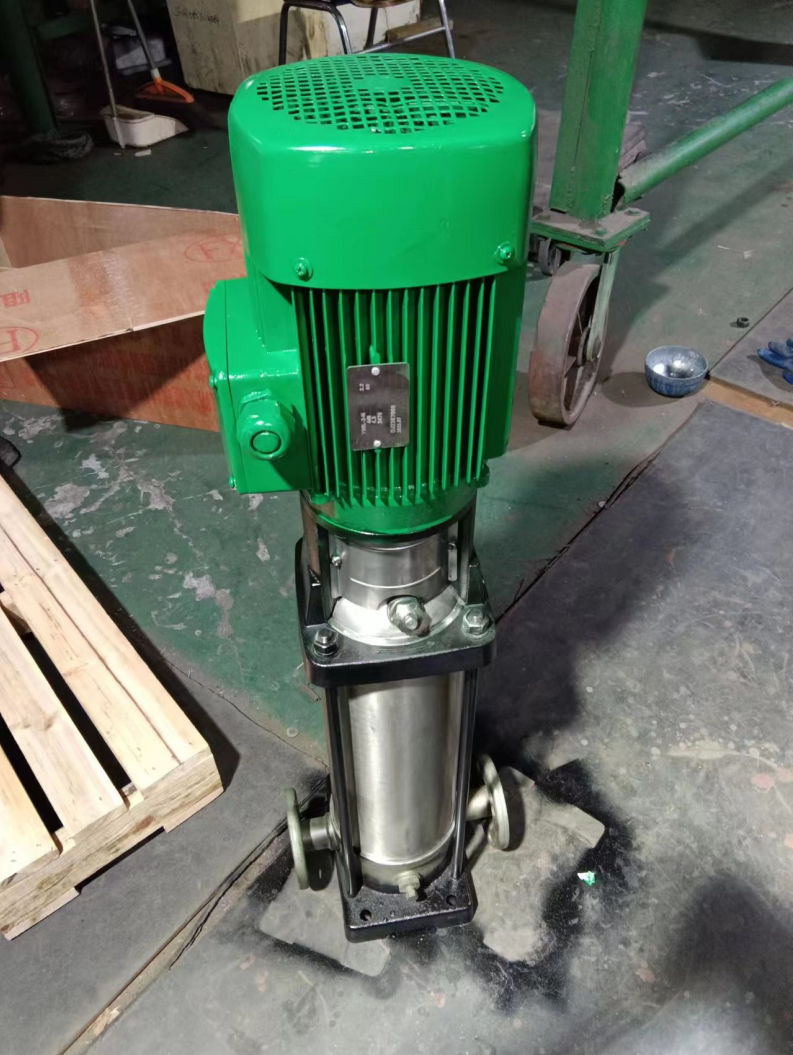

The picture of pump
