TSH Marine Horizontal Single Stage Fire Pump

Date：2025-03-06Views：

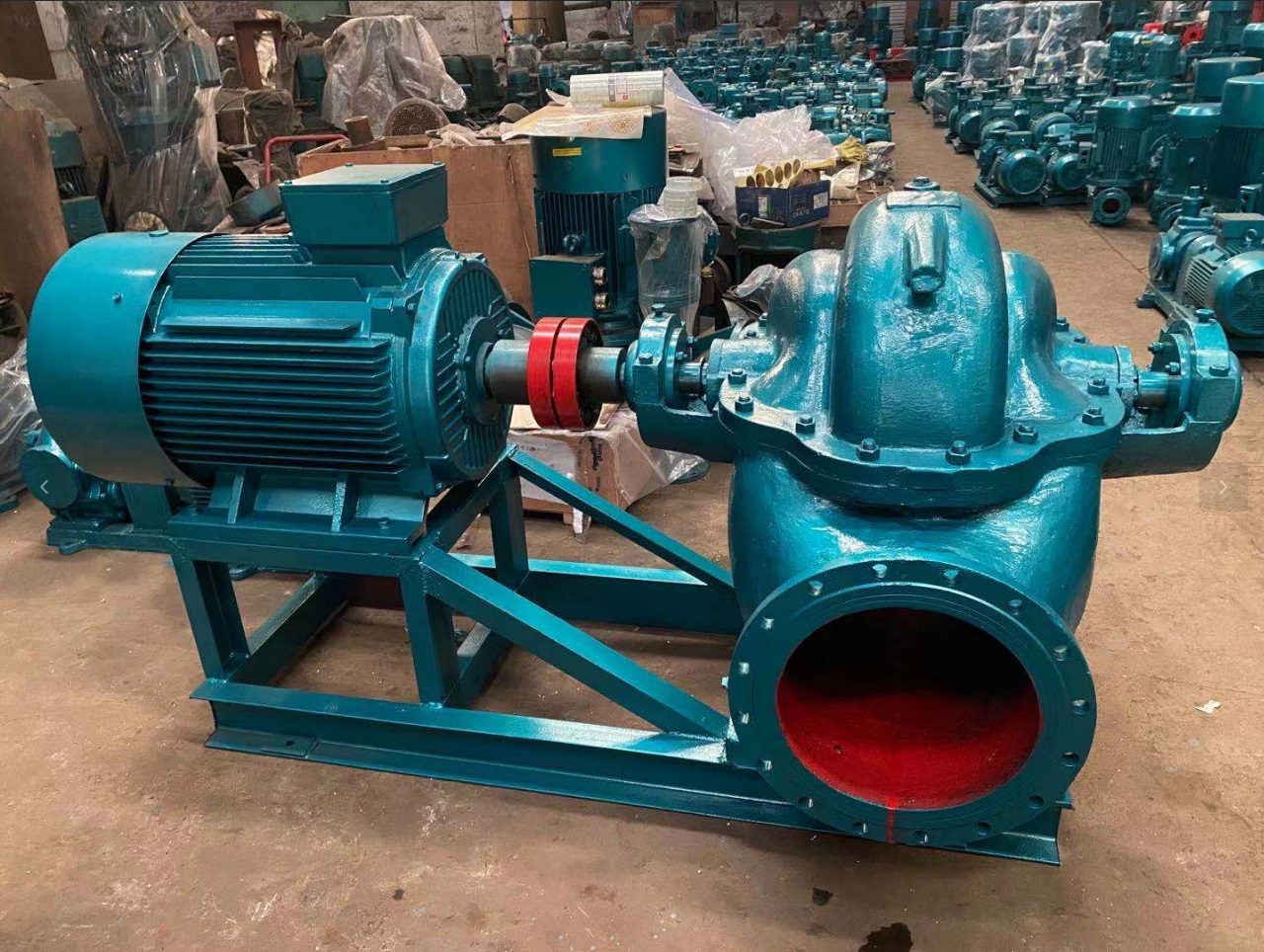

TSH Marine Horizontal Single Stage Fire Pump

Overview

TSH, TS, TJSH Series single stage double suction centrifugal pump, for the transport of water and physical, chemical properties similar to the use of liquid water, liquid temperature not exceeding 80℃, installation of mechanical seal after the liquid temperature can reach 80℃~120℃. Applicable to ships, mines, factories, city water supply, power plants and large water conservancy project, agricultural irrigation.

Model Explanation 8TSH（200TS, TJSH）-6（95）A(B)

8—Outlet diameter 8 inch

TSH—Counterclockwise rotation pump single stage double suction middle open centrifugal pump

TS—Clockwise rotation of the single stage double suction centrifugal pump

TJSH—Mechanical seal of hot water single stage double suction middle open centrifugal pump

200—Inlet diameter 200mm

6—Pump specific speed number is divided by 10 and choose the integral quantity

95—Head 95 m

A(B)—Impeller processed with 1（2）time cutting

Structural Specifications


Horizontal


Vertical

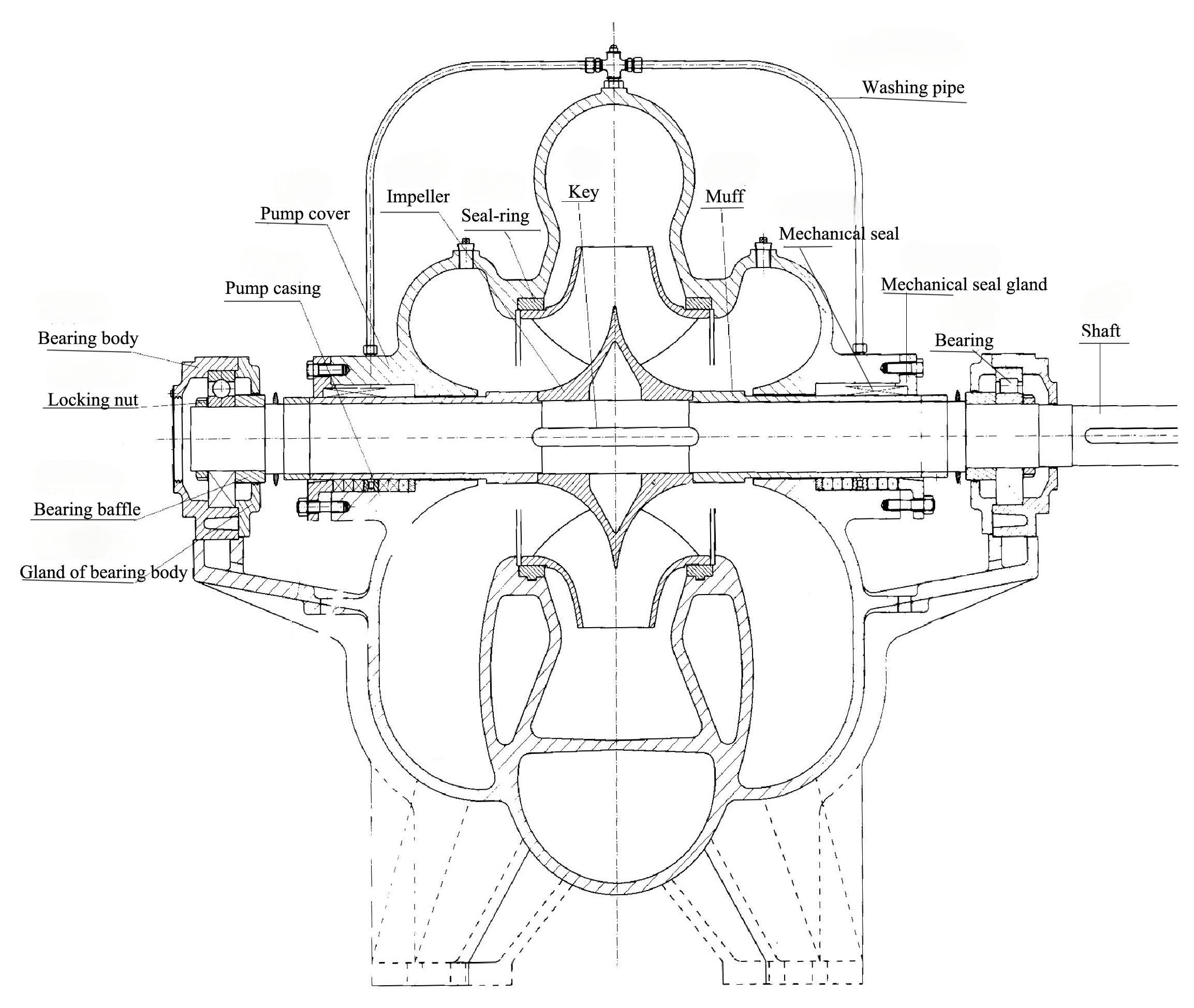

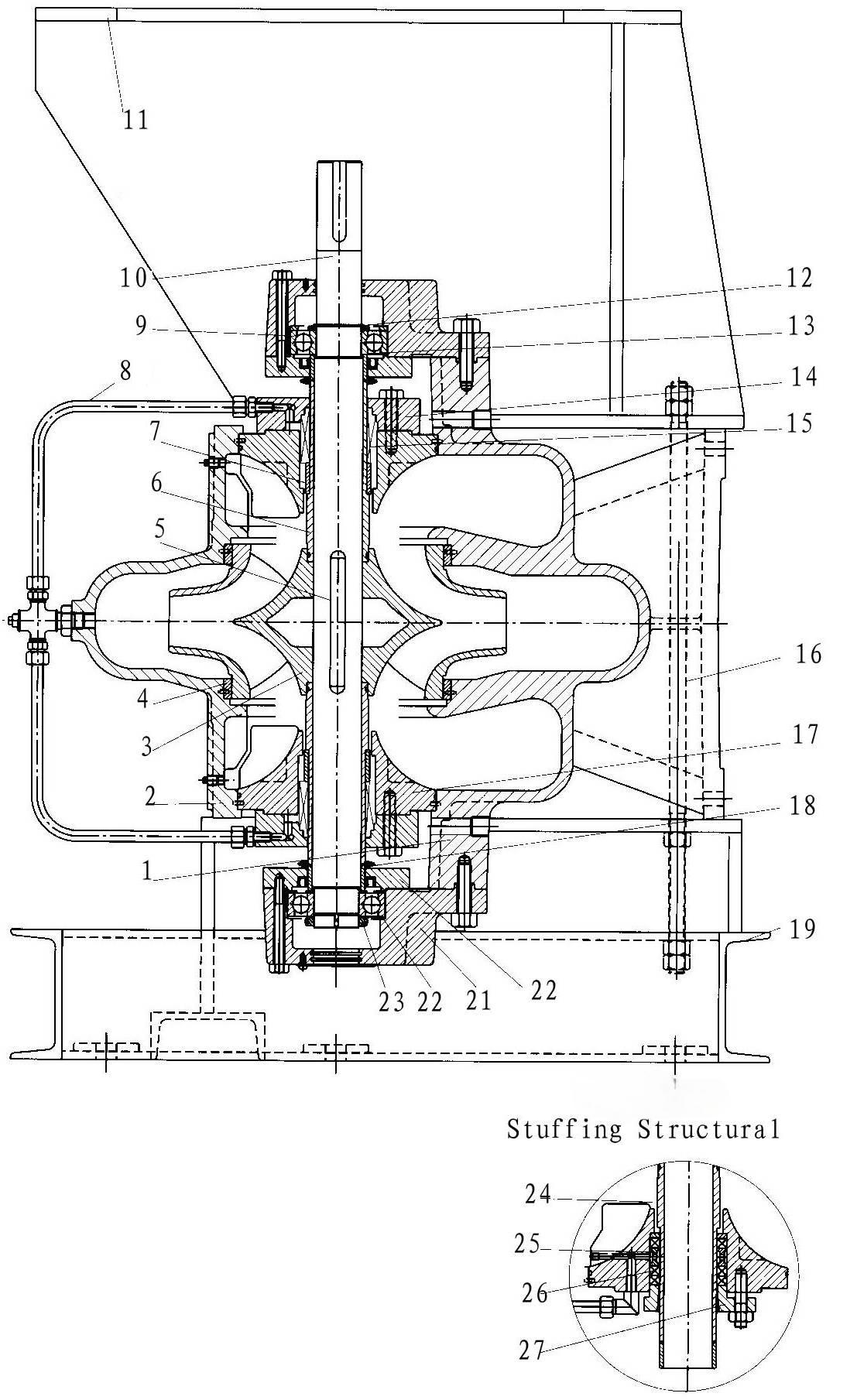

1.Pump casing 2.Pump cover 3.Impeller 4.Seal-ring 5.Key 6.Shaft sleeve 7.Mechanical baffle 8.Washing pipe 9.Bearing 10.Shaft 11.Frame 12.Check ring for shaft 13.Impeller nut

14.Bearing baffle 15.Mechanical seal 16.Tension bolt 21.Bearing body 22.Bearing washer 23.Locking nut 24.Stuffing baffle 25.Stuffing-ring 26.Stuffing 27.Stuffing gland

Performance Parameter

TSH/TS	50HZ					60HZ				50HZ/60HZ
Type	Capacity (m³/h)	Head (m)	Speed (rpm)	Motor power (kW)	Weight (kg)	Capacity (m³/h)	Head (m)	Speed (rpm)	Motor power (kW)	Efficiency (%)	HS (m)	Impeller dia. (mm)
6TSH-6 150TS-78	126	84	2900	55	165	151	121	3500	90	72	5	246
	162	78				194	112			74
	198	70				238	101			72
6TSH-6A 150TS-78A	112	67	2900	45	165	134	96	3500	75	68	5	222
	144	62				173	89			72
	180	55				216	79			70
6TSH-9 150TS-50	130	52	2900	37	155	156	75	3500	55	74	5	200
	180	46				216	66			79
	220	38				264	55			74
6TSH-9A 150TS-50A	122	44	2900	30	155	146	63	3500	45	71	5	186
	162	40				194	58			75
	198	35				238	50			73
6TSH-9B 150TS-50B	149	34	2900	22	155	179	49	3500	37	75	5	172
8TSH-6 200TS-95	180	100	2900	110	309	216	144	3500	200	69	4.5	275
	234	97				281	140			73.5
	288	80				346	115			75
8TSH-6A 200TS-95A	172	88	2900	90	306	206	127	3500	160	68	5.5	263
	224	83				269	120			73
	276	77				331	111			76
8TSH-6B 200TS-95B	213	76	2900	75	306	256	109	3500	110	73	5.5	251
8TSH-9 200TS-63	216	69	2900	75	242	259	99	3500	110	74	5.5	234
	288	63				346	90			79
	351	54				421	78			75
8TSH-9A 200TS-63A	180	55	2900	55	241	216	78	3500	90	67	5	211
	270	47				324	68			76
	324	40				389	58			72
8TSH-13 200TS-42	216	48	2900	45	195	259	69	3500	75	79	6.4	204
	288	42				346	60			82
	342	35				410	50			77
8TSH-13A 200TS-42A	198	43	2900	37	195	238	62	3500	55	76	5.8	193
	270	36				324	52			80
	310	31				372	45			76
8TSH-13B 200TS-42B	256	33	2900	30	195	307	48	3500	45	80	5.8	182
10TSH-6 250TS-65	360	71	1470	132	598	432	102	1770	200	70	4.5	470
	486	65				583	94			76.5
	612	56				734	81			74
10TSH-6A 250TS-65A	342	61	1470	110	596	410	88	1770	160	69	4	445
	468	54				562	78			75
	540	50				648	72			72
10TSH-9 250TS-39	360	43	1470	75	428	432	61	1770	110	75	4	367
	486	39				583	55			81
	612	33				734	47			80
10TSH-9A 250TS-39A	324	36	1470	55	428	389	51	1770	90	74	4	338
	468	31				562	44			80
	576	25				691	36			77
10TSH-13 250TS-24	360	27	1470	45	420	432	39	1770	75	80	4	296
	486	24				583	34			86
	576	19				691	27			82
10TSH-13A 250TS-24A	342	22	1470	37	419	410	32	1770	55	80	4	270
	414	20				497	29			83
	482	17				578	25			80
10TSH-19 250TS-14	360	18	1470	30	405	432	25	1770	45	79	6	240
	486	14				583	20			82
	576	11				691	16			76
10TSH-19A 250TS-14A	320	14	1470	22	404	384	20	1770	37	78	4	224
	432	11				518	16			82
	504	9				605	12			75
12TSH-6 300TS-90	590	98	1470	315	857	708	141	1770	400	74	5.5	540
	792	90				950	130			77.5
	936	82				1123	118			75
12TSH-6A 300TS-90A	576	86	1470	250	857	691	124	1770	350	71	5.3	510
	756	78				907	112			74
	918	70				1102	101			71
12TSH-6B 300TS-90B	540	72	1470	220	857	648	104	1770	315	70	5.1	475
	720	67				864	96			73
	900	57				1080	82			70
12TSH-9 300TS-58	576	65	1470	200	773	691	94	1770	315	80	4.5	435
	792	58				950	84			83.5
	972	50				1166	72			79
12TSH-9A 300TS-58A	530	55	1470	160	770	636	79	1770	250	80	5.5	402
	720	49				864	71			83
	893	42				1072	60			78
12TSH-9B 300TS-58B	504	47	1470	132	770	605	68	1770	200	70	5.5	378
	684	43				821	62			82
	835	37				1002	53			78
12TSH-13 300TS-32	612	36	1470	110	709	734	52	1770	160	80	5.5	352
	792	32				950	46			83.5
	900	30				1080	42			82.2
12TSH-13A 300TS-32A	551	30	1470	75	709	661	43	1770	110	79.3	5.5	322
	720	26				864	37			82.5
	810	24				972	35			80.5
12TSH-19 300TS-19	612	23	1470	55	478	734	33	1770	90	80	5.5	290
	792	19				950	28			82
	935	14				1122	20			75
12TSH-19A 300TS-19A	504	20	1470	45	477	605	29	1770	75	79	5.5	265
	720	16				864	23			82
	900	12				1080	17			75
12TSH-28 300TS-12	612	15	1470	37	472	734	21	1770	55	80	5.5	248
	792	12				950	17			81
	900	10				1080	14			74
12TSH-28A 300TS-12A	522	12	1470	30	472	626	17	1770	45	72	5.5	248
	684	10				821	14			77
	792	9				950	13			74
14TSH-6 350TS-125	850	135	1470	710	1500	1020	194	1770	1100	67	6.5	615
	1250	125				1500	180			74.5
	1660	100				1992	144			70
14TSH-6A 350TS-125A	803	125	1470	630	1500	964	180	1770	1000	70	6.5	580
	1180	112				1416	161			75
	1570	90				1884	130			68.5
14TSH-6B 350TS-125B	745	108	1470	500	1500	894	156	1770	800	69	6.5	545
	1100	96				1320	138			74
	1460	77				1752	111			70
14TSH-19 350TS-75	972	80	1470	400	1200	1166	115	1770	600	77	6.5	500
	1260	75				1512	108			80
	1440	65				1728	94			79
14TSH-9A 350TS-75A	900	70	1470	280	1200	1080	101	1770	400	75	6.5	465
	1170	65				1404	94			79
	1330	56				1596	81			77
14TSH-9B 350TS-75B	828	59	1470	250	1200	994	85	1770	350	73	6.5	448
	1080	55				1296	79			78
	1225	48				1470	68			75
14TSH-13 350TS-44	972	49	1450	220	1000	1166	70	1800	315	81	6.5	410
	1260	42				1512	60			84
	1476	35				1771	50			79
14TSH-13A 350TS-44A	864	42	1450	160	1000	1037	60	1800	250	80	6.5	380
	1116	37				1339	53			84
	1332	32				1598	45			80
14TSH-19 350TS-26	972	32	1450	132	898	1166	46	1800	200	85	6.5	350
	1260	26				1512	37			88
	1440	22				1728	32			82
14TSH-19A 350TS-26A	864	26	1450	90	898	1037	37	1800	132	80	6.5	326
	1116	22				1339	31			85
	1296	17				1555	24			73
14TSH-28 350TS-16	972	19	1450	75	760	1166	28	1800	110	80	6.5	290
	1260	15				1512	22			81
	1440	12				1728	18			74
14TSH-28A 350TS-16A	864	16	1450	75	760	1037	23	1800	110	74	6.5	270
	1044	13				1253	19			78
	1260	10				1512	14			70
16TSH-9 400TS-62	1200	68	1450	355	1910	1440	98	1800	500	79	6	470
	1500	62				1800	89			85
	1800	50				2160	72			80
16TSH-9 400TS-62A	1130	62	1450	280	1910	1356	89	1800	400	78	6	450
	1435	57				1722	82			84
	1700	46				2040	66			79
20TSH-6 500TS-98	1450	108	970	800	4324	1740	155	1170	1100	72.5	6	860
	2016	99				2419	142			79.5
	2300	89				2760	128			76
20TSH-6A 500TS-98A	1349	93	970	630	4320	1619	134	1170	100	70	6.4	800
	1870	85				2244	122			77
	2140	77				2568	111			74
20TSH-9 500TS-59	1550	66	970	500	2747	1860	95	1170	800	82	6	682
	2016	59				2419	85			83
	2450	50				2940	72			77
20TSH-9A 500TS-59A	1405	58	970	400	2740	1686	84	1170	600	74	6	640
	1910	50				2292	72			75
	2270	42				2724	60			72
20TSH-9B 500TS-59B	1763	42	970	315	2735	2116	60	1170	500	74	6	600
20TSH-13 500TS-35	1550	40	970	280	2340	1860	58	1170	400	82	6	550
	2016	35				2419	51			88
	2410	30				2892	43			80
20TSH-13A 500TS-35A	1870	31	970	200	2330	2244	45	1170	315	85	6	510
20TSH-19 500TS-22	1620	27	970	185	1950	1944	39	1170	315	80	6	465
	2016	22				2419	32			82
	2340	15				2808	22			70
20TSH-19A 500TS-22A	1296	23	970	132	1946	1555	33	1170	200	73	6	427
	1870	17				2244	24			80
	2016	14				2419	20			76
20TSH-28 500TS-13	1620	15	970	110	1887	1944	22	1170	160	77	6	390
	2016	13				2419	18			80
	2325	11				2790	15			77
24TSH-9 600TS-75	3420	71	970	800	3780	4104	102	1170		91	8.7	765
24TSH-9A 600TS-75A	3168	61	970	630	3770	3802	88	1170		90	7.5	710
24TSH-13 600TS-47	2502	56	970	560	3780	3002	81	1170		83	7.5	630
	3168	47				3802	68			88
	3499	38				4199	55			80
24TSH-19 600TS-32	2520	37	970	355	2220	3024	53	1170		86	7.5	540
	3168	32				3802	46			89
	3960	22				4752	32			85
24TSH-19A 600TS-32A	2304	32	970	280	2220	2765	45	1170		84	7.5	500
	2880	27				3456	39			89
	3600	20				4320	29			85
24TSH-28 600TS-22	2340	24	970	220	2180	2808	34	1170		80	7.5	450
	2880	21				3456	30			84.5
	3420	18				4104	26			81
32TSH-19 800TS-32	4700	35	730	630	4557	5640	50	880		78	6.5	740
	5500	33				6600	47			84
	6010	29				7212	42			83.5
	6460	25				7752	37			80.4
32TSH-19A 800TS-32A	4550	31	730	560	4548	5460	45	880		78	6.5	715
	5310	29				6372	42			84
	5800	27				6960	38			83.5
	6250	23				7500	33			80.4
