ZCQ Series Self-Priming Magnetic Drive Pump
Date：2025-04-10Views：
ZCQ Series Self-Priming Magnetic Drive Pump
Overview
The ZCQ-type self-priming magnetic drive pump (hereafter "self-priming pump") replaces dynamic seals with static seals, fully sealing wetted components and eliminating leaks (common in mechanical seals). Constructed from corrosion-resistant materials like stainless steel, alumina ceramic, and PTFE graphite, it combines the functions of CQ magnetic pumps with self-priming capability, requiring no foot valve or priming water, with a self-priming height of 4 meters.
Features: Compact structure, low noise, reliable operation, and easy maintenance. Widely used in petroleum, chemical, pharmaceutical, and electroplating industries for transporting acids, alkalis, oils, rare liquids, toxic fluids, and volatile substances—ideal for leak-prone, flammable, or explosive media.
Model Explanation: ZCQ32-25-145
ZCQ: Self-Priming Magnetic Drive Pump
32: Inlet Diameter (mm)
25: Outlet Diameter (mm)
145: Impeller Diameter (mm)

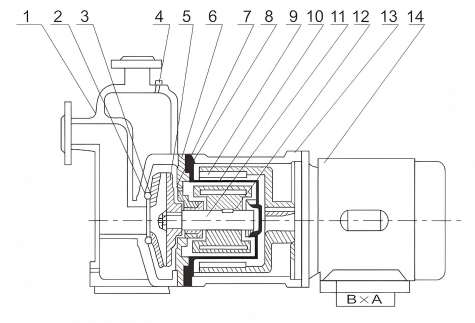

Structural Specifications
1.Pump Casing;2.Stationary Ring;3.Rotating Ring;4.Filling Bolt;5.Impeller;6.Sealing Ring;7.Partition;8.Isolation Layer;9.External Magnetic Assembly;10.Internal Magnetic Assembly;11.Pump Shaft;12.Shaft Sleeve;13.Connecting Frame;14.Motor.
Performance Parameters
Model
| Dia.(mm) | Head (m) | Capacity (L/min) | Power (kW) | Speed (r/min) | Voltage (V) | Suction height （m） | |
Inlet | Outlet | |||||||
ZCQ25-20-115 | 25 | 20 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
ZCQ32-25-115 | 32 | 25 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
ZCQ32-25-145 | 32 | 25 | 25 | 110 | 1.1 | 2900 | 380 | 4 |
ZCQ40-32-132 | 40 | 32 | 20 | 180 | 2.2 | 2900 | 380 | 4 |
ZCQ40-32-160 | 40 | 32 | 32 | 180 | 4 | 2900 | 380 | 4 |
ZCQ50-40-145 | 50 | 40 | 25 | 240 | 4 | 2900 | 380 | 4 |
ZCQ50-40-160 | 50 | 40 | 32 | 220 | 4 | 2900 | 380 | 4 |
ZCQ65-50-145 | 65 | 50 | 25 | 280 | 5.5 | 2900 | 380 | 4 |
ZCQ65-50-160 | 65 | 50 | 32 | 450 | 7.5 | 2900 | 380 | 4 |
ZCQ80-65-125 | 80 | 65 | 20 | 800 | 7.5 | 2900 | 380 | 4 |
ZCQ80-65-160 | 80 | 65 | 32 | 800 | 15 | 2900 | 380 | 4 |
ZCQ100-80-160 | 100 | 80 | 32 | 1500 | 22 | 2900 | 380 | 4 |
Note: Pump casing material: Stainless steel (1Cr18Ni9Ti).
