CQX Marine Drainage Submersible Sewage Pump
Date：2025-03-07Views：
CQX Marine Drainage Submersible Sewage Pump
Overview
CQX Series submersible pump is mainly used for emergency rescue ships, pumping water with cabin. CQW Series submersible drainage pump is widely used in municipal, pumping stations, construction and other industries with solid and all kinds of long fiber of silt, waste water, city life sewage discharge processing, at the same time is applied to biogas digesters in rural areas, rural irrigation, water plant water supply and sewage device.
Model Explanation CQXD(W)25-8-22-1.1
CQX—Marine submerged motor pump
25—Inlet and outlet diameter 25mm
D—Diphase
W—Pollution discharge
8—Flow 8m3/h
22—Head 22m
1.1—Motor power 1.1kW

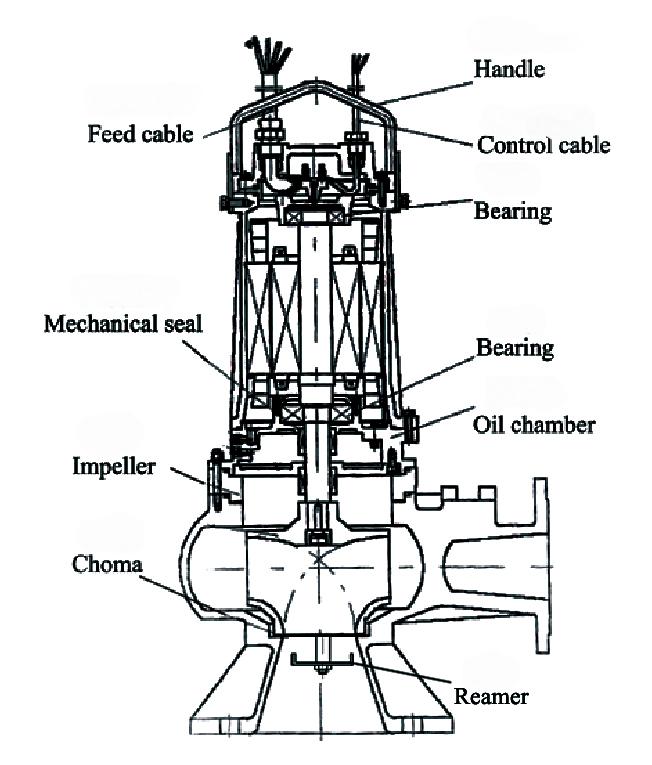

Structural Specifications
Performance Parameter （50HZ/380V）
Type CQX | Capacity (m3/h) | Head (m) | Speed (rpm) | Capacity scope (m3/h) | Power (kw) | Weight (kg) | Type CQX | Capacity (m3/h) | Head (m) | Speed (rpm) | Capacity scope (m3/h) | Power (kw) | Weight (kg) |
40-8.4-40-2.2 | 8.4 | 40 | 2860 | 6-10 | 2.2 | 45 | 128-160-4-3 | 160 | 4 | 2860 | 112-192 | 3 | 43 |
40-15-26-2.2 | 15 | 26 | 2860 | 10-18 | 2.2 | 49 | 40-12.5-50-4 | 12.5 | 50 | 2860 | 8-15 | 4 | 59 |
50-25-17-2.2 | 25 | 17 | 2860 | 17-30 | 2.2 | 41 | 50-25-32-4 | 25 | 32 | 2860 | 17-30 | 4 | 57 |
100-65-7-2.2 | 65 | 7 | 2860 | 45-78 | 2.2 | 41 | 65-40-21-4 | 40 | 21 | 2860 | 28-48 | 4 | 54 |
128-100-4.5-2.2 | 100 | 4.5 | 2860 | 70-120 | 2.2 | 38 | 100-65-13-4 | 65 | 13 | 2860 | 45-78 | 4 | 51 |
40-8.4-50-3 | 8.4 | 50 | 2860 | 6-10 | 3 | 47 | 150-200-4-4 | 200 | 4 | 2860 | 140-240 | 4 | 52 |
40-12.5-40-3 | 12.5 | 40 | 2860 | 8-15 | 3 | 47 | 50-20-50-5.5 | 20 | 50 | 2860 | 14-24 | 5.5 | 75 |
40-15-36-3 | 15 | 36 | 2860 | 10-18 | 3 | 46 | 50-25-40-5.5 | 25 | 40 | 2860 | 17-30 | 5.5 | 76 |
40-20-30-3 | 20 | 30 | 2860 | 14-24 | 3 | 48 | 65-40-28-5.5 | 40 | 28 | 2860 | 28-48 | 5.5 | 83 |
50-25-26-3 | 25 | 26 | 2860 | 17-30 | 3 | 46 | 125-100-12-5.5 | 100 | 12 | 2860 | 70-120 | 5.5 | 65 |
65-40-16-3 | 40 | 16 | 2860 | 28-48 | 3 | 47 | 65-40-40-7.5 | 40 | 40 | 2860 | 28-48 | 7.5 | 105 |
100-65-10-3 | 65 | 10 | 2860 | 45-78 | 3 | 45 | 80-65-26-7.5 | 65 | 26 | 2860 | 45-78 | 7.5 | 101 |
128-100-6-3 | 100 | 6 | 2860 | 70-120 | 3 | 48 | 150-200-9-7.5 | 200 | 9 | 2860 | 140-240 | 7.5 | 100 |
Type CQX (W) | Capacity (m3/h) | Head (m) | Speed (rpm) | Power (kW) | Efficiency (%) | Type CQX (W) | Capacity (m3/h) | Head (m) | Speed (rpm) | Power (kW) | Efficiency (%) |
25-8-22-1.1 | 8 | 22 | 2820 | 1.1 | 38.1 | 200-300-7-11 | 300 | 7 | 970 | 11 | 73 |
32-12-15-1.1 | 12 | 15 | 2820 | 1.1 | 40 | 200-250-11-15 | 250 | 11 | 970 | 15 | 74 |
40-15-15-1.5 | 15 | 15 | 2840 | 1.5 | 45.1 | 200-400-10-22 | 400 | 10 | 1470 | 22 | 76 |
40-15-30-2.2 | 15 | 30 | 2840 | 2.2 | 48 | 200-400-13-30 | 400 | 13 | 1470 | 30 | 73 |
50-20-7-0.75 | 20 | 7 | 1390 | 0.75 | 54 | 200-250-15-18.5 | 250 | 15 | 1470 | 18.5 | 72 |
50-10-10-0.75 | 10 | 10 | 1390 | 0.75 | 56 | 200-300-15-22 | 300 | 15 | 1470 | 22 | 73 |
50-20-15-1.5 | 20 | 15 | 2840 | 1.5 | 55 | 200-250-22-30 | 250 | 22 | 1470 | 30 | 71 |
50-15-25-2.2 | 15 | 25 | 2840 | 2.2 | 56 | 200-350-25-37 | 350 | 25 | 1980 | 37 | 75 |
50-18-30-3 | 18 | 30 | 2880 | 3 | 58 | 200-400-30-45 | 400 | 30 | 1480 | 45 | 70 |
50-25-32-5.5 | 25 | 32 | 2900 | 5.5 | 53 | 250-600-9-30 | 600 | 9 | 980 | 30 | 74 |
50-20-40-7.5 | 20 | 40 | 2900 | 7.5 | 55 | 250-600-12-37 | 600 | 12 | 1480 | 37 | 78 |
65-35-50-11 | 35 | 50 | 2930 | 11 | 60 | 250-600-15-45 | 600 | 15 | 1480 | 45 | 75 |
65-35-60-15 | 35 | 60 | 2930 | 15 | 63 | 250-600-20-55 | 600 | 20 | 1480 | 55 | 73 |
80-40-7-2.2 | 40 | 7 | 1420 | 2.2 | 52 | 250-600-25-75 | 600 | 25 | 1480 | 75 | 73 |
80-43-13-3 | 43 | 13 | 2880 | 3 | 50 | 250-800-12-45 | 800 | 12 | 980 | 45 | 76 |
80-40-15-4 | 40 | 15 | 2890 | 4 | 57 | 300-500-15-45 | 500 | 15 | 980 | 45 | 70 |
80-65-25-7.5 | 65 | 25 | 2900 | 7.5 | 56 | 300-800-15-55 | 800 | 15 | 980 | 55 | 73 |
100-80-10-4 | 80 | 10 | 1440 | 4 | 62 | 300-600-20-55 | 600 | 20 | 980 | 55 | 75 |
100-110-10-5.5 | 110 | 10 | 1440 | 5.5 | 66 | 300-800-20-75 | 800 | 20 | 980 | 75 | 78 |
100-100-15-7.5 | 100 | 15 | 1440 | 7.5 | 67 | 300-950-20-90 | 950 | 20 | 980 | 90 | 80 |
100-85-20-7.5 | 85 | 20 | 1440 | 7.5 | 68 | 300-1000-25-110 | 1000 | 25 | 980 | 110 | 82 |
100-100-25-11 | 100 | 25 | 1460 | 11 | 65 | 350-1100-10-55 | 1100 | 10 | 980 | 55 | 84.5 |
100-100-30-15 | 100 | 30 | 1460 | 15 | 66 | 350-1500-15-90 | 1500 | 15 | 980 | 90 | 82.5 |
100-35-18.5 | 100 | 35 | 1470 | 18.5 | 65 | 350-1200-18-90 | 1200 | 18 | 980 | 90 | 83.1 |
125-130-15-11 | 130 | 15 | 1460 | 11 | 62 | 350-1100-28-132 | 1100 | 28 | 740 | 132 | 83.2 |
125-130-20-15 | 130 | 20 | 1460 | 15 | 63 | 350-1000-36-160 | 1000 | 36 | 740 | 160 | 78.5 |
150-145-9-7.5 | 145 | 9 | 1440 | 7.5 | 63 | 400-1500-10-75 | 1500 | 10 | 980 | 75 | 82.1 |
150-180-15-15 | 180 | 15 | 1460 | 15 | 65 | 400-2000-15-132 | 2000 | 15 | 740 | 132 | 85.5 |
150-180-20-18.5 | 180 | 20 | 1470 | 18.5 | 75 | 400-1700-22-160 | 1700 | 22 | 740 | 160 | 82.1 |
150-180-25-22 | 180 | 25 | 1470 | 22 | 76 | 400-1500-26-160 | 1500 | 26 | 740 | 160 | 83.5 |
150-130-30-22 | 130 | 30 | 1470 | 22 | 75 | 400-1700-30-200 | 1700 | 30 | 740 | 200 | 83.5 |
150-180-30-30 | 180 | 30 | 1470 | 30 | 73 | 400-1800-32-250 | 1800 | 32 | 740 | 250 | 82.1 |
150-200-30-37 | 200 | 30 | 1480 | 37 | 70 |

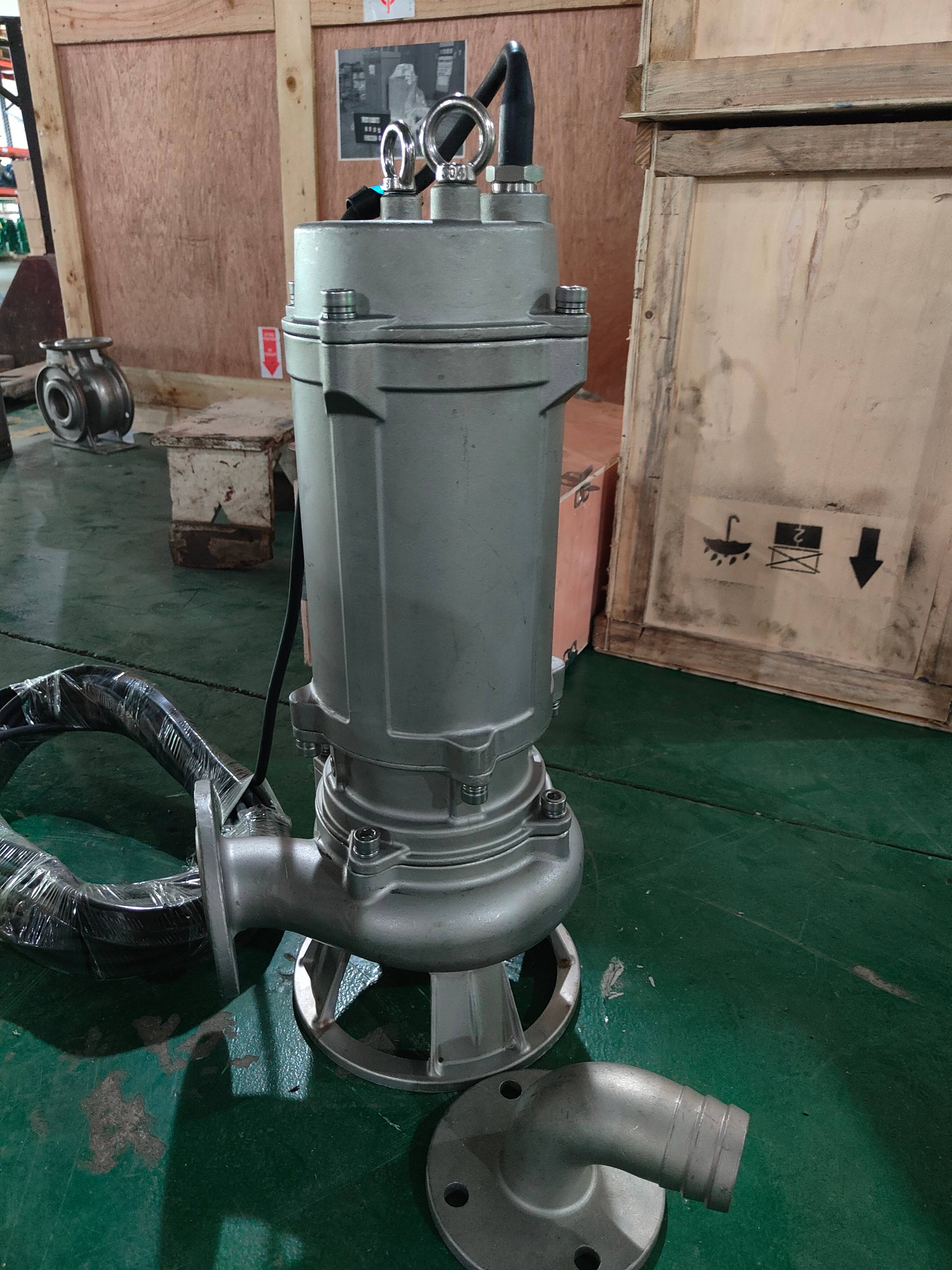

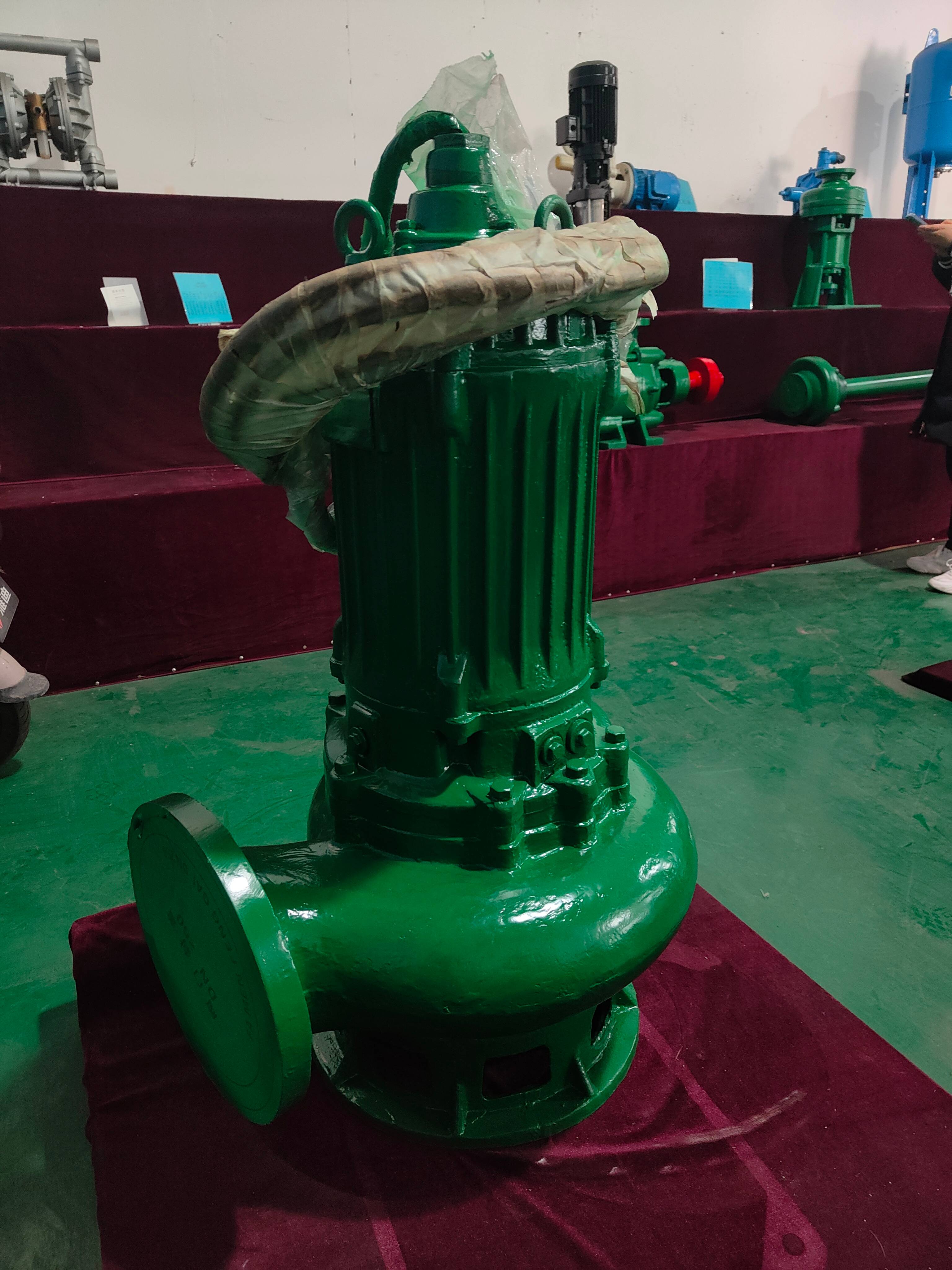

The picture of pump
.jpg "IMG20211229111839(1).jpg")
.jpg "IMG20220524092313(1).jpg")
